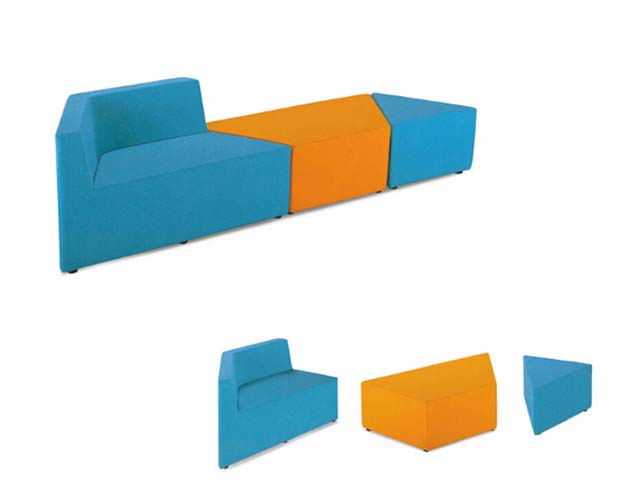

3-Piece Colorblock Modular Fabric Lounge Seating Set (model MLS-3PC-BLOR-01) is listed under Fabric Office Sofa, with overall dimensions of 2450 × 750 × 740 mm and main material of Fabric. Load capacity: 272 kg. Certifications: modular,construction,fabric,upholstery,colorblock,design,armless,seating,low-profile,block,form. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2450 x 750 x 740 mm | |
|---|---|---|
| Armless backrest unit dimensions | 820 x 750 x 740 mm | |
| Central trapezoidal bench unit dimensions | 820 x 750 x 460 mm | |
| Angled wedge end unit dimensions | 810 x 750 x 460 mm | |
| Seat height from floor | 460 mm | |
| Backrest height above seat | 280 mm | |
| Base glide height | 80 mm | |
| Seat depth per module | 600 mm | |
| Seat width per module | 800 mm | |
| Wedge unit front edge angle | 60 degrees | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Weight capacity per seating unit | 181 kg | |
|---|---|---|
| Total set net weight | 114 kg | |
| Fabric abrasion resistance | 50000 double rubs | |
| Foam density (seat) | 40 kg/m³ | |
| Foam rebound rate | 60% | |
| Seam stitch pitch | 3 mm | |
| Structural frame static load rating | 272 kg | |
| Product warranty (frame) | 12 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 100% solution-dyed polyester fabric, stain-resistant easy-clean finish | |
|---|---|---|
| Seat cushion core | 40kg/m³ high resilience polyurethane foam, CA TB117 compliant fire retardant | |
| Internal frame | 19mm thick commercial plywood with corner blocking, no exposed hardware | |
| Floor contact glides | Injection-molded plastic non-marring glides, fixed height | |
| Backrest padding | 30kg/m³ polyurethane foam wrapped with polyester fiber layer | |
| Module connection edges | Straight mated upholstered edges, optional hidden bolt connectors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Tool-free reconfiguration into linear, clustered or terminated layouts via flush mating edges | |
|---|---|---|
| Floor protection | Fixed non-marring plastic glides prevent scuffing on hard floor surfaces | |
| Upholstery maintenance | Spot-cleanable performance fabric resists common stains in public waiting areas | |
| Fixed seating position | No recline, swivel or adjustable features; static low-profile casual lounge seating |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office lobby/reception areas | Configurable casual seating for waiting visitors with color-coded visual interest | |
|---|---|---|
| Breakout/collaboration spaces | Flexible low-profile seating for informal team gatherings and impromptu meetings |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable for commercial use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability resistance to smoldering cigarette ignition |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2022 | Standard for lounge seating, covering strength, durability and stability for public spaces | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame and structural integrity | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, irrelevant for fabric but reference for textile limits | |
| GB/T 19817-2005 | Upholstered furniture fabric performance requirements for abrasion and colorfastness |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural integrity; 2. GB 20400-2006: Limit of harmful substances in leather and fur, irrelevant for fabric but reference for textile limits; 3. GB/T 19817-2005: Upholstered furniture fabric performance requirements for abrasion and colorfastness; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
