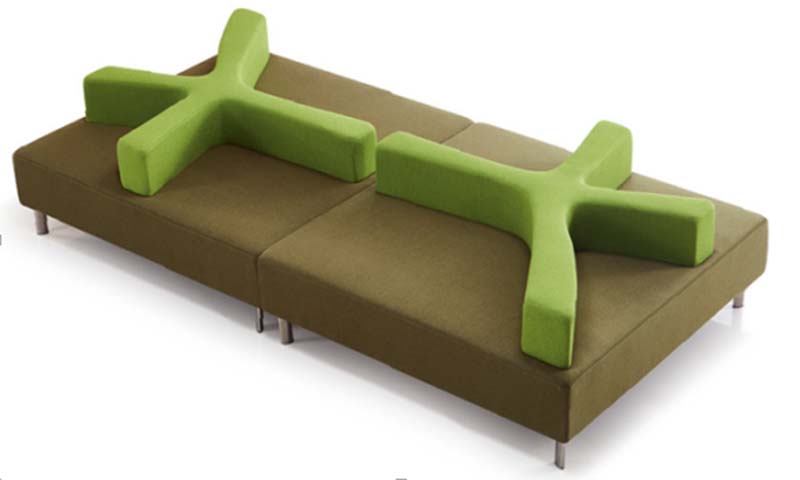

Modular X-Shaped Divider Lounge Sofa (model MOD-LOU-X02) is listed under Fabric Office Sofa, with overall dimensions of 2400 × 1000 × 380 mm and main material of Fabric. Load capacity: 200 kg. Certifications: Modular,seating,two-tone,fabric,low-profile,lounge. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1000 x 380 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 95 kg | |
|---|---|---|
| Per-seat static load capacity | 200 kg | |
| Seating capacity | 4 | |
| Fabric abrasion resistance | 50000 cycles | |
| Foam density (seat cushions) | 40 kg/m³ | |
| Module connection static shear strength | 300 kg | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Olive green woven polyester fabric | |
|---|---|---|
| Divider upholstery | Lime green woven polyester fabric | |
| Seat cushion core | High-density polyurethane foam | |
| Internal frame | Kiln-dried hardwood and plywood frame | |
| Support legs | Polished chrome-plated steel | |
| Module connectors | Powder-coated steel brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Bi-directional seating | X-shaped dividers create independent seating positions facing both long edges of the sofa | |
|---|---|---|
| Modular connection | Adjacent seat units join with hidden under-seat metal brackets to form extended linear configurations | |
| Fixed divider position | Upholstered X dividers are permanently mounted to seat bases to act as armrests and back supports | |
| Floor protection | Metal legs include integrated felt glides to prevent hard floor scratching |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office breakout spaces | Suitable for casual collaborative or rest areas in commercial offices, providing flexible dual-facing seating | |
|---|---|---|
| Public waiting areas | Appropriate for lobby, gallery or educational facility waiting zones with high-traffic use |
EU Market Access Requirements* EN Standards
| Domestic furniture seating safety | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flammability | EN 1021:2014 |
US and Canada office-furniture standards
| Lounge seating performance | ANSI/BIFMA X2022 |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety | GB 20400 | |
|---|---|---|
| Furniture mechanical performance | GB/T 3324 |
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 20400; 2. Furniture mechanical performance: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
