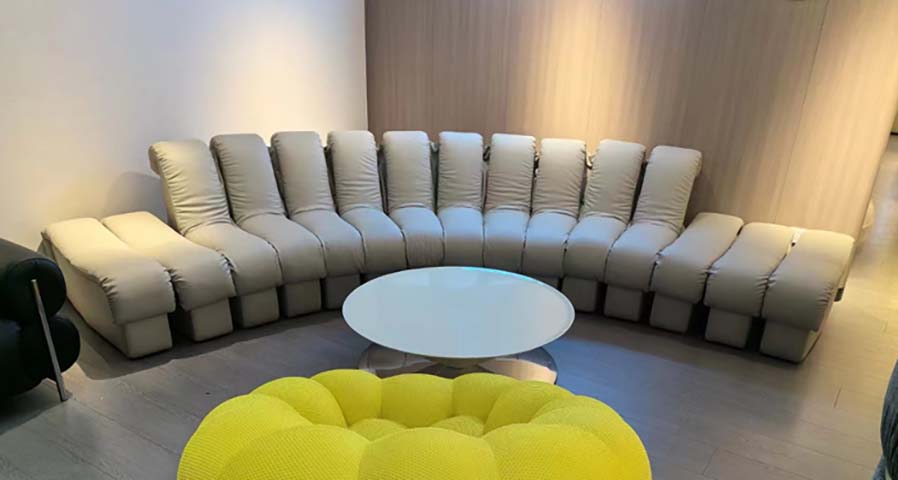

Name: Light Beige Curved Segmented Modular Sectional Sofa
Brand: JUESHANGDA
SKU: 3BELNN

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4500 × 1050 × 760 mm
Overall assembled dimensions (arc length x depth x height)	4500 x 1050 x 760 mm
Single seating module width	650 mm
Single end ottoman/chaise module width	560 mm
Single module depth (seating units)	1050 mm
Seat height from floor	420 mm
Seat depth per seating module	700 mm
Backrest height above seat	340 mm
Armrest height (end modules)	420 mm
Seat cushion thickness	200 mm
Backrest cushion thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall product net weight	290 kg
Per-seat static load capacity	150 kg
Seat foam density	32D
Fabric abrasion resistance (Martindale)	40000 cycles
Seat firmness rating	Medium-soft
Standard warranty period for residential use	3 years
Available color finish count	8
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	380gsm matte woven polyester fabric
Seat core filling	32D high-resilience polyurethane foam
Backrest core filling	28D polyurethane foam
Internal support frame	Kiln-dried solid hardwood frame
Seat support system	80mm wide elastic webbing
Support feet	Solid rubberwood block feet
Module connection hardware	Heavy-duty zinc-plated steel zipper and clip connectors
Seam construction	Reinforced polyester stitching
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration capability	Tool-free reconfiguration into straight, L-shape, U-shape or custom arcs
End chaise extension function	3 armless ottoman modules per end form extended lounge seating
Floor protection design	Felt pads pre-installed on bottom of each block foot
Seat ergonomics	Slightly tilted seat angle of 5 degrees
Backrest support angle	Fixed 100 degree upright backrest angle
Cleaning and maintenance	Spot-cleanable fabric upholstery with stain-repellent surface treatment
Narrow hallway delivery compatibility	Individual modules pass through 700mm wide doorways
Block foot height	100 mm
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large open-plan residential living rooms	Serves as statement curved seating for 10 guests in luxury home settings
High-end commercial lounge areas	Suitable for hotel lobbies, VIP reception areas and designer office break zones
Open event and exhibition spaces	Flexible curved layout supports audience seating for launches and private events
Home theater lounge rooms	Extended end chaises support relaxed viewing positions for media consumption
Designer furniture showrooms	Curved silhouette acts as focal display piece for contemporary upholstery collections
Penthouse and duplex common areas	Scaled for large open floor plans with generous circulation space around seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture - Strength, durability and safety for domestic seating, applies to residential use load testing
EN 1021-1:2014	Furniture - Assessment of ignitability of upholstered furniture (smoldering cigarette), applies to fire safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applies to internal hardwood frame durabilityAcceptance
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture, applies to formaldehyde emission limits
GB/T 19822-2005	Furniture mechanical performance test for seating, applies to static load and durability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to internal hardwood frame durabilityAcceptance;
2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applies to formaldehyde emission limits;
3. GB/T 19822-2005: Furniture mechanical performance test for seating, applies to static load and durability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MS-CRV-16M-LB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MS-CRV-16M-LB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MS-CRV-16M-LBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The JUESHANGDA Light Beige Curved Segmented Modular Sectional Sofa, model MS-CRV-16M-LB, delivers a sleek contemporary lounge seating solution defined by its soft curved silhouette and segmented, fully reconfigurable structure. Its flowing arc form is constructed from individual seating and end ottoman modules, creating a cohesive, inviting profile that serves as a deliberate visual focal point without sharp, angular edges. When fully assembled, the unit reaches an overall arc length, depth and height of 4500 x 1050 x 760 mm, with a 420 mm seat height, 340 mm backrest height above the seat, and matching 420 mm armrest height on end modules to support relaxed, upright lounging postures. The sofa is built with a kiln-dried solid hardwood internal frame with primary sections sized to 30 × 50 mm at 12% recommended moisture content, supported by solid rubberwood block feet fitted with pre-installed felt pads to protect finished flooring. The 80mm wide elastic webbing seat support system underpins cushions filled with 32D high-resilience polyurethane foam for a medium-soft seat feel, paired with 28D polyurethane foam backrests, all upholstered in 380gsm matte woven polyester fabric treated with a stain-repellent finish that offers 40000 Martindale cycles of abrasion resistance. Reinforced polyester stitching and heavy-duty zinc-plated steel zipper and clip connectors secure modules together, while allowing tool-free reconfiguration into straight, L-shape, U-shape, or custom arc layouts; three armless ottoman modules per end extend to form chaise lounge seating. Individual modules fit through 700mm wide doorways for narrow hallway delivery, with a 40-minute reference assembly time, 290 kg net weight, and 150 kg per-seat static load capacity. The 5-degree slightly tilted seat angle and fixed 100-degree backrest angle support ergonomic comfort, with spot-cleanable upholstery for simple maintenance, 8 available color finishes, and a 3-year standard residential warranty. The sofa is ideally suited for large open-plan residential living rooms seating 10 guests, high-end hotel lobbies and VIP reception zones, designer office break areas, home theater lounges, open event and exhibition spaces, penthouse common areas, and designer furniture showrooms as a statement display piece. Procurement teams should note the 2-carton packaging, 110 kg per-carton gross weight, and 1.8 m³ total packaging volume to plan delivery, storage, and installation logistics appropriately for large-format commercial or residential spaces.

Light Beige Curved Segmented Modular Sectional Sofa Specifications
