LOU-MOD-8S-2T-RED

Code:3NSERDV1
Request supplier quotes

Modular 8-Shaped Collaborative Lounge Seating with Integrated Side Tables Key Specifications 2026-08-06 11:42

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

LOU-MOD-8S-2T-RED

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (L x W x Seat Height)3200 x 1500 x 430 mm
Seating surface depth per curved segment800 mm
Left circular seat outer diameter1400 mm
Right circular seat outer diameter1400 mm
Central open cutout inner diameter (left unit)600 mm
Integrated side table top dimensions600 x 450 mm
Side table surface height above floor720 mm
Seating plinth total thickness430 mm
Table support leg diameter25 mm
Floor glide diameter30 mm
Connecting joint width between two seat modules600 mm
Upholstery fabric thickness1.2 mm
Table top edge thickness18 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total product net weight125 kg
Seating surface static load capacity per linear meter300 kg
Maximum number of seated users8
Fabric abrasion resistance (Martindale)50000 cycles
Foam compression set resistance40 %
Floor glide static load rating per unit80 kg
Product service life recommendation8 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seating outer upholstery100% polyester woven fabric, matte red finish, 380 gsm weight
Seat core paddingHigh-resilience polyurethane foam, 420 mm total thickness, 35 kg/m³ density
Internal seat frame18 mm thick CARB P2 grade engineered plywood frame
Base bottom layerBlack non-woven fabric backing with thermoplastic edge trim
Side table top18 mm thick white high-pressure laminate (HPL) surface on particleboard core
Table support frames25 mm diameter chrome-plated mild steel tubular legs, 1.2 mm wall thickness
Floor levelersChrome-plated steel adjustable screw glides with nylon contact pad
Module connecting hardwareZinc-plated steel interlocking bracket set between two seat segments
Table base crossbarChrome-plated flat steel footrest bar under each side table
Cutout interior liningMatching red polyester fabric lining on inner surface of central open void
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular two-segment connectionTwo interlocking curved seat units join to form a continuous 8-shaped seating loop, with hidden brackets to prevent separation during use
Integrated work surfacesTwo angular white side tables mount directly to the seat plinth at two seated positions, providing stable flat space for laptops, documents, or refreshments without separate furniture
Central open storage voidA 600 mm diameter circular cutout in the left seat segment provides an open recess to hold reading materials, personal items, or decorative planters
Floor leveling adjustmentScrew-in glides under the entire base allow up to 10 mm of height adjustment to compensate for uneven floors and prevent wobble
Flexible seating orientationContinuous curved perimeter allows users to face inward for group discussion or outward for individual relaxed seating, no fixed backrests to restrict position
Non-slip floor protectionNylon contact pads on all glides prevent scratching hard floor surfaces and eliminate sliding during use
Reconfigurable layout potentialModular connection brackets allow separation of the two seat units for alternate linear or separated arrangements in different space layouts
Integrated footrest supportHorizontal chrome crossbars under each side table provide a raised footrest surface for seated users at table positions, with 100 kg static load capacity per bar
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages3
Largest carton dimensions (L x W x H)1450 x 1450 x 460 mm
Total shipping gross weight150 kg
Total shipping volume (CBM)2.1
Assembly time on site40 minutes
20ft GP container loading quantity12 sets
40ft HQ container loading quantity30 sets
Packaging protection5 mm thick EPE foam wrap + 5-layer corrugated carton + corner protection
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office collaborative breakout zonesProvides informal flexible seating for team brainstorming, quick meetings or casual individual work in open office environments, with integrated tables for device and document support
Educational institution common areasSuits university lobbies, library lounges and student collaboration spaces, accommodating small groups for discussion or individual study
Public reception and waiting areasFunctions as a statement seating piece in corporate lobbies, gallery spaces or public building waiting zones, offering high-capacity seating with a distinctive visual form
Co-working space open loungesSupports flexible ad-hoc seating for co-working members, with ability to reconfigure modules as space needs change
Exhibition and event spacesProvides durable high-capacity seating for trade show booths, exhibition halls and temporary event installations, with a distinctive silhouette that supports branded space design
Retail customer loungesSuitable for premium retail fitting rooms, customer waiting areas or in-store lounge zones, with stain-resistant commercial-grade fabric for high-traffic use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 Furniture - Strength, durability and safety - Non-domestic seatingApplicable for load, stability and durability testing for commercial public lounge seating
EN 1022:2018 Furniture - Seating - Determination of stabilityApplicable for verifying seating stability under offset seated loads
EN 13501-1:2018 Fire classification of construction products and building elementsApplicable for fabric and foam fire reaction rating specification for contract installations
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for furnitureApplicable for structural stability, edge finishing and safety performance verification of wooden and upholstered furniture
GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furnitureApplicable for formaldehyde emission limits on internal engineered wood components
GB/T 19817-2005 Upholstered furniture general technical requirementsApplicable for upholstery fabric strength, foam performance and structural durability testing
GB 20286-2006 Fire retardant products and components - Requirements for fire retarding performance of public place furnitureApplicable for flame resistance requirements when installed in high-occupancy public spaces
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for furniture: Applicable for structural stability, edge finishing and safety performance verification of wooden and upholstered furniture;
2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for formaldehyde emission limits on internal engineered wood components;
3. GB/T 19817-2005 Upholstered furniture general technical requirements: Applicable for upholstery fabric strength, foam performance and structural durability testing;
4. GB 20286-2006 Fire retardant products and components - Requirements for fire retarding performance of public place furniture: Applicable for flame resistance requirements when installed in high-occupancy public spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOU-MOD-8S-2T-RED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOU-MOD-8S-2T-RED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOU-MOD-8S-2T-REDOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

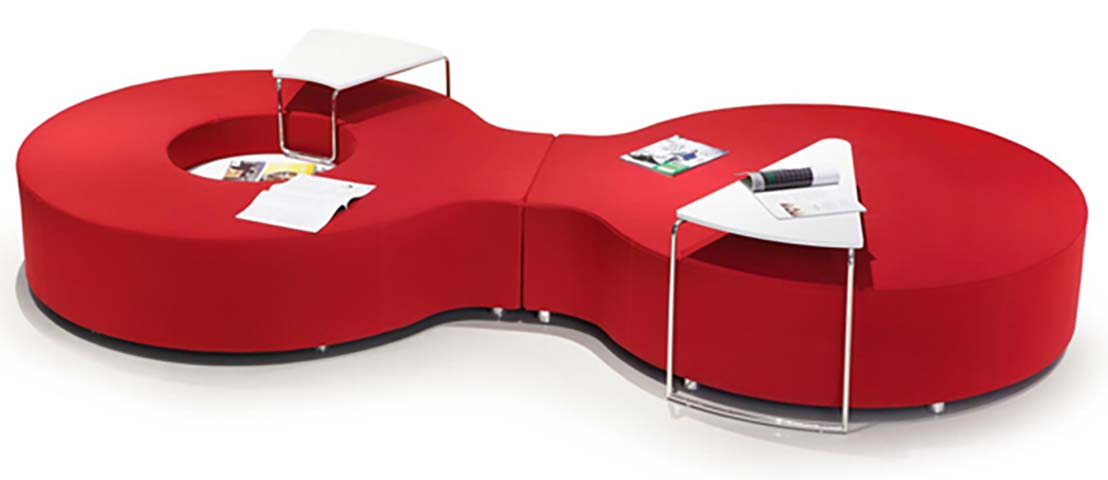

The Modular 8-Shaped Collaborative Lounge Seating with Integrated Side Tables is a distinctive public soft seating solution defined by its symmetric, continuous figure-eight layout formed by two interlocking circular seat segments. The bold matte red upholstered exterior creates a strong visual focal point, complemented by angular white laminate side tables mounted directly to the seat plinth at two designated positions, and polished chrome framing that adds a refined, commercial-grade finish. A circular open cutout built into one seat segment introduces negative visual space to the otherwise solid, low-profile form, while the backless, curved perimeter allows open, unobstructed sightlines across the seating group. Constructed for long-term high-traffic use, the seating features an engineered wood inner frame wrapped in high-resilience foam padding, covered in durable woven polyester fabric suited to frequent public use. Integrated side tables are supported by chrome-plated steel frames, with horizontal chrome crossbars beneath each table that double as footrests for seated users. Black non-slip base glides with nylon contact pads sit at the base perimeter, offering adjustable leveling to compensate for uneven floors, preventing scratches to hard surface flooring, and eliminating unwanted sliding during use. Hidden zinc-plated steel brackets lock the two seat modules together in the standard 8-figure configuration, while allowing full separation for alternate layout arrangements. Functional design supports flexible collaborative and individual use: the curved seat perimeter accommodates up to 8 users at full capacity, who may face inward for group discussion or outward for quiet, relaxed seating with no fixed backrests to restrict positioning. The two integrated tabletops provide stable flat space for laptops, documents, reading materials, or refreshments, eliminating the need for separate occasional tables. The central open cutout offers recessed space to stow personal items, reading materials, or decorative planters, while the integrated footrests support comfortable seated posture for users working or resting at table positions. This seating is well suited for a wide range of commercial and public-facing spaces, including office collaborative breakout zones, university common areas and library lounges, corporate reception and waiting areas, co-working space open lounges, exhibition and event installations, and premium retail customer waiting zones. When planning procurement, note that the product ships in three separate packages requiring two-person on-site assembly, with standard export packaging to protect upholstered and metal components during transit. Buyers should confirm final material specifications, including fabric grade and core foam properties, with suppliers prior to order placement, and plan for access space to accommodate delivery of the large seat modules. The modular connection system allows for future layout adjustments as space needs evolve, supporting long-term flexible space planning across different use cases.
