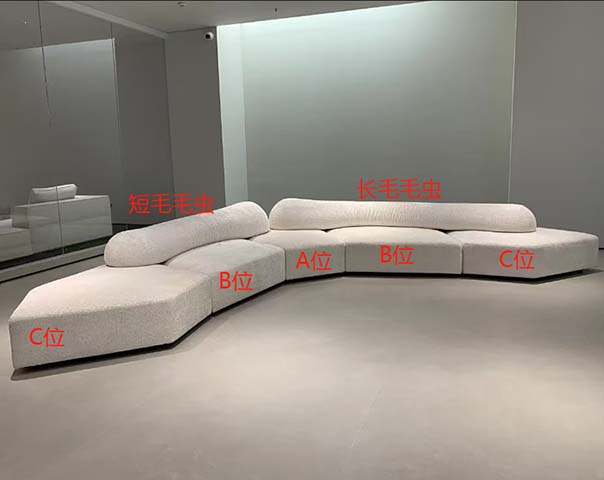

Name: Modular Curved Armless Caterpillar Sectional Sofa
Brand: JUESHANGDA
SKU: 5AT0GP

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4000 × 1750 × 600 mm
Seat height	430 mm
Seat depth per module	800 mm
Seat width per module	800 mm
Bolster backrest height	300 mm
Base ground clearance	30 mm
Short caterpillar section length	1600 mm
Long caterpillar section length	2400 mm
Upholstery seam pitch	8 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall static load capacity	750 kg
Fabric abrasion resistance	40000 Martindale rubs
Seat foam density	40 kg/m³
Foam compression cycle durability	6000 cycles
Seating capacity	5 adults
Product net weight	180 kg
Foam full expansion time after unpacking	72 hours
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Off-white textured bouclé/teddy polyester fabric
Seat core fill	High-density slow-rebound polyurethane foam
Bolster backrest fill	40 kg/m³ high-resilience foam
Internal frame (if fitted)	Solid kiln-dried hardwood
Base support	Hidden low-profile carbon steel legs, 20 mm section thickness
Base bottom layer	Anti-slip silicone dot non-woven fabric
Fabric surface treatment	Stain-resistant, spot-cleanable finish
Module connector hardware	Zinc-plated steel interlocking clips
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	5 interlocking segments rearrangeable into custom curved layouts
Armless open layout	No fixed armrests to allow flexible seating from any position
Low-profile lounge positioning	Ultra-low seat height for relaxed floor-adjacent casual seating
Non-marking base protection	Anti-slip bottom layer protects hard flooring and prevents unwanted movement
Compressed shipping compatibility	Foam construction allows vacuum compression to reduce shipping volume
Spot clean maintenance	Upholstery cleans with mild detergent and damp cloth without discoloration
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living rooms	Large curved layout serves as statement lounge seating for open-plan living spaces
Office lounge areas	Low-profile casual seating for informal meeting and break zones in modern offices
Hospitality lobby spaces	Curved arc design creates welcoming conversation areas for hotel and boutique lobbies
High-end showroom display	Minimalist sculptural form fits contemporary furniture and interior design showrooms
Open event spaces	Modular configuration can be rearranged to suit temporary event seating layouts
Residential home theaters	Low deep seating provides relaxed posture for extended media viewing use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength standard	EN 12520:2015
Foam performance standard	EN 1334:1996

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Contract seating standard	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety standard	GB/T 3324
Fabric safety standard	GB 18401
Foam flammability standard	GB 20286

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety standard: GB/T 3324;
2. Fabric safety standard: GB 18401;
3. Foam flammability standard: GB 20286;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CURV-CAT-5MOD-4000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CURV-CAT-5MOD-4000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CURV-CAT-5MOD-4000Open Export Tool

Quick Actions

Post an RFQ

Product Description

The JUESHANGDA Modular Curved Armless Caterpillar Sectional Sofa, model CURV-CAT-5MOD-4000, is a low-profile lounge seating solution defined by its smooth, continuous arc form and unobstructed, armless open layout. Its five interlocking segments are designed to be rearranged into custom curved configurations, with a sculptural, minimalist silhouette that serves as a deliberate visual focal point in open settings. The sofa measures 4000 x 1750 x 600 mm overall, with a 430 mm seat height, 800 mm seat width and depth per module, 300 mm bolster backrest height, and 30 mm base ground clearance; it includes short caterpillar sections of 1600 mm and long caterpillar sections of 2400 mm, and seats 5 adults comfortably. Constructed for long-term durability, the sofa features a solid kiln-dried hardwood internal frame with primary sections measuring 30 x 50 mm and a recommended 12% moisture content, supported by hidden low-profile 20 mm thick carbon steel legs. The outer upholstery is off-white textured bouclé teddy polyester fabric treated with a stain-resistant, spot-cleanable finish rated for 40000 Martindale rubs of abrasion resistance. Seat cores use 40 kg/m³ high-density slow-rebound polyurethane foam tested for 6000 compression cycles, while bolster backrests are filled with matching 40 kg/m³ high-resilience foam. Zinc-plated steel interlocking clips secure modules together, and an anti-slip silicone dot non-woven fabric lines the base to protect hard flooring and prevent unwanted shifting. The entire unit weighs 180 kg net, with a 750 kg total static load capacity, and foam reaches full expansion 72 hours after unpacking. Practical design features include flexible multi-position access enabled by the armless layout, ultra-low seat positioning for relaxed floor-adjacent lounging, vacuum-compatible compressed shipping to reduce transport volume, simple spot cleaning with mild detergent and a damp cloth to avoid discoloration, and support for two removable, replaceable cushion service configurations. The sofa is well suited for residential open-plan living rooms as a statement lounge piece, home theaters for extended media viewing, modern office break and informal meeting zones, hotel and boutique lobbies to create welcoming conversation nooks, high-end interior showrooms as a sculptural display piece, and temporary open event spaces that require reconfigurable seating. For procurement, note that each set ships in 2 cartons with a total packaged gross weight of 110 kg per item, 1.8 m³ packaging volume, and requires 40 minutes of assembly time per unit.
