HomeOffice Desks & Chairs FurnitureOffice Sofa SeriesFabric Office SofaMOD-LNG-001

MOD-LNG-001

Code:5J2CHNV1
Request supplier quotes

Modular Two-Tone Angled Lounge Sofa Set with Side Tables Key Specifications 2026-08-02 19:41

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-LNG-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall set footprint3200 x 2800 x 750 mm
Single sofa module seat width1200 mm
Single sofa module seat depth600 mm
Seat height from floor450 mm
Backrest height above seat300 mm
Occasional side table top size450 x 450 mm
Occasional side table height600 mm
Table leg tubing diameter25 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Single sofa module seat static load200 kg
Side table top static load30 kg
Total set seating capacity4 persons
Foam density reference35 kg/m³
Single sofa module weight35 kg
Side table unit weight6 kg
Seat foam density35 kg/m³
Back foam density28 kg/m³
Upholstery abrasion resistance50000 rubs
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back cushionsHigh-density polyurethane foam core with fabric or faux-leather upholstery
Module internal framePlywood and solid wood sub-frame inside upholstered base
Module base undersideBlack fabric dust cover with non-slip feet
Side table framePowder-coated round steel tubing in white finish
Side table topWood-based composite panel with light wood-veneer or laminate surface
Upholstery seamsSewn seam construction joining cushion panels
Module inner support structureSinuous steel spring base under seat foam for load distribution
Edge trim of sofa modulesInjected molded foam edge reinforcement on all module corners
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfigurationUnits can be arranged into L-shapes, parallel face-to-face sets or straight runs by repositioning freestanding modules
Angled backrest geometrySlightly faceted backrest follows the angled seat plan to support semi-circular or corner conversation layouts
Side table placementLightweight square tables fit between or beside sofa modules for drinks, magazines and personal items
Low-profile lounge posture450 mm seat height supports relaxed cross-legged or leaning seating for short-stay waiting and informal meetings
Contract-grade durability intentFoam core and upholstered construction intended for medium-traffic public and office common areas
Tool-free deploymentModules and tables arrive fully upholstered and assembled, requiring only placement and orientation on site
Fixed angled backrestSlightly faceted backrest follows the angled seat plan with a 105 degree fixed seat-back angle to support semi-circular or corner conversation layouts
Relaxed lounge posture support450 mm seat height with 120 mm thick high-density foam supports relaxed cross-legged or leaning seating for short-stay waiting and informal meetings
Medium-traffic durability35 kg/m³ seat foam and 50000 rub abrasion resistant upholstery are engineered for medium-traffic public and office common areas
Tool-free on-site deploymentModules and tables arrive fully upholstered and pre-assembled, requiring only placement and orientation on site
Floor surface protectionPVC non-slip feet on the base underside prevent horizontal sliding and reduce scuffing on hard floor finishes
Cushion shape retentionHigh-density polyurethane foam core with silk cotton wrapping maintains cushion shape after 50000 compression cycles
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging configuration6 cartons total (4 sofa module cartons + 2 table cartons)
Sofa module carton size1250 x 650 x 480 mm
Sofa module gross weight38 kg per carton
Side table carton size500 x 500 x 650 mm
Side table gross weight8 kg per carton
Total shipment volume1.9 CBM
On-site assembly time20 minutes
20ft container loading quantity80 sets
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office reception and waiting areasSuitable for corporate lobbies and visitor waiting zones where flexible seating and clean modern aesthetics are required
Open-plan office breakout zonesRecommended for informal meeting and relaxation areas inside open workplaces
Education and co-working loungesAppropriate for university common areas and co-working spaces with medium daily traffic
Exhibition and event temporary loungesUseful for trade show booths and pop-up venues due to tool-free layout changes and lightweight modules
Hotel and retail public spacesFits contemporary hotel corridors, atriums and retail rest areas where visual cohesion and seating flexibility are priority
Auto dealership customer areasSuitable for car showroom customer waiting and consultation areas that demand modern styling and flexible seating arrangements
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Upholstered furniture fire safetyEN 1021:2014
Furniture safety general requirementsEN 12520:2015
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Seating durability for contract environmentsANSI/BIFMA X2020
Furniture sustainabilityANSI/BIFMA e2020
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Upholstered furniture flammabilityGB 20286
Furniture formaldehyde emissionGB 18580
Soft furniture mechanical safetyGB/T 10357.3
Public place furniture hygieneGB/T 38605
Standard Tender Description
This product must meet the following technical requirements:
1. Upholstered furniture flammability: GB 20286;
2. Furniture formaldehyde emission: GB 18580;
3. Soft furniture mechanical safety: GB/T 10357.3;
4. Public place furniture hygiene: GB/T 38605;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-LNG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-LNG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-LNG-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

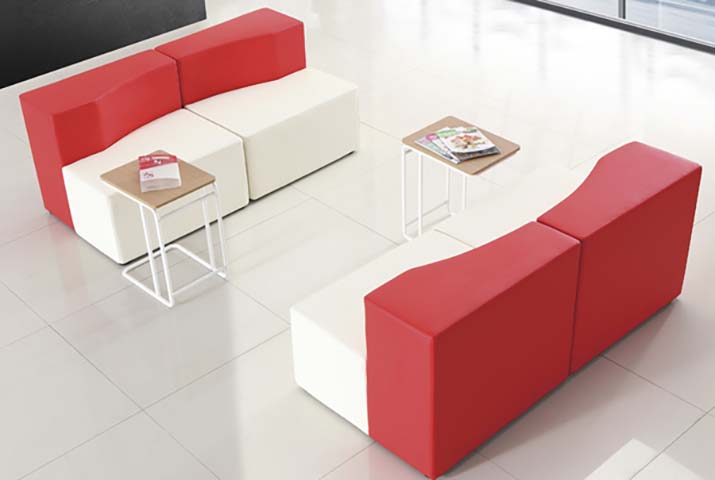

The KERTE MOD-LNG-001 Modular Two-Tone Angled Lounge Sofa Set with Side Tables presents a modern, low-profile visual form defined by its crisp angular lines and two-tone red and white finish across seat and outer back surfaces. The set includes two 2-seat angled sofa modules and two square occasional side tables, with a clean, faceted backrest geometry that complements its modular layout flexibility. Upholstered in fabric with strght, neatly sewn seams along cushion edges, the set prs with light wood-grn tabletops set on white powder-coated steel tube frames, creating a balanced contemporary aesthetic that fits diverse interior schemes. Constructed for contract-grade use, each sofa module features a plywood and solid wood internal sub-frame, supported by a sinuous steel spring base beneath high-density polyurethane foam seat cushions. Injected molded foam edge reinforcement on all module corners prevents deformation from frequent impact, while a black fabric dust cover with PVC non-slip feet on the base underside protects floor surfaces and stabilizes placement. Side tables use round steel tubing for their U-shaped leg and base frames, pred with wood-based composite tabletops with a smooth wood-veneer or laminate surface. Seat cushions use 35 kg/m³ density foam for shape retention, while backrest cushions use 28 kg/m³ foam for comfortable passive support, with the upholstery fabric carrying a Martindale abrasion rating suited for medium-traffic environments. Practically, the fully freestanding modules require no visible connecting hardware, enabling tool-free reconfiguration into L-shapes, parallel face-to-face sets, or strght runs to adapt to changing space needs. The fixed 105-degree angled seat-back angle supports casual conversation in corner or semi-circular layouts, while the 450 mm seat height encourages relaxed, short-stay seating for wting or informal meetings. Lightweight side tables fit between or beside modules to hold drinks, magazines, or personal items, and can be moved freely as needed. All units arrive pre-assembled, requiring only on-site placement for deployment, with no additional tools required for basic setup. This lounge set is suited for a wide range of commercial spaces including corporate reception areas, open-plan office breakout zones, university common areas, co-working lounges, hotel atriums, retl rest areas, auto dealership customer zones, and temporary exhibition or pop-up event lounges. Its modular design allows for expansion or reduction to match avlable space, while the two-tone color scheme supports brand-aligned interior design plans. For procurement, buyers should note that exact upholstery fiber content, wood frame specifications, steel gauge, flame resistance ratings, and formal durability test data require confirmation from the supplier, as these detls are not visible from product appearance alone. The set ships in separate cartons for individual modules and tables, enabling flexible partial ordering and easy handling for spaces with limited access.
