PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4800 × 3200 × 850 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seating capacity	10 people
Sofa seat static load capacity	200 kg per person position
Total set reference net weight	380 kg
Chair swivel rotation range	360 degrees
Upholstery fabric abrasion resistance	50000 Martindale cycles
Seat foam density	40 kg/m³
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Sofa seat and back cushions	High-resilience polyurethane foam wrapped in polyester fiber
Sofa inner frame	18 mm thick engineered plywood with glued and stapled joints
Sofa and chair upholstery	Woven polyester fabric in two-tone red and charcoal grey
Chair support bases	Powder-coated matte silver four-star steel structure
Table tabletops	18 mm thick matte white engineered stone with rounded edge
Table pedestal supports	Powder-coated white steel column and round base plate
Sofa support legs	20 mm diameter chrome-plated steel glide feet
Chair base glides	Nylon floor protection glides fixed to star base ends
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular sofa configuration	S-curved modular sections that form enclosed semi-private conversation zones
Armchair swivel function	360-degree smooth rotation without tilt or height adjustment
Table leg clearance	670 mm knee space under tabletops, no cross braces to obstruct leg movement
Two-tone upholstery design	Alternating red and charcoal grey fabric panels for visual zoning
Space division function	Curved sofa acts as soft space partition to separate lounge zones in open offices
Easy reconfiguration	All chairs and tables are freestanding, no fixed floor mounting for flexible layout changes
Floor protection	All furniture feet include non-marking glides to prevent damage to hard flooring
Low-maintenance upholstery	Stain-resistant treated fabric suitable for public high-traffic lounge areas
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office informal collaboration zones	Supports small group discussions and casual laptop work between meetings
Office reception waiting areas	Provides comfortable multi-seat waiting space for visitors with side tables for refreshments
Startup break rooms and social spaces	Accommodates mixed group sizes for relaxed breaks and informal team catch-ups
Co-working common areas	Serves as a signature seating cluster that divides open floor space without permanent partitions
Library and campus lounge zones	Offers durable seating for extended casual reading and student group work
Hotel lobby informal seating areas	Creates semi-private seating nooks for guests away from main circulation paths
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LGS-S092-SET

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LGS-S092-SET

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LGS-S092-SETOpen Export Tool

Quick Actions

Post an RFQ

Product Description

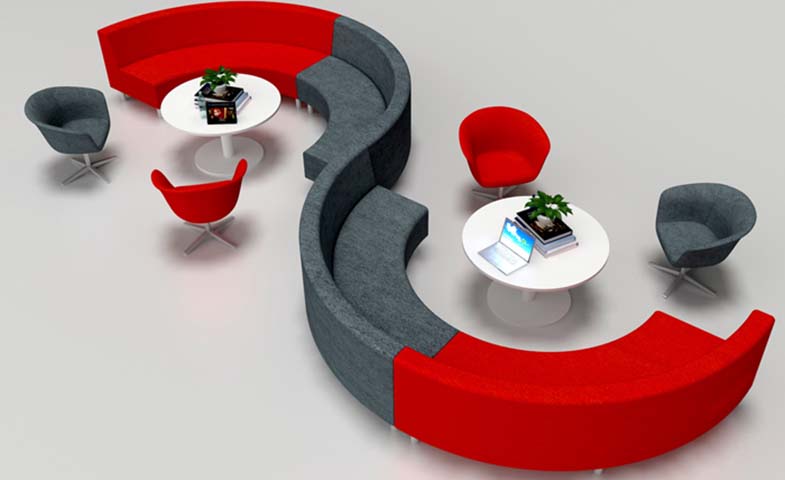

This unbranded modular lounge seating set, model LGS-S092-SET, combines S-shaped curved sofa sections, swivel armchairs and matching round pedestal tables to create cohesive, flexible lounge layouts. The two-tone woven polyester upholstery alternates red and charcoal grey panels to deliver subtle visual zoning, while the S-curved sofa structure forms enclosed semi-private conversation nooks that double as soft space partitions, eliminating the need for permanent structural dividers in open floor plans. All seating and table components are freestanding with no required fixed floor mounting, allowing easy reconfiguration to adapt to changing space needs.
The set is built with durable, commercial-grade materials. Sofa frames use 18mm thick engineered plywood with glued and stapled joints, supported by chrome-plated steel glide feet, while seat structures integrate 14mm bent plywood support boards. Seat and back cushions are constructed from high-resilience polyurethane foam wrapped in polyester fiber, with finished seat cushion thickness of 90mm, backrest padding of 70mm, and a dedicated 240mm high lumbar support zone. Swivel armchairs rest on powder-coated matte silver four-star steel bases fitted with nylon floor protection glides, offering full 360-degree smooth rotation without tilt or height adjustment. Round tables feature 18mm thick matte white engineered stone tops with rounded edges, supported by powder-coated white steel pedestal columns and round base plates, with 670mm of unobstructed knee space free of cross braces to support comfortable seating. All furniture feet use non-marking glides to prevent damage to hard flooring surfaces, and the upholstery fabric is rated for 50000 Martindale abrasion cycles, suited for frequent use.
With total seating for 10 people, the set is well suited for open office informal collaboration zones, office reception waiting areas, startup break rooms, co-working common areas, library and campus lounge zones, and hotel lobby informal seating areas. It supports small group discussions, casual work, visitor waiting, relaxed breaks, student group work, and quiet guest seating away from main circulation paths.
Procurement teams should note the set ships across two cartons, with a reference assembly time of 40 minutes per set. All components are designed for straightforward placement, with no specialized installation required to reconfigure layouts over time.

Modular S-Shaped Curved Office Lounge Seating Set with Round Tables and Swivel Armchairs Specifications
