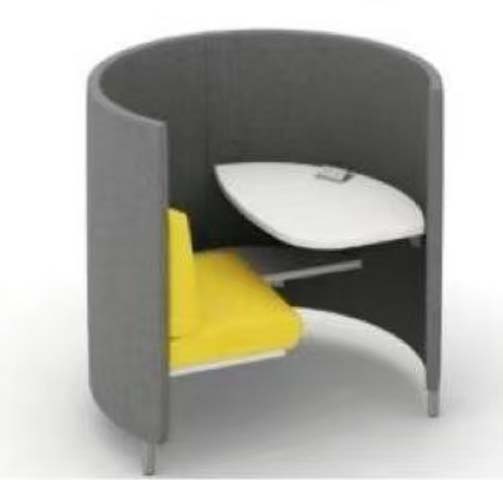

Semi-Open Cylindrical Single-Occupant Acoustic Privacy Meeting Booth with Integrated Seat and Worksurface (model PB-S-CYL-1800) is listed under Fabric Office Sofa. Dimensions: 1200 × 1200 × 1800 mm. Materials: Polyester fabric upholstery over 60mm acoustic foam core. Load capacity: 150 kg. Product Features: Semi-enclosed,structure,integrated,seating,fixed,metal,leg,support,commercial,acoustic,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JUESHANGDA | Model | PB-S-CYL-1800 |
| Overall dimensions (W × D × H) | 1200 × 1200 × 1800 mm | Overall footprint (diameter) | 1200 mm |
| Overall enclosure height | 1800 mm | Worksurface height above floor | 760 mm |
| Worksurface usable width | 700 mm | Worksurface usable depth | 450 mm |
| Seat width | 600 mm | Seat depth | 500 mm |
| Seat height above floor | 450 mm | Entry opening width | 700 mm |
| Enclosure panel thickness | 60 mm | Support leg diameter | 30 mm |
| Knee clearance under worksurface | 650 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Recommended static seat load | 150 kg |
| Worksurface static load capacity | 50 kg | Speech noise reduction coefficient | 0.35 |
| Recommended maximum occupancy | 1 person | Total unit net weight | 150 kg |
| Upholstery fabric abrasion resistance | 50000 double rubs | Seat foam density | 40 kg/m³ |
| Structural warranty period | 2 years | Reference Static Load | 150 kg depending on category |
| Moving-part Durability Reference | Acceptance target 50000 cycles | Outer enclosure panel | Polyester fabric upholstery over 60mm acoustic foam core |
| Seat cushion and backrest | Yellow woven fabric upholstery over high-resilience polyurethane foam | Integrated worksurface | White matte high-pressure laminate over MDF core |
| Support legs | Brushed finish 304 stainless steel tubular legs | Internal structural frame | 18mm thick plywood framing under upholstery panels |
| Seat base support | Powder-coated steel seat pan under foam cushion | Worksurface support bracket | 1.5mm thick powder-coated steel bracket connecting surface to frame |
| Fabric flame retardant treatment | Commercial office fabric meeting upholstery flammability requirements | Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Privacy screen function | 3/4 cylindrical wrap blocks direct line of sight from sides and rear for open office privacy |
| Integrated fixed worksurface | Curved white surface mounted at desk height to support laptop work and note taking | Integrated fixed seat | Curved upholstered seat positioned within enclosure for upright working posture |
| Floor mounting | Freestanding design with four metal support legs resting on finished floor, no permanent floor fix required | Acoustic dampening | Upholstered foam panels absorb ambient speech to reduce open office distraction |
| Modular connection compatibility | Flat outer back panel allows adjacent placement to link multiple units for grouped private zones | Access configuration | Side curved entry allows direct access without doors for quick entry/exit during short work sessions |
| Optional power integration | Pre-drilled worksurface port supports addition of USB/AC power outlets for device charging | Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open plan office focus zones | Provides semi-private space for individual focused work without full room isolation | Co-working space hot-desking areas | Creates dedicated single-user work nooks for members taking calls or deep work |
| Office breakout and collaboration areas | Offers quiet space for quick video calls or individual task work adjacent to team zones | Lobby and visitor waiting areas | Provides private temporary workspace for waiting guests needing to complete short tasks |
| Educational facility learning commons | Creates individual study nooks for students requiring reduced distraction during independent work | Recommended complementary accessories | Under-surface power module, monitor mount bracket, coat hook for added user functionality |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 1200 × 1800 mm | |
|---|---|---|
| Overall footprint (diameter) | 1200 mm | |
| Overall enclosure height | 1800 mm | |
| Worksurface height above floor | 760 mm | |
| Worksurface usable width | 700 mm | |
| Worksurface usable depth | 450 mm | |
| Seat width | 600 mm | |
| Seat depth | 500 mm | |
| Seat height above floor | 450 mm | |
| Entry opening width | 700 mm | |
| Enclosure panel thickness | 60 mm | |
| Support leg diameter | 30 mm | |
| Knee clearance under worksurface | 650 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static seat load | 150 kg | |
|---|---|---|
| Worksurface static load capacity | 50 kg | |
| Speech noise reduction coefficient | 0.35 | |
| Recommended maximum occupancy | 1 person | |
| Total unit net weight | 150 kg | |
| Upholstery fabric abrasion resistance | 50000 double rubs | |
| Seat foam density | 40 kg/m³ | |
| Structural warranty period | 2 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer enclosure panel | Polyester fabric upholstery over 60mm acoustic foam core | |
|---|---|---|
| Seat cushion and backrest | Yellow woven fabric upholstery over high-resilience polyurethane foam | |
| Integrated worksurface | White matte high-pressure laminate over MDF core | |
| Support legs | Brushed finish 304 stainless steel tubular legs | |
| Internal structural frame | 18mm thick plywood framing under upholstery panels | |
| Seat base support | Powder-coated steel seat pan under foam cushion | |
| Worksurface support bracket | 1.5mm thick powder-coated steel bracket connecting surface to frame | |
| Fabric flame retardant treatment | Commercial office fabric meeting upholstery flammability requirements | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy screen function | 3/4 cylindrical wrap blocks direct line of sight from sides and rear for open office privacy | |
|---|---|---|
| Integrated fixed worksurface | Curved white surface mounted at desk height to support laptop work and note taking | |
| Integrated fixed seat | Curved upholstered seat positioned within enclosure for upright working posture | |
| Floor mounting | Freestanding design with four metal support legs resting on finished floor, no permanent floor fix required | |
| Acoustic dampening | Upholstered foam panels absorb ambient speech to reduce open office distraction | |
| Modular connection compatibility | Flat outer back panel allows adjacent placement to link multiple units for grouped private zones | |
| Access configuration | Side curved entry allows direct access without doors for quick entry/exit during short work sessions | |
| Optional power integration | Pre-drilled worksurface port supports addition of USB/AC power outlets for device charging | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office focus zones | Provides semi-private space for individual focused work without full room isolation | |
|---|---|---|
| Co-working space hot-desking areas | Creates dedicated single-user work nooks for members taking calls or deep work | |
| Office breakout and collaboration areas | Offers quiet space for quick video calls or individual task work adjacent to team zones | |
| Lobby and visitor waiting areas | Provides private temporary workspace for waiting guests needing to complete short tasks | |
| Educational facility learning commons | Creates individual study nooks for students requiring reduced distraction during independent work | |
| Recommended complementary accessories | Under-surface power module, monitor mount bracket, coat hook for added user functionality |
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Stability testing standard applicable to commercial seating integrated into fixed booth structures | |
|---|---|---|
| EN 15372:2016 | Strength, durability and safety requirement applicable to commercial office worksurfaces |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Safety and durability standard applicable to integrated commercial task seating components | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Performance standard applicable to desk products for static load and structural stability | |
| ANSI/BIFMA M7.1-2020 | Acoustic measurement standard applicable to evaluating open office privacy element performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements applicable to wooden furniture components including worksurface and internal framing | |
|---|---|---|
| GB 20286-2006 | Flame retardant performance requirement applicable to upholstered components in public office spaces | |
| GB/T 19889.3-2005 | Acoustic measurement standard applicable to verifying enclosure airborne sound insulation performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements applicable to wooden furniture components including worksurface and internal framing; 2. GB 20286-2006: Flame retardant performance requirement applicable to upholstered components in public office spaces; 3. GB/T 19889.3-2005: Acoustic measurement standard applicable to verifying enclosure airborne sound insulation performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
