PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit weight	48 kg
Per-seat static load capacity	150 kg
Fabric abrasion resistance (Martindale)	50000 cycles
Foam density (seat cushion)	40 kg/m³
Foam density (backrest)	30 kg/m³
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat
Upholstery Seam Pitch	4 mm
Recommended Procurement Warranty	Frame 10 years; filling 3 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Woven polyester fabric with matte finish
Seat/back padding	High-resilience polyurethane foam
Internal frame	18mm thick engineered plywood frame
Base underside	Non-slip black fabric bottom layer
Joinery hardware	Zinc-plated steel connector brackets
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connectivity	Interlocking steel brackets join adjacent hexagonal modules to form custom layouts
Wrap-around enclosure	Full-height upholstered side and back panels form semi-private seating nooks
Floor-fixed placement	No casters or glides, designed for static placement in public zones
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office public lounge application	Suitable for office breakout zones and waiting areas to create informal collaborative seating nooks
Hospitality lobby application	Ideal for hotel lobbies and waterfront public spaces to provide modern geometric visual appeal

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture durability recommendation	EN 16139:2013
Formaldehyde emission recommendation	EN 717:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Seating static load recommendation	ANSI/BIFMA X2021

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Structural safety recommendation	GB/T 3324
Upholstery safety recommendation	GB 18584
Fabric flame retardancy recommendation	GB 20286

Standardized tender description text

This product must meet the following technical requirements:
1. Structural safety recommendation: GB/T 3324;
2. Upholstery safety recommendation: GB 18584;
3. Fabric flame retardancy recommendation: GB 20286;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOU-HEX-L2-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOU-HEX-L2-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOU-HEX-L2-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

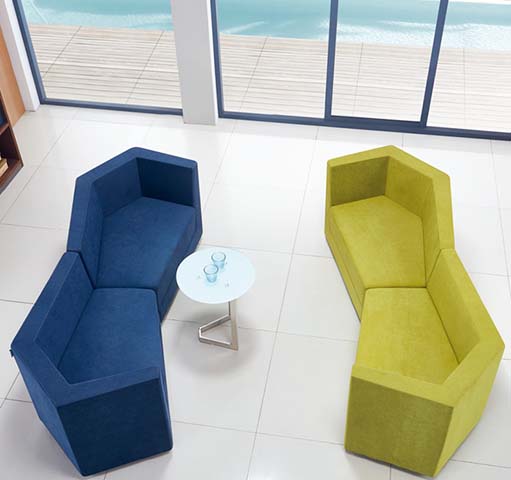

The Modular 2-Seat Hexagonal L-Shape Lounge Sofa is a geometric, fully upholstered modular seating solution defined by its structured low-back lounge silhouette. Its L-shaped configuration is formed by two interlocking hexagonal modules, with full-height upholstered side and back panels that create soft, wrap-around semi-private seating nooks. The piece features a tailored, cohesive look with matte woven polyester fabric covering every visible surface, paired with a non-slip black fabric layer on the base underside for a clean, finished appearance from all angles. Built for consistent public use, the sofa is constructed around an 18mm thick engineered plywood internal frame, with primary timber sections sized for stable structural support and maintained at a recommended moisture level to prevent warping over time. Zinc-plated steel connector brackets secure adjacent modules for reliable, rigid joins, while the upholstery sits over high-resilience polyurethane foam padding: seat cushions use 40kg/m³ density foam with 60% rebound for supportive, long-lasting comfort, and backrest cushions use 30kg/m³ density foam for softer, relaxed support. The fixed base has no casters or glides, designed for static placement in high-traffic public zones, and supports a per-seat static load capacity suitable for regular use. The woven polyester upholstery offers strong abrasion resistance for high-frequency occupancy, and removable, replaceable cushions simplify long-term maintenance and upkeep. This sofa is well suited for both commercial and select residential public-facing spaces. In office settings, it fits naturally in breakout zones and waiting areas, forming informal collaborative seating nooks that support casual interaction and quiet respite. In hospitality environments, it adds modern geometric visual appeal to hotel lobbies and waterfront public spaces, creating inviting, defined seating areas for guests and visitors. For procurement planning, note that each set ships in two cartons, with a straightforward assembly process suitable for standard facilities teams. The fixed static placement design means teams should confirm final layout positions prior to full installation, as the unit is not intended for frequent repositioning. The unbranded, design-forward structure allows for seamless coordination with complementary modular pieces to build larger custom seating configurations as space requirements evolve, while the robust material selection supports extended use in high-footfall settings without compromising visual consistency.

FurnDim

Modular 2-Seat Hexagonal L-Shape Lounge Sofa Specifications

LOU-HEX-L2-001
