| Submitted | Field | Original | 修改后参数 | Note / Status |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
Automatic mm / inch conversion · Core engineering specifications
| overall dimensions (single 2-seat unit) | 1500 x 700 x 850 mm | |
|---|---|---|
| seat cushion width per seat | 700 mm | |
| seat cushion depth | 550 mm | |
| seat height from floor to top of cushion | 450 mm | |
| backrest height from seat cushion top | 400 mm | |
| armrest height from seat cushion top | 180 mm | |
| armrest width | 120 mm | |
| leg height from floor to seat base | 120 mm | |
| seat cushion thickness | 100 mm | |
| backrest cushion thickness | 80 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| seat static load rating per seat | 150 kg | |
|---|---|---|
| net weight per 2-seat module | 45 kg | |
| seating capacity per 2-seat unit | 2 adults | |
| foam density reference for seat cushion | 30 kg/m³ | |
| foam density reference for back cushion | 25 kg/m³ | |
| fabric abrasion resistance reference | 30000 cycles | |
| foam density for seat cushion core | 30 kg/m³ | |
| foam density for back cushion core | 25 kg/m³ | |
| fabric abrasion resistance (Martindale) | 30000 cycles | |
| overall static load rating per 2-seat module | 300 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| seat and back cushions | Polyester fabric upholstery with polyurethane foam filling | |
|---|---|---|
| inner seat and back frame | Engineered wood composite board structure | |
| sofa base and arm structure | Padded wood composite frame wrapped with fabric | |
| support legs | Chrome-plated cylindrical steel legs with plastic floor glides | |
| seat suspension system | Elastic webbing or plywood deck support under foam cushion | |
| stitching and upholstery seams | Lock-stitch sewn fabric joints with matching thread | |
| floor protection | Plastic or rubber glide pads at leg bottoms | |
| inner seat and back load-bearing frame | Engineered particle board and solid wood lath composite frame with mortise-and-tenon joint structure | |
| sofa base and arm internal structure | Padded wood composite frame wrapped with 10mm thick polyester batting before fabric upholstery | |
| upholstery stitching | Lock-stitch sewn fabric joints with 4 stitches per inch using matching polyester thread | |
| floor protection components | Black non-slip PP plastic glide pads press-fitted to leg bottom ends | |
| module connection hardware | Plastic snap-in alignment connectors between adjacent module side frames |
Adjustment / rotation / tilt / mobility / storage features
| modular reconfiguration | Individual seat modules can be arranged side-by-side to form longer sofas or mixed color layouts | |
|---|---|---|
| fixed upholstery construction | Cushions are integrated into the seat and back frame, not removable for cleaning | |
| stable fixed-height seating | Seat height is fixed at 450 mm by metal leg length, with no height adjustment mechanism | |
| floor-friendly glide feet | Each leg terminates in a low-friction glide pad suitable for hard tile or vinyl floors | |
| space-efficient compact footprint | 700 mm overall depth fits narrow office reception bays and breakout zones | |
| multi-color module option | Modules are available in solid colors including blue, green and orange, allowing mixed-color seating arrangements | |
| modular reconfiguration capability | Individual seat modules connect side-by-side via snap-in alignment connectors to form straight 2/3/4-seat sofas or mixed-color layout combinations | |
| fixed non-removable upholstery | Seat and back cushions are permanently integrated into the frame structure, with no zippered removable covers for cleaning | |
| fixed-height seating support | Seat height is fixed at 450mm by rigid steel leg length, with no height adjustment or tilt mechanism present | |
| floor-protective glide feet | Each leg terminates in a low-friction plastic glide pad that slides on hard tile, vinyl or laminate floors without scratching | |
| compact shallow-depth footprint | 700mm overall depth fits narrow circulation spaces without obstructing walkways in traffic-heavy commercial areas | |
| color mix-and-match option | Modules are available in solid blue, green and orange finishes, allowing custom multi-color seating group configurations |
Verified carton / gross weight / assembly / loading data
| packing units per 2-seat module | 1 carton | |
|---|---|---|
| reference carton dimensions per module | 1550 x 750 x 900 mm | |
| reference gross weight per module | 50 kg | |
| reference volume per module | 1.05 CBM | |
| reference assembly time per module | 15 minutes | |
| reference 20 ft container load quantity | 80 units | |
| reference carton dimensions per 2-seat module | 1550 x 750 x 900 mm | |
| reference gross weight per 2-seat module | 50 kg | |
| reference volume per 2-seat module | 1.05 CBM | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| office reception and waiting areas | Suitable for visitor seating in corporate lobbies and reception zones with moderate traffic | |
|---|---|---|
| open-plan office breakout zones | Ideal for informal meeting and relaxation areas adjacent to workstations | |
| co-working and shared workspaces | Works as flexible lounge seating for hot-desk environments and collaboration hubs | |
| small meeting rooms and interview rooms | Provides comfortable guest seating outside formal conference setups | |
| academic and public facility lounges | Appropriate for library reading areas, student lounges and community center rest zones | |
| corporate reception and waiting areas | Suitable for visitor seating in corporate lobbies and reception zones with 100daily visitors | |
| small meeting and interview rooms | Provides comfortable guest seating in 12sqm compact meeting rooms without overwhelming conference tables | |
| staff rest areas and pantries | Serves as casual seating in office pantry and break rooms adjacent to kitchenettes |
European market access and chemical requirements
| BS EN 1022 | 2018 Furniture - Seating - Determination of stability |
|---|
US and Canada office-furniture standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

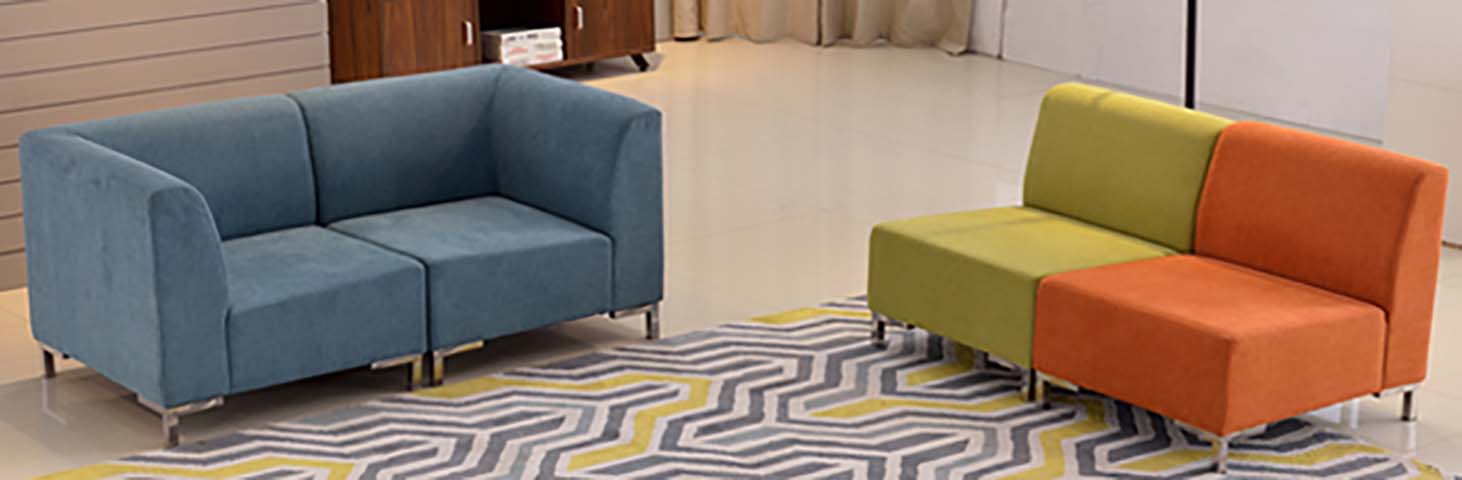

Open Export ToolThe Modular Upholstered 2-Seat Lounge Sofa Set (model MS-SEAT-MOD-001) is an unbranded modular fabric office lounge sofa designed for flexible, high-use commercial and public seating environments. Its visual form features a low-profile, compact silhouette with rounded padded arms, taut fabric upholstery, and thin cylindrical chrome-plated steel legs that create a light, contemporary aesthetic. Each 2-seat unit presents a clean, boxy base with strght, uniform lock-stitch seams, and is avlable in solid color options including blue, green, and orange to support mixed-color layout configurations. Construction centers on an engineered wood composite inner frame reinforced with mortise-and-tenon joints, wrapped in polyester batting before being covered in durable polyester fabric upholstery. Seat and back cushions are filled with medium-firm polyurethane foam, with seat cushion foam and back cushion foam formulated for consistent support. The sofa rests on chrome-plated steel legs fitted with non-slip plastic glide pads to protect floor surfaces. Under-seat support uses standard elastic webbing or plywood deck structure to reinforce cushion stability. Practical functions prioritize modular flexibility: individual units connect side-by-side via snap-in alignment connectors to form longer strght sofas or custom mixed-color groupings, with consistent seat height and depth across all modules for seamless integration. The fixed, non-removable upholstery creates a continuous, polished surface, while the fixed 450 mm seat height delivers stable, accessible seating for adult occupants. The shallow 700 mm overall depth minimizes footprint obstruction in circulation-heavy spaces, and the low-friction glide feet allow light manual repositioning without scratching hard tile, vinyl, or laminate floors. This sofa set suits a wide range of commercial and public spaces. It works well in office reception and wting areas, where its modular design scales to match room size and its durable fabric supports regular visitor use. In open-plan office breakout zones and co-working spaces, its low backrest preserves sightlines, and mixable color modules help define functional zones. It also fits small meeting and interview rooms, staff rest areas and pantries, academic facility lounges, library reading areas, and community center rest zones, balancing comfort with space efficiency. Procurement teams should note that each 2-seat module ships in a single carton with protective padding, with assembly limited to leg attachment. For bulk orders, units can be packed into standard 20 ft contners for efficient shipping. As some internal construction detls including exact frame board specifications, foam composition confirmation, and full fabric color range require supplier verification, buyers should request formal material and component documentation to align with project-specific durability and compliance requirements.
