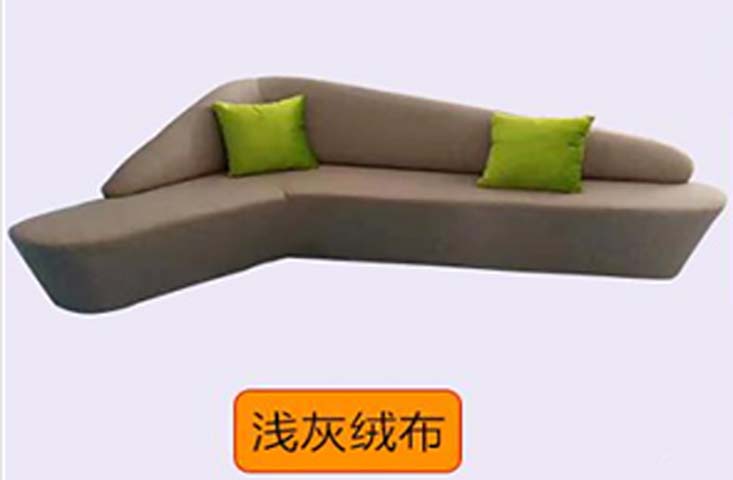

Product supplierAsymmetric Curved Sectional Sofa with Throw Pillows, Light gray velvet fabric, matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 950 × 850 mm | |
|---|---|---|
| Seat height (floor to seat top) | 450 mm | |
| Seat depth (front to backrest) | 600 mm | |
| Backrest height (seat to top of back) | 400 mm | |
| Armrest height (seat to arm top) | 150 mm | |
| Throw pillow dimensions | 450 x 450 mm | |
| Base plinth height (floor to seat bottom) | 80 mm | |
| Maximum overall depth at chaise end | 1200 mm | |
| Seat height (floor to seat top front edge) | 450 mm | |
| Seat depth (front edge to backrest at straight section) | 600 mm | |
| Backrest height (seat surface to top of back at highest point) | 400 mm | |
| Armrest height (seat surface to arm top at wider end) | 150 mm | |
| Base plinth height (floor to seat bottom frame) | 80 mm | |
| Maximum overall depth at extended lounging end | 1200 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest cushion thickness | 100 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight reference | 120 kg | |
|---|---|---|
| Seat static load capacity | 360 kg | |
| Seating capacity | 3 persons | |
| Foam density reference (seat cushion) | 35 kg/m³ | |
| Fabric abrasion resistance reference | 20000 cycles | |
| Expected service life reference | 8 years | |
| Foam density reference (seat cushion core) | 35 kg/m³ | |
| Fabric abrasion resistance reference (Martindale) | 20000 cycles | |
| Seam pitch | 5 mm | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Light gray velvet fabric, matte finish | |
|---|---|---|
| Seat cushion fill | High-resilience polyurethane foam core with upper down-like fiber wrap | |
| Backrest fill | Medium-density polyurethane foam with fiber batting | |
| Internal frame | Solid pine wood + plywood composite frame | |
| Support webbing | Elastic polyester webbing base under seat cushions | |
| Throw pillow fabric | Lime green woven fabric cover with zipper closure | |
| Bottom base structure | Wooden plinth base with black non-slip plastic feet | |
| Sewing thread | Polyester core-spun sewing thread | |
| Seat support base | Elastic polyester webbing base under seat cushions, 50mm width webbing | |
| Throw pillow outer cover | Lime green woven fabric cover with zipper closure | |
| Throw pillow inner fill | Down-like polyester fiber fill | |
| Frame bottom sealing | Non-woven fabric dust cover at bottom of frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Asymmetric layout | Left-side extended lounging chaise + right-side standard seating section | |
|---|---|---|
| Integrated low armrests | Wide padded armrests blended into the backrest silhouette at both ends | |
| Removable throw pillows | 2 square lime green accent pillows included | |
| Fixed cushion configuration | Tight seat and back cushions attached to the frame | |
| Floor-placed installation | Direct placement on finished floor with non-slip feet | |
| Curved backrest contour | Ergonomically angled backrest following the sofa curve | |
| Plush seating support | High-resilience foam core with fiber wrap provides 65% compression set resistance | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 3 cartons | |
|---|---|---|
| Largest carton dimensions | 2400 x 1000 x 700 mm | |
| Total gross weight | 140 kg | |
| Total shipment volume (CBM) | 1.9 m³ | |
| Assembly time | 45 minutes | |
| 20ft container loading quantity | 12 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Suitable for open-plan modern living rooms as primary seating | |
|---|---|---|
| Lobby and reception area | Works for boutique hotel lobbies or corporate reception zones | |
| Showroom and retail space | Ideal for furniture showrooms and fashion retail waiting areas | |
| Lounge and co-working space | Suitable for casual meeting zones in co-working offices | |
| Curved wall alignment | Can be placed against curved architectural walls or in rounded room corners | |
| Residential open-plan living room | Suitable for modern open-plan living rooms as primary seating for 3 adults | |
| Boutique hotel lobby | Works for boutique hotel lobbies or boutique accommodation public areas | |
| Corporate reception area | Ideal for corporate front-desk reception zones and visitor waiting areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1021-1:2014 | Applicable for cigarette ignition resistance of upholstered furniture | |
|---|---|---|
| EN 1021-2:2014 | Applicable for match flame equivalent ignition resistance of upholstery |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Applicable for upholstered furniture seat and back durability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for wood-based panel internal frame formaldehyde emission limits | |
|---|---|---|
| GB 20400-2006 | Applicable for fabric upholstery limit of harmful substances | |
| GB/T 10357.3-2013 | Applicable for sofa seat and back static load testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for wood-based panel internal frame formaldehyde emission limits; 2. GB 20400-2006: Applicable for fabric upholstery limit of harmful substances; 3. GB/T 10357.3-2013: Applicable for sofa seat and back static load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
