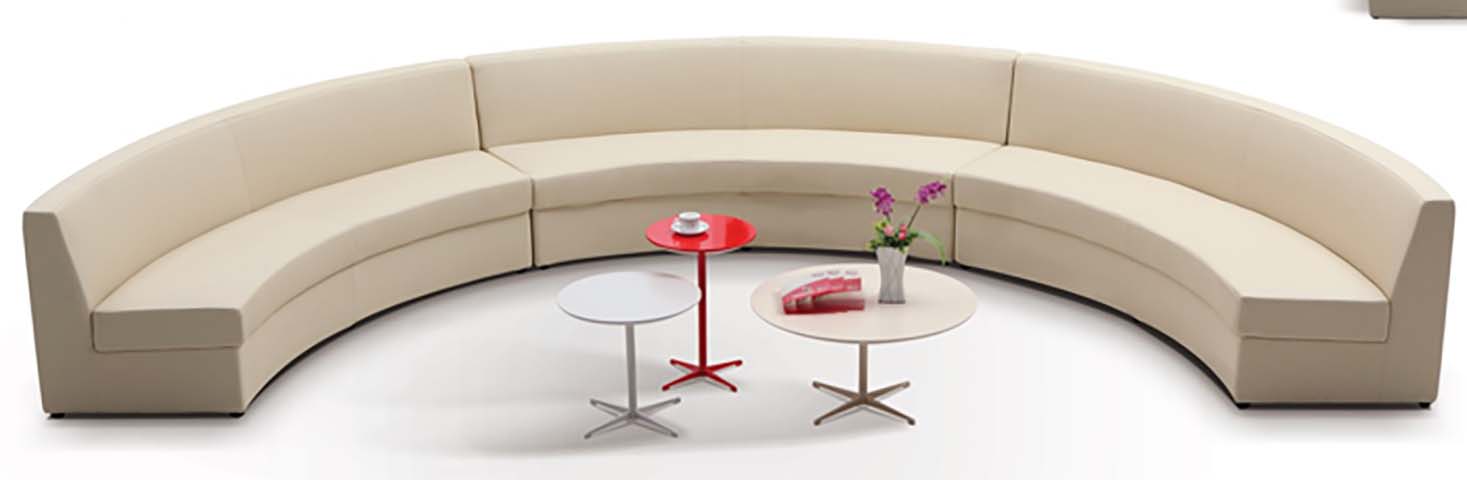

Cream Fabric Semi-Circular Curved Modular Lounge Sofa (model CURV-SOFA-3SEG-CRM-01) is listed under Fabric Office Sofa, with overall dimensions of 3800 × 2030 × 890 mm and main material of Fabric. Load capacity: 130 kg/seat. Certifications: Low-back,modular,design,commercial,lounge,seating,cream,upholstery,semi-circular,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 3800 x 2030 x 890 mm | |
|---|---|---|
| seat height from floor | 475 mm | |
| seat depth (curved surface) | 630 mm | |
| back height above seat surface | 450 mm | |
| individual module width (arc segment) | 1270 mm | |
| end armrest width per side | 150 mm | |
| inner arc seating length (usable) | 3200 mm | |
| base clearance under sofa | 10 mm | |
| armrest height above seat surface | 200 mm | |
| radius of inner seating curve | 1600 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| weight capacity per seating position | 150 kg | |
|---|---|---|
| total static weight capacity | 450 kg | |
| product net weight | 123 kg | |
| seat core foam density | 45 kg/m³ | |
| foam rebound rate | 60% | |
| seat support spring count per module | 12 pocket springs | |
| fabric Martindale abrasion resistance | 50000 rubs | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| upholstery fabric | 100% polyester cream fabric, tight upholstered finish | |
|---|---|---|
| internal structural frame | Kiln-dried solid pine + plywood frame, 18mm panel thickness | |
| seat cushion fill | High-resilience polyurethane foam over pocket spring core | |
| backrest fill | 38kg/m³ medium-density polyurethane foam, tight fixed upholstery | |
| base support glides | Black non-marking plastic floor glides at each module corner | |
| modular connection hardware | Steel under-seat latch connectors for fixed arc assembly |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular assembly | 3 curved segments connect via under-seat latches to form fixed semi-circular layout | |
|---|---|---|
| floor protection | Non-marking glides prevent scuffing on hard flooring surfaces | |
| fixed tight cushion design | Seat and back upholstery is permanently secured to frame for clean commercial appearance | |
| conversation-oriented layout | Concave inward-facing seating supports face-to-face interaction in lounge settings |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| total shipping volume | 3.28 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| commercial office lobby reception | Semi-circular layout creates central gathering zone for waiting visitors | |
|---|---|---|
| corporate lounge breakout area | Deep seating supports relaxed casual meetings and short rest breaks |
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Applicable for domestic and contract seating stability testing | |
|---|---|---|
| EN 16139:2013 | Applicable for strength, durability and safety of non-domestic seating | |
| EN 14465:2003 | Applicable for upholstery fabric abrasion and performance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Applicable for lounge seating durability and static load testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture frames | |
|---|---|---|
| GB 18584-2001 | Applicable for limit of formaldehyde emission from wood furniture | |
| GB/T 19867.1-2015 | Applicable for upholstered furniture flame resistance requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture frames; 2. GB 18584-2001: Applicable for limit of formaldehyde emission from wood furniture; 3. GB/T 19867.1-2015: Applicable for upholstered furniture flame resistance requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
