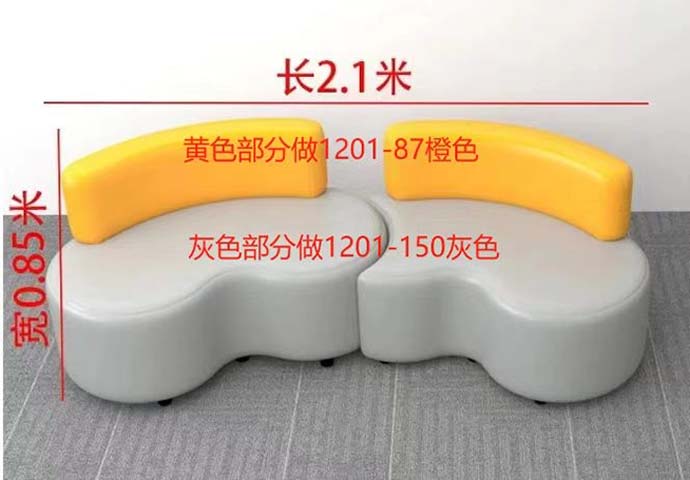

Product supplierTwo-Tone Interlocking Curved Modular Lounge Sofa, 1201 grey matte stain-resistant commercial fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2100 × 850 × 790 mm | |
|---|---|---|
| Seat height | 420 mm | |
| Single modular seat width | 1050 mm | |
| Single modular seat depth | 850 mm | |
| Backrest height above seat | 370 mm | |
| Backrest thickness | 100 mm | |
| Seat foam thickness | 150 mm | |
| Base support foot diameter | 30 mm | |
| Seat edge radius | 80 mm | |
| Backrest arc length per unit | 900 mm | |
| Seat clearance above floor | 20 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 320 kg | |
|---|---|---|
| Product net weight | 90 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Fabric abrasion resistance | 50000 cycles | |
| Recommended user count | 2 adults or 3 children | |
| Frame structural warranty | 5 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery fabric | 1201 grey matte stain-resistant commercial fabric | |
|---|---|---|
| Backrest upholstery fabric | 1201orange matte stain-resistant commercial fabric | |
| Seat core padding | High-density polyurethane foam | |
| Backrest core padding | Medium-density polyurethane foam | |
| Internal frame | 15mm thick multi-layer plywood with reinforced bracing | |
| Base support feet | Black nylon anti-slip glide feet | |
| Modular connectors | Hidden steel interlocking clips | |
| Seam stitch pitch | 8 stitches per inch | |
| Fabric surface treatment | Water-repellent and anti-fouling coating | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular interlocking connection | Hidden steel clips lock units together to prevent shifting during use | |
|---|---|---|
| Rounded edge safety design | All exposed seat and back edges have 80mm radius to reduce impact injury | |
| Anti-slip base stabilization | Nylon glide feet grip floor surfaces to prevent unwanted movement | |
| Curved back lumbar support | Arc-shaped backrest follows seated posture to provide lower back support | |
| Low-profile casual seating | 420mm seat height supports relaxed, informal seated postures for public spaces | |
| Custom color configuration | Upholstery supports made-to-order fabric color selection per specified codes | |
| Tool-free reconfiguration | Units detach without tools to rearrange seating layouts for different spaces | |
| Easy-clean surface | Tight upholstery seams allow wipe-down cleaning for high-traffic public areas | |
| Interlocking joint overlap | 50 mm | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Early education center play areas | Soft rounded edges and low height suit safe casual seating for young children | |
|---|---|---|
| Office reception waiting zones | Two-tone modern appearance creates welcoming casual seating for visitors | |
| Public library reading corners | Modular flexible layout supports quiet casual reading seating for patrons | |
| Retail store rest areas | Stain-resistant fabric and durable construction suit high-traffic customer seating | |
| Residential living room casual seating | Compact playful design adds relaxed extra seating for family and guest use | |
| Pediatric clinic waiting areas | Soft safe construction and easy-clean surface suit family-friendly public healthcare spaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture seating strength standard | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flammability standard | EN 1021:2014 | |
| Furniture surface durability standard | EN 14465:2017 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety standard | GB 28007 | |
|---|---|---|
| Furniture mechanical performance standard | GB/T 3324 | |
| Textile fabric safety standard | GB 18401 | |
| Furniture flame retardant standard | GB 20286 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety standard: GB 28007; 2. Furniture mechanical performance standard: GB/T 3324; 3. Textile fabric safety standard: GB 18401; 4. Furniture flame retardant standard: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
