WBN-3P1T-CHR

Code：AN133YV1
Request supplier quotes

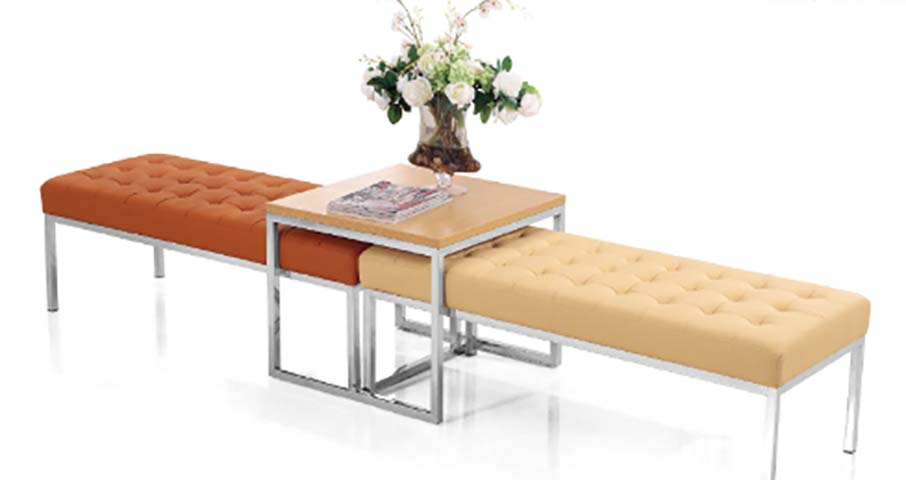

Modular Nesting Waiting Bench Set with Center Side Table Key Specifications 2026-08-06 11:25

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

WBN-3P1T-CHR

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall set dimensions (extended, fully nested)2400 x 600 x 450 mm
Individual long bench unit dimensions (per color)1200 x 400 x 450 mm
Center side table dimensions600 x 600 x 450 mm
Seat cushion thickness80 mm
Steel frame leg section (square tube)30 x 30 mm
Table top thickness25 mm
Frame base stretcher bar height (table frame)100 mm
Under-table nesting clearance for bench ends420 mm
Tufted button grid spacing (seat surface)100 mm
Floor glide diameter (leg feet)20 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total set weight52 kg
Per-seat static load capacity150 kg
Total set seating capacity4 persons
Cushion foam density35 kg/m³
Foam rebound rate45%
Seam stitching durability30000 double rubs
Product warranty (commercial use)3 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Structural frame (all units)Chrome-plated cold-rolled steel square tube
Bench seat cushionsHigh-resilience polyurethane foam, tufted button construction
Bench upholstery (terracotta/cream units)Smooth matte polyurethane (PU) leather
Center table topHigh-pressure wood grain laminate over particleboard core
Tufting fastenersRecessed plastic/metal button caps
Frame weld pointsTIG welded steel joints, ground and polished before chrome plating
Leg floor glidesNon-marking injection-molded nylon glides
Table understructureSteel support cross bracing under table top
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular nesting functionEach bench slides partially under the central table to reduce footprint when not fully occupied; benches can be pulled fully out for maximum seating or tucked to free floor space
Dual-tone seating configurationOne terracotta upholstered bench and one cream upholstered bench create color-coded flexible seating, suitable for dividing visitor flow or matching brand accent colors
Tufted seat ergonomicsRecessed tufting creates a non-slip seating surface that prevents users sliding forward during short waiting periods, no additional cushions required
Non-marking floor protectionIntegrated nylon glides on all leg bases prevent scratching on polished tile, wood or vinyl reception flooring without requiring additional felt pads
Multi-use central tableCentral table positioned at matching seat height functions as a side table for magazines, decor, beverages or visitor personal items, accessible from both bench sides
Independent unit placementAll three pieces (two benches, one table) are free-standing and can be repositioned separately to create linear, L-shape or clustered waiting layouts to fit different room geometries
Stain-resistant surface maintenancePU upholstery and laminate table top can be wiped clean with standard mild disinfectant, suitable for high-traffic public areas with regular cleaning requirements
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons3 pcs
Individual bench carton dimensions1220 x 420 x 180 mm
Center table carton dimensions620 x 620 x 120 mm
Total set gross shipping weight58 kg
Total shipping volume per set0.17 CBM
On-site assembly time30 minutes
20ft GP container loading quantity168 sets
40ft HQ container loading quantity411 sets
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office reception waiting areasIdeal for small to medium corporate lobbies, providing 4 visitor seats with a central surface for reading materials and decor, compact footprint fits 2.5m wide wall spaces
Healthcare clinic waiting roomsWipe-clean PU upholstery and laminate surfaces support regular disinfection, comfortable 450mm seat height is accessible for elderly and mobility-impaired patients
Retail lounge and fitting room areasDual-tone upholstery can be matched to retail brand palettes, modular nesting allows staff to adjust seating capacity based on daily customer traffic
Breakout and informal meeting spacesFree-standing units can be rearranged into small group seating clusters for casual employee discussions or short breaks, central table supports laptops and refreshments
Hotel lobby and concierge waiting zonesPolished chrome frame and tufted upholstery create an upscale modern aesthetic, units can be repositioned for event seating or quiet guest waiting
STANDARD S1

EU EN Standards

European market access and chemical requirements

No standards data is available for this market.
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

No standards data is available for this market.
Standard Tender Description
This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
