PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 2870 × 890 mm
Overall assembled dimensions	3600 x 2870 x 890 mm
Seat height from floor	510 mm
Seat depth per modular segment	660 mm
Backrest height above seat	380 mm
Armrest height above seat	200 mm
Round ottoman dimensions	1200 mm diameter x 470 mm height
Metal leg height	150 mm
Chaise lounge segment depth	1500 mm
Seat cushion thickness	150 mm
Back cushion thickness	120 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	408 kg
Seating capacity	7 people
Total set net weight	227 kg
Cushion foam density	35 kg/m³
Fabric abrasion resistance	50000 double rubs
Modular connection static shear strength	90 kg per joint
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat
Upholstery Seam Pitch	4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery	1.0 mm thick smooth white polyurethane faux leather
Internal frame	Kiln-dried engineered hardwood with corner-blocked joinery
Seat suspension	8-gauge sinuous steel springs spaced 120 mm apart
Cushion core	35 kg/m³ high-resilience polyurethane foam with polyfiber wrap
Legs	Polished chrome-plated tapered steel with non-slip plastic ferrules
Back cushion filling	28 kg/m³ polyurethane foam with soft polyester fiber topper
Modular connectors	Powder-coated steel under-seat clamp and peg hardware
Ottoman base	Engineered wood frame with matching white upholstery and chrome legs
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Curved wedge segments connect to form C-shaped semicircular layout
Chaise lounge extension	Right-side armless extended segment supports reclined lounging without a backrest
Non-marking feet	Leg ferrules prevent floor scuffing on hard smooth flooring surfaces
Cushion support flexion	Sinuous spring base allows 20 mm deflection for even weight distribution
Segment alignment	Under-seat connectors prevent lateral sliding between adjacent modules during use
Throw pillow adjustment	Included cylindrical and square throw pillows can be repositioned for lumbar support
Ottoman multi-use	Matching round ottoman serves as footrest, additional seating, or coffee table surface
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large residential living rooms	Provides circular conversation seating for 7 people in open-plan entertainment spaces
Modern office reception areas	Sleek white finish creates a polished guest waiting area with contemporary styling
Open lounge and breakout spaces	Flexible modular configuration supports casual group collaboration or relaxation
High-end residential penthouse spaces	Polished chrome and white finish complements minimalist luxury interior design schemes
Hotel suite lounge areas	Ottoman provides flexible additional seating or table surface for guest common areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture upholstery fabric durability	EN 14465:2003
Seating furniture strength	EN 12520:2015
Furniture emission standards	EN 16516:2017

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating durability	ANSI/BIFMA X2022
Upholstered furniture stability	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety	GB 20400
Furniture mechanical performance	GB/T 10357.1
Furniture foam performance	GB/T 10802

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety: GB 20400;
2. Furniture mechanical performance: GB/T 10357.1;
3. Furniture foam performance: GB/T 10802;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-CURV-WHT-6S-OTT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-CURV-WHT-6S-OTT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-CURV-WHT-6S-OTTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

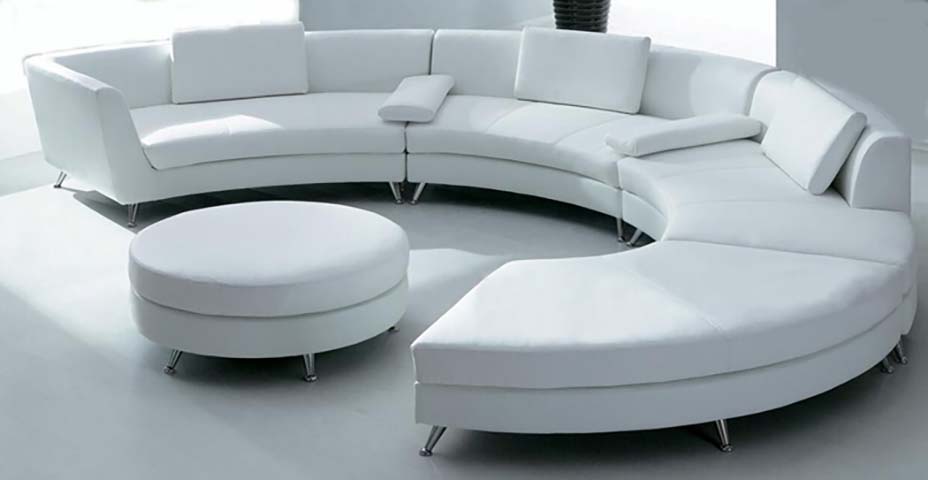

This curved modular sectional sofa set features a C-shaped semicircular layout formed by connected curved wedge segments, paired with a matching round ottoman. It has a smooth white upholstered exterior, with polished chrome tapered metal legs fitted with non-slip plastic ferrules, presenting a sleek modern minimalist aesthetic. The set includes a right-side armless chaise lounge extension, alongside padded seat and back cushions, with included cylindrical and square throw pillows that can be repositioned as needed. Its internal structure uses a kiln-dried engineered hardwood frame built with corner-blocked joinery, supported by 8-gauge sinuous steel springs for the seat suspension. Seat cushions are cored with high-resilience polyurethane foam wrapped in polyfiber, while back cushions use softer polyurethane foam topped with polyester fiber. Modular segments are secured with powder-coated steel under-seat clamp and peg hardware, and the matching ottoman shares the same engineered wood frame, white upholstery, and chrome leg design as the seating segments. The polished chrome legs lift the seating 150mm off the floor, with non-marking ferrules to prevent scuffing on hard smooth flooring surfaces. Functionally, the modular design allows segments to lock firmly in place without lateral sliding during use, while the sinuous spring base delivers even weight distribution across seating surfaces. The chaise segment supports reclined lounging without a backrest, and the included ottoman functions as a footrest, additional casual seating, or a flat coffee table surface. The set accommodates up to 7 people, with a total static load capacity of 408kg, and the upholstery offers durable abrasion resistance for regular high-traffic use. This set is well suited for large open-plan residential living rooms, high-end penthouse spaces aligned with minimalist luxury design schemes, modern office reception areas, casual office breakout and open lounge zones, as well as hotel suite lounge and common guest areas. For procurement, note that the set ships across 2 cartons, requires on-site assembly, and is best specified for spaces that can accommodate its full assembled footprint to leverage its circular conversation-focused layout. Buyers should also confirm the finish coordinates with existing interior palettes, as the crisp white upholstery and polished chrome hardware deliver a distinct contemporary visual profile.

White C-Shaped Modular Curved Sectional Sofa Set With Matching Round Ottoman Specifications
