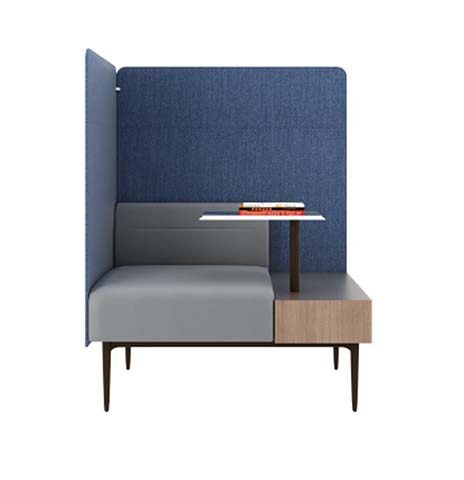

Product supplierSingle-Person Acoustic Privacy Booth Seat with Integrated Side Storage and Work Surface, Woven polyester fabric over PET acoustic foam core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 1600 × 1600 mm | |
|---|---|---|
| Overall footprint | 1600 x 1600 x 1600 mm | |
| Seat height from floor | 470 mm | |
| Seat width | 700 mm | |
| Seat depth | 600 mm | |
| Acoustic back panel height | 1600 mm | |
| Side wing screen height | 1600 mm | |
| Integrated side work surface height | 750 mm | |
| Side storage unit width | 450 mm | |
| Leg height from floor to seat base | 370 mm | |
| Cushion thickness | 100 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Integrated work surface load capacity | 100 kg | |
| Acoustic screen noise reduction coefficient | 30 dB | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Net product weight | 70 kg | |
| Structural frame warranty | 5 years | |
| Upholstery and component warranty | 2 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Acoustic back/side panels | Woven polyester fabric over PET acoustic foam core | |
|---|---|---|
| Seat cushion | Woven grey fabric over 40kg/m³ high-density polyurethane foam | |
| Backrest cushion | Woven grey fabric over 35kg/m³ high-density polyurethane foam | |
| Side storage cabinet | Walnut wood grain laminate over 18mm thick engineered wood board | |
| Integrated work surface | White high-pressure laminate top with 25mm thick substrate | |
| Support legs | Dark powder-coated 25mm diameter tapered steel tube | |
| Internal support frame | 1.5mm thick powder-coated steel rectangular tubing | |
| Work surface support post | Dark brown powder-coated 50mm diameter steel column | |
| Seam construction | 10mm stitch pitch upholstery seams | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy enclosure | Semi-enclosed 3-sided upholstered screen blocks direct sightlines and reduces conversational noise | |
|---|---|---|
| Integrated storage | Right-side enclosed wood-grain cabinet provides closed storage for personal work items | |
| Static fixed construction | Non-reclining, non-swivel fixed seating position optimized for upright focused work | |
| Floor clearance | 320mm open space under seat allows easy floor cleaning and leg stretch room | |
| Modular alignment | Flat side edges allow ganging multiple booth units in linear or clustered layouts | |
| Surface maintenance | Stain-repellent fabric upholstery allows spot cleaning with mild detergent | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office focus zones | Provides semi-private individual work space for solo tasks without full room enclosure | |
|---|---|---|
| Library quiet study areas | Upholstered acoustic screens reduce ambient noise for focused reading or writing | |
| Co-working space quiet sectors | Semi-enclosed seating offers individual dedicated spots for remote workers | |
| Corporate breakout spaces | Creates individual respite spots for short breaks or private calls away from desks | |
| Educational facility study halls | Defines individual study positions without permanent wall construction | |
| Airport/business lounge private nooks | Offers separated seating for travelers to work or rest without full isolation | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Office furniture seating safety and strength requirements applicable to commercial booth seating | |
|---|---|---|
| EN 1022:2018 | Domestic and contract seating stability testing standard for elevated leg units |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge and public seating safety, durability and structural performance standard | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk products standard applicable to the integrated side work surface | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental impact |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the engineered wood storage unit | |
|---|---|---|
| GB/T 22792.2-2009 | Office furniture seating safety, strength and durability requirements for upholstered booths | |
| GB/T 19889.3-2005 | Acoustic measurement standard for evaluating screen sound insulation performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the engineered wood storage unit; 2. GB/T 22792.2-2009: Office furniture seating safety, strength and durability requirements for upholstered booths; 3. GB/T 19889.3-2005: Acoustic measurement standard for evaluating screen sound insulation performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
