Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 1800 x 500 x 450 mm | |
|---|---|---|
| seat height (top of cushion to floor) | 450 mm | |
| single seat module width | 580 mm | |
| seat depth (front to back) | 500 mm | |
| cushion thickness | 120 mm | |
| inter-module gap width | 30 mm | |
| leg height (floor to frame base) | 100 mm | |
| leg diameter | 38 mm | |
| base frame height (upholstered body below cushion) | 330 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| net weight | 28 kg | |
|---|---|---|
| distributed seat static load | 360 kg | |
| single seat maximum user weight | 120 kg | |
| foam density (seat cushion) | 30 kg/m³ | |
| fabric abrasion resistance reference | 50000 cycles | |
| leg static load capacity (per leg) | 150 kg | |
| expected service life (commercial use) | 5 years | |
| seating capacity footprint per user | 600 mm width per user | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| seat cushion fill | Polyurethane foam core, medium density | |
|---|---|---|
| upholstery cover | Woven fabric (polyester or polyblend), matte finish | |
| internal seat frame | Plywood + solid wood composite frame | |
| support legs | Chrome-plated cylindrical steel tube, polished finish | |
| leg base glides | Black plastic non-marking floor glides | |
| inter-module connection | Hidden internal bracket alignment system | |
| stitching details | Double-stitched seam along cushion perimeter | |
| side panel upholstery | Same fabric as seat top, wrapped over frame body | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6 finish options |
Adjustment / rotation / tilt / mobility / storage features
| modular seating configuration | 3 independent seat blocks joined in a single linear unit | |
|---|---|---|
| static seating support | Fixed-height non-adjustable seating surface | |
| floor protection | Plastic glides on all four legs | |
| weight distribution | Four-point leg support at outer corners | |
| upholstery maintenance | Stain-resistant fabric surface (contract-grade reference) | |
| space optimization | Low-profile rectangular footprint without backrest | |
| assembly requirement | Leg attachment to pre-assembled upholstered body | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| number of cartons | 2 | |
|---|---|---|
| main carton dimensions | 1850 x 550 x 380 mm | |
| accessory carton dimensions | 200 x 150 x 120 mm | |
| total gross weight | 32 kg | |
| total shipment volume (CBM) | 0.39 | |
| assembly time (single technician) | 15 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| office reception and waiting areas | Provides 3-seat visitor seating in compact footprint | |
|---|---|---|
| public lounge and breakout spaces | Flexible linear seating for casual meetings and rest | |
| retail and showroom environments | Display seating for customers to try products or rest | |
| educational and institutional facilities | Durable seating for corridors and common areas | |
| residential entry and living spaces | Accent bench for foyers, living rooms or bedroom footboards | |
| event and temporary seating | Lightweight enough to rearrange for meetings or events |
European market access and chemical requirements
US and Canada office-furniture standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

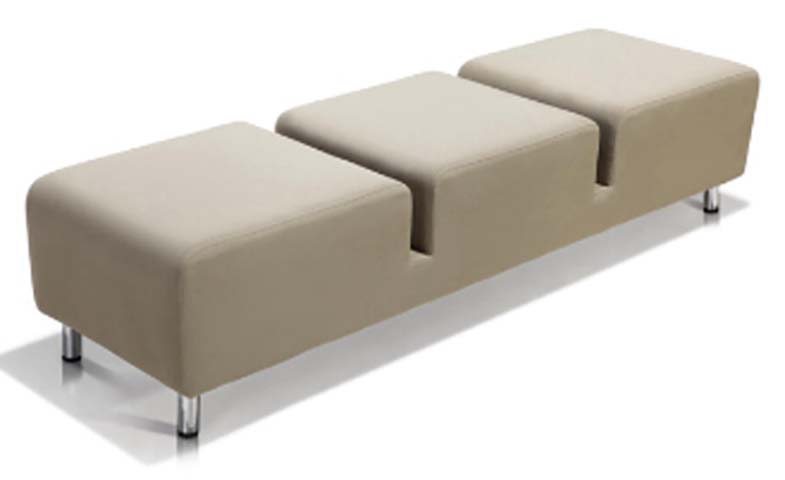

Open Export ToolKERTE’s UB-3S-001 is a 3-seat modular upholstered bench featuring chrome legs, designed to deliver balanced seating capacity and understated visual appeal across diverse settings. Its linear layout is composed of three independent seat blocks aligned into a single continuous unit, with narrow gaps between each module that define individual seating positions while mntning a cohesive low-profile rectangular silhouette. The backless design keeps sightlines open, and the polished chrome cylindrical legs create a sharp contrast agnst the matte woven fabric upholstery that covers both the seat surfaces and side panels in a uniform finish. Double-stitched seams line the perimeter of each cushion, adding subtle structural detl and visual refinement. Construction of the bench centers on a plywood and solid wood composite internal frame, pred with medium-density polyurethane foam cushion fill for supportive seating. The upholstery is a woven fabric with a matte finish, wrapped consistently across all visible exterior surfaces. Four chrome-plated cylindrical steel legs with a polished reflective surface support the frame at its outer corners, each fitted with a black plastic non-marking floor glide. Modules are aligned via a hidden internal bracket system that preserves the bench’s clean exterior lines, with no visible fasteners disrupting the upholstered surface. Functionally, the bench provides fixed-height static seating support for upright or relaxed use, with no adjustable height, tilt, or recline features. The four-corner leg placement delivers even weight distribution across the frame, while the plastic glides protect hardwood, tile, and laminate floors from scuffing and allow slight repositioning without lifting. The low-profile backless form optimizes space usage, maximizing seating capacity per floor area and enabling placement agnst walls or in narrow zones. Assembly involves attaching the legs to the pre-assembled upholstered body; no upholstery construction is required on site. The stn-resistant contract-grade fabric surface supports easy mntenance for high-use environments. This bench fits seamlessly into a wide range of commercial and residential spaces. In office reception and wting areas, it offers 3-seat visitor seating in a compact footprint that works where full sofas are too large, complementing contemporary office interiors. It serves as flexible linear seating in public lounge and breakout spaces, including co-working areas, staff lounges, and cafeteria overflow zones. For retl and showroom settings, its low backless profile does not block product sightlines, providing convenient rest seating for customers. It also works as durable seating for corridors and common areas in educational and institutional facilities. For residential use, it functions as an accent piece in foyers, living rooms, or at the foot of beds, with its neutral finish adapting to varied decor styles. Its stable build also supports use as temporary or rearranged seating for events and meetings. For procurement planning, the bench ships in two cartons, one holding the upholstered body and the other contning legs and hardware. Single-technician assembly focuses on leg attachment and basic inspection. Buyers should confirm fabric fiber composition, fire rating, and stn treatment specifications directly with the supplier, along with internal frame wood grade and thickness, foam density and firmness, and exact fastener detls for the modular connection system. The bench supports standard commercial seating load ratings per seat, making it suitable for regular public use with proper mntenance.
