PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 3600 × 705 mm
Overall X-layout dimensions	3600 x 3600 x 705 mm
Seat height from finished floor	470 mm
Seat depth per bench module	781 mm
Central backrest divider height	705 mm
Single seat module width	921 mm
Cube ottoman dimensions	450 x 450 x 450 mm
Round lounge side table height	550 mm
Side table top diameter	500 mm
Seat cushion thickness	120 mm
Backrest divider padding thickness	80 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load per single seat	260 kg
Static load per cube ottoman	150 kg
Static load per side table top	50 kg
Total modular seating capacity	16 seats
Seat foam density	45 kg/m³
Foam rebound rate	60%
Upholstery Martindale abrasion resistance	50000 cycles
Recommended commercial warranty	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal load-bearing frame	18mm thick plywood frame
Seat core padding	High-resilience polyurethane foam
Seat upholstery	Woven polyester performance fabric
Central backrest frame core	15mm thick plywood with foam wrap
Backrest upholstery	Dark grey woven polyester fabric
Module connecting hardware	Powder-coated steel interlocking connectors
Side table base	Matte white powder-coated steel three-prong base
Side table top	12mm thick matte white engineered stone/laminate
Cube ottoman internal frame	12mm thick plywood block structure
Seam stitch pitch	8 stitches per inch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Interlocking steel connectors secure adjacent seat/back modules
Four-directional seating orientation	Seats face outward from central X divider for unobstructed waiting access
Fixed stationary design	No recline, swivel, or mobility casters on bench modules
Movable cube ottomans	Freestanding ottomans can be repositioned as extra seating or footrests
Freestanding side tables	Lightweight metal-base tables can be relocated between seating sections
Non-slip base padding	Hidden felt/rubber pads under modules prevent floor scratching
Modular color customization	Interchangeable end segment colors for white, terracotta, olive finishes
Optional power integration	Pre-drilled cable access points available for USB/power modules
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Commercial office lobby	Multi-directional waiting seating for visitor reception in building entrances
Public library/reading area	Low-profile quiet seating for casual reading and study breaks
Corporate breakout space	Collaborative casual seating for informal team discussions
Hotel public waiting area	High-traffic durable seating for guest waiting near check-in or elevators
Hospital outpatient waiting zone	Easy-clean fabric modular seating for patient and visitor waiting
University campus common area	Durable lounge seating for student gathering between classes
Exhibition/trade show lounge	Quick-install modular seating for temporary event attendee rest areas
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1022:2018	Domestic furniture seating stability test standard for non-domestic use adaptation
EN 16139:2013	Strength/durability requirement for non-domestic public area seating
EN 14465:2003	Upholstery fabric abrasion and performance classification standard

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Lounge seating durability and safety standard for commercial installations
ANSI/BIFMA X6.1-2022	Occasional tables safety and performance standard for side units
ANSI/BIFMA e3-2019	Furniture sustainability standard for material and emissions compliance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applies to plywood frame structure
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood-based furniture
GB/T 19001-2016	Quality management system guidance for commercial furniture suppliers

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to plywood frame structure;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood-based furniture;
3. GB/T 19001-2016: Quality management system guidance for commercial furniture suppliers;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOUNGE-X4-MOD-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOUNGE-X4-MOD-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOUNGE-X4-MOD-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

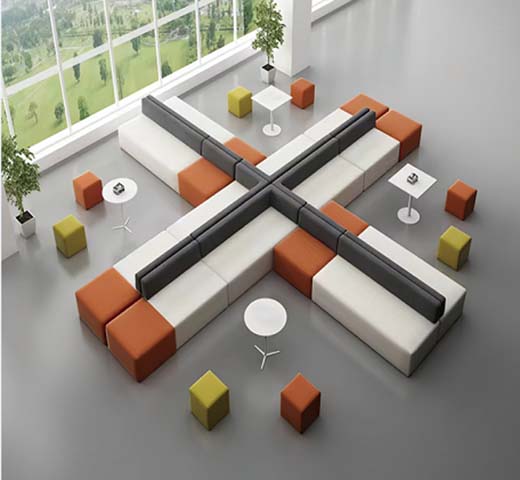

The X-Shaped Modular Lobby Lounge Seating Set with Ottomans and Side Tables, model LOUNGE-X4-MOD-001, is an unbranded commercial-grade modular seating solution structured in a symmetric X layout, with seats facing outward from a central backrest divider to support four-directional, unobstructed access for users. The set includes fixed bench modules, freestanding repositionable cube ottomans, and movable round side tables, arranged to deliver a cohesive, open seating configuration that accommodates 16 total seats at full setup.
Constructed for long-term high-traffic use, the seating features plywood internal frames for bench, backrest, and ottoman structures, paired with high-elastic, high-resilience polyurethane foam padding. Upholstery uses woven polyester performance fabric for seats, with dark grey woven polyester fabric covering the central backrest, finished with interchangeable end segments available in white, terracotta, or olive to match varied interior palettes. Adjacent seat and back modules lock together via powder-coated steel interlocking connectors for stable alignment, while hidden non-slip felt and rubber pads under all modules prevent floor scratching. Side tables feature matte white powder-coated steel three-prong bases and matte white engineered stone or laminate tops.
Practical design choices balance stability and flexibility: bench modules are fixed stationary with no recline, swivel, or casters for consistent placement, while cube ottomans can be moved freely to serve as extra seating or footrests, and lightweight side tables can be relocated between seating sections as needed. The upholstery holds a 50000-cycle Martindale abrasion resistance rating, with static load capacities of 260 kg per single seat, 150 kg per ottoman, and 50 kg per side table top. The 45 kg/m³ seat foam delivers a 60% rebound rate for sustained comfort during extended waits.
This set suits a wide range of high-foot-traffic spaces, including commercial office lobbies for visitor reception, public library reading areas for casual study breaks, corporate breakout zones for informal team discussions, hotel public waiting areas near check-in or elevators, hospital outpatient waiting zones for patients and visitors, and university campus common areas for student gatherings between classes.
For procurement planning, each set ships in 2 cartons, with an assembly time of 40 minutes per unit. Specified fixed dimensions include a 470 mm seat height, 781 mm seat depth per bench module, 705 mm overall central divider height, 450 mm cube ottoman profile, 550 mm side table height, and 500 mm side table top diameter, with the full X layout measuring 3600 mm in width and depth to support space planning. The packaging supports efficient bulk shipping for large-scale furnishing projects.

X-Shaped Modular Lobby Lounge Seating Set with Ottomans and Side Tables Specifications
