Automatic mm / inch conversion · Core engineering specifications

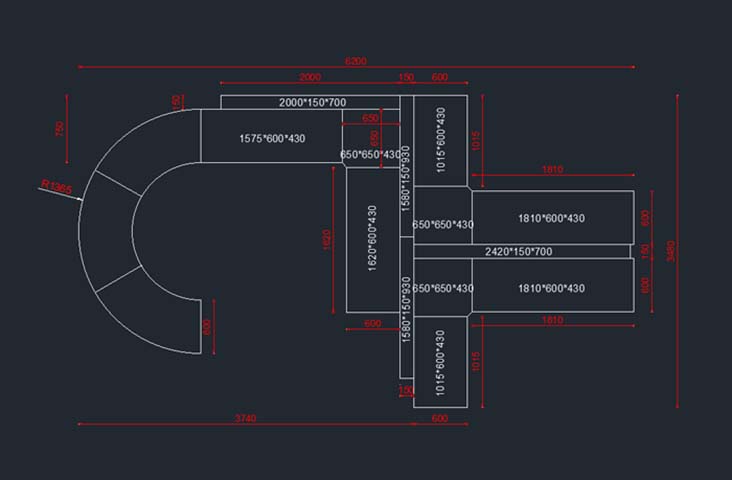

| Overall footprint | 6300 x 3480 mm | |
|---|---|---|
| Curved left end outer radius | R1365 mm | |
| Staff work surface depth | 600 mm | |
| Base cabinet module depth | 430 mm | |
| Upper front trim height | 700 mm | |
| End side trim panel height | 930 mm | |
| Corner module size | 650 x 650 x 430 mm | |
| Central visitor access gap width | 150 mm | |
| Curved end maximum depth | 750 mm | |
| Staff work surface height | 750 mm | |
| Front transaction counter height | 1100 mm | |
| Under-desk knee clearance height | 650 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Countertop static load capacity | 150 kg | |
|---|---|---|
| Recommended simultaneous staff capacity | 3 | |
| Product net weight | 680 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Structural design service life | 10 years | |
| Manufacturing dimensional tolerance | 0.1 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Base cabinet substrate | 25mm thick E1 grade high-density particle board | |
|---|---|---|
| Countertop surface | 0.8mm thick high-pressure laminate | |
| Edge banding | 2mm thick PVC edge banding | |
| Curved segment construction | 5-axis CNC machined MDF with thermoformed laminate | |
| Internal hardware | Cold-rolled steel connector brackets and screws | |
| Cabinet hinges | Stainless steel concealed hinges | |
| Drawer slides (if fitted) | 3-section ball-bearing steel slides | |
| Leveling feet | 12mm diameter adjustable nylon feet | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Modular assembly structure | Knocked-down pre-finished modules connected via cam-lock fittings | |
|---|---|---|
| Cable management system | 80mm diameter desk grommets with under-mount cable trays | |
| Central visitor access | 150mm wide through-pass between dual right counter returns | |
| Integrated storage base | Closed cabinet compartments in all 430mm deep modules | |
| Leveling adjustment | Adjustable base feet correct 20mm floor unevenness | |
| Optional power integration | Pre-drilled positions for power/USB/data outlets in work surface | |
| Curved transaction surface | Continuous rounded R1365 left end counter | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Corporate office lobby | Multi-station reception for large company headquarters, 3+ staff positions | |
|---|---|---|
| Hotel main entrance reception | Curved luxury front desk for check-in and concierge services | |
| Medical clinic waiting area reception | Easy-clean laminate surface for high-traffic healthcare environments | |
| Large co-working space entrance | Dual counter layout separates visitor check-in from member services | |
| Commercial showroom reception | Custom curved design creates brand-forward welcome point | |
| Public institution service hall | Accessible counter height configuration for public service interactions |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements | |
|---|---|---|
| EN 15372:2016 | Furniture, durability and strength for non-domestic storage |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products, safety and performance standard |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 4897.3-2003 | Particle board for furniture use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 3. GB/T 4897.3-2003: Particle board for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
