PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1740 × 775 mm
Seat height from floor	420 mm
Seat depth (usable)	610 mm
Backrest height above seat	355 mm
Terminal armrest width	216 mm
Seat cushion thickness	250 mm
Modular unit width per seat	793 mm
Floor clearance under sofa base	50 mm
Throw pillow size (included)	500 x 500 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall static load capacity	600 kg
Seat cushion foam density	35 kg/m³
Foam resilience rate	60%
Fabric abrasion resistance	30000 Martindale cycles
Seat support spring wire diameter	3.8 mm
Unit net weight	185 kg
Warranty (residential use)	3 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal frame	Kiln-dried solid hardwood, 30mm section thickness
Seat support system	3.8mm sinuous steel springs with polypropylene webbing
Cushion core	35kg/m³ high-density polyurethane foam wrapped in polyester fiber
Outer upholstery	Dark purple polyester woven performance fabric, 350gsm weight
Edge trim	White polyurethane contrast piping along all upholstery seams
Legs/base support	Powder-coated steel low-profile block feet, 2mm thickness
Backrest fill	Blown polyester fiber wrap over foam core for soft padded support
Seam construction	Reinforced stitched seams with 8 stitches per inch pitch
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection	All-metal interlocking brackets join adjacent units for stable configuration
Seating configuration	Continuous partial arc lounge layout for open-plan conversational seating
Assembly requirement	Tool-free leg attachment for final in-home setup, no structural assembly needed
Cushion design	Loose seat and back cushions for easy rotation and maintenance
Included accessories	4 coordinating accent throw pillows in solid and geometric patterns
Fabric maintenance	Spot-cleanable surface with stain-resistant treatment for residential use
Placement flexibility	Freestanding non-wall-mounted design, usable as centerpiece lounge set
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan residential living rooms	Curved arc layout supports 360-degree conversational seating arrangements
Luxury apartment lounge spaces	Low-profile plush design complements modern minimalist interior styling
Hospitality hotel lobby seating areas	Curved form creates inviting focal points for guest waiting zones
Open concept villa family rooms	Large multi-seat capacity accommodates group gatherings and casual relaxation
Designer home office waiting zones	Stylish contrast piping adds upscale decorative appeal for visitor seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable for domestic seating furniture: strength, durability and safety requirements
EN 1021-1:2014	Applicable for upholstered furniture: cigarette ignition resistance fire safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 1952.1-2012	Applicable for upholstered sofas: strength, durability and stability testing for residential use
GB 18401-2010	Applicable for textile upholstery: formaldehyde and harmful substance limit requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 1952.1-2012: Applicable for upholstered sofas: strength, durability and stability testing for residential use;
2. GB 18401-2010: Applicable for textile upholstery: formaldehyde and harmful substance limit requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CMS-PURPIPE-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CMS-PURPIPE-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CMS-PURPIPE-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

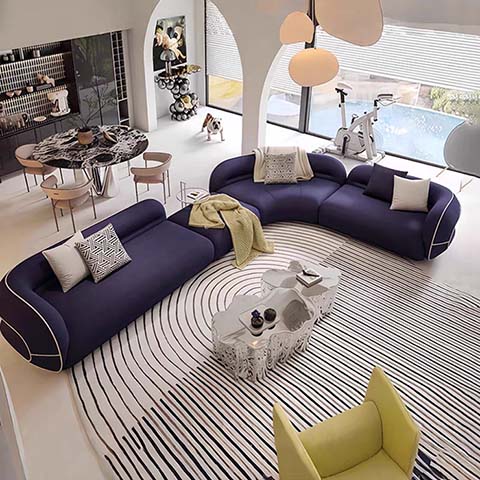

The Dark Purple Curved Modular Sectional Sofa with White Contrast Piping, model CMS-PURPIPE-3200, presents a smooth continuous partial arc lounge profile defined by crisp white contrast piping tracing all upholstery seams. Its freestanding, low-profile silhouette is finished in rich dark purple woven fabric, creating a striking visual focal point without requiring wall anchoring for placement. The sectional is structured with solid kiln-dried hardwood frames built to a stable section thickness, with a seat support system of sinuous steel springs and polypropylene webbing beneath thick high-density polyurethane foam seat cushions wrapped in soft polyester fiber. Backrests use a foam core wrapped in blown polyester fiber for plush, padded support, with all seams reinforced with consistent, durable stitching. The base sits on powder-coated steel low-profile block feet, creating a small open clearance beneath the sofa frame. Functionality is designed for flexible, low-maintenance use: all-metal interlocking brackets connect individual modular seating units for a stable, seamless arc layout, with loose seat and back cushions that can be rotated easily to extend usable life. The upholstery features a stain-resistant treatment that allows for simple spot cleaning in residential settings, and final setup requires only tool-free attachment of the feet, with no structural assembly needed for the pre-built modular units. Four coordinating accent throw pillows in solid and geometric patterns are included to complement the sofa’s finish. The curved arc configuration supports open, 360-degree conversational seating, making it well suited for open-plan residential living rooms, luxury apartment lounge spaces, open concept villa family rooms, and designer home office waiting zones. It also serves as an inviting focal point for hospitality hotel lobby guest waiting areas, aligning with modern minimalist interior styling while offering ample multi-seat capacity for group gatherings and casual relaxation. Procurement teams and residential buyers should note the sofa ships in two cartons per set, with a standard residential use warranty covering the product for three years. The modular freestanding design allows for flexible placement as a centerpiece lounge set, and the durable woven upholstery is constructed to withstand regular use across both private and light commercial shared spaces. Delivery planning should account for the packaged unit dimensions and weight to ensure smooth transport and access to intended installation spaces, with a typical assembly window of 40 minutes per set for final leg attachment and cushion placement.

Dark Purple Curved Modular Sectional Sofa with White Contrast Piping Specifications
