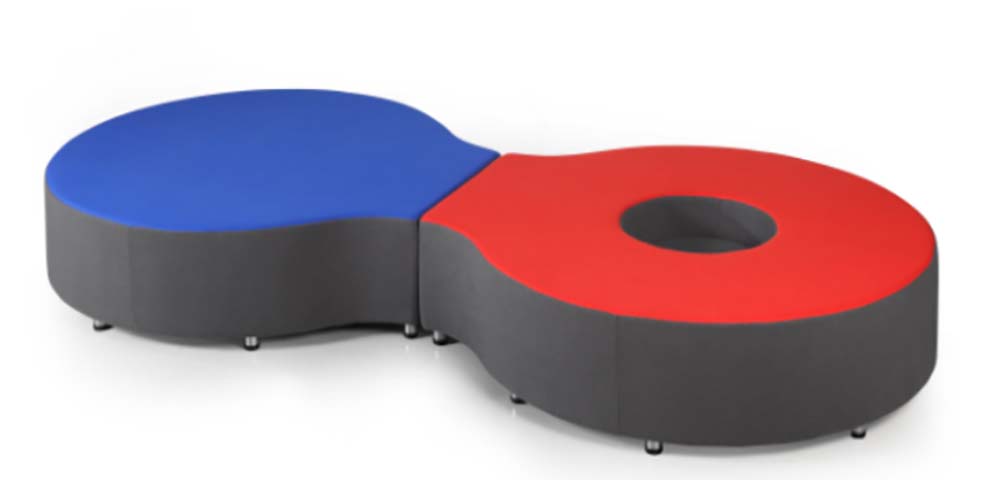

Two-Tone Interlocking Curved Modular Soft Seating Ottoman Bench (model MOD-OTT-CURV-2SEC-470H) is listed under Fabric Office Sofa, with overall dimensions of 2590 × 1295 × 470 mm and main material of Fabric. Load capacity: 181 kg. Certifications: modular,design,two-tone,upholstery,backless,movable,glide,feet,commercial,lounge,seating. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2590 x 1295 x 470 mm | |
|---|---|---|
| Seat height | 470 mm | |
| Blue curved module dimensions | 1295 x 749 x 470 mm | |
| Red curved module dimensions | 1295 x 749 x 470 mm | |
| Central circular cutout diameter | 300 mm | |
| Side panel upholstery height | 420 mm | |
| Seat padding thickness | 76 mm | |
| Metal glide height | 12 mm | |
| Module joint seam width | 10 mm | |
| Corner radius at module connection | 200 mm | |
| Base clearance under unit | 12 mm | |
| Seat surface usable depth per section | 680 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-module static load capacity | 181 kg | |
|---|---|---|
| Recommended total seat count | 4 users | |
| Seat foam density | 40 kg/m³ | |
| Foam rebound rate | 60% | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Total unit net weight | 55 kg | |
| Glide floor load rating per foot | 90 kg | |
| Structural warranty for frame | 12 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal frame | 19 mm commercial plywood and kiln-dried hardwood | |
|---|---|---|
| Seat padding | High-resilience polyurethane foam, flame-retardant treated | |
| Seat surface upholstery | Stain-resistant woven commercial fabric, blue and red color | |
| Side panel upholstery | Dark gray durable woven commercial fabric, matched to seat fabric grade | |
| Base support feet | Brushed metal glides with non-marking nylon bottom pads | |
| Module connection hardware | Powder-coated steel interlocking brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | Interlocking brackets allow independent or connected layout arrangement | |
|---|---|---|
| Mobility design | Low-profile glides enable repositioning without floor damage | |
| Surface maintenance | Stain-repellent fabric finish allows wipe-cleaning for high-traffic areas | |
| Floor protection | Non-marking nylon glide pads prevent scuffing on hard floor surfaces |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office breakout spaces | Provides flexible casual seating for employee collaboration and informal meetings | |
|---|---|---|
| Public waiting areas | Durable, easy-clean design suitable for clinic, education or lobby waiting zones |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Non-domestic seating strength, durability and safety requirements for public use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability: cigarette ignition resistance for contract spaces | |
| EN 13501-1:2018 | Fire classification of construction products applicable to public area furnishings |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Public and lounge seating performance standard for commercial furnishings | |
|---|---|---|
| ANSI/BIFMA X7.1-2011 | Standard for low-emitting formaldehyde and VOCs in office and public furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to plywood frame construction | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fabric upholstery, applicable for public furniture procurement | |
| GB/T 10357.3-2013 | Test method for furniture mechanical strength: seating surfaces, applicable for static load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to plywood frame construction; 2. GB 20400-2006: Limit of harmful substances in leather and fabric upholstery, applicable for public furniture procurement; 3. GB/T 10357.3-2013: Test method for furniture mechanical strength: seating surfaces, applicable for static load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
