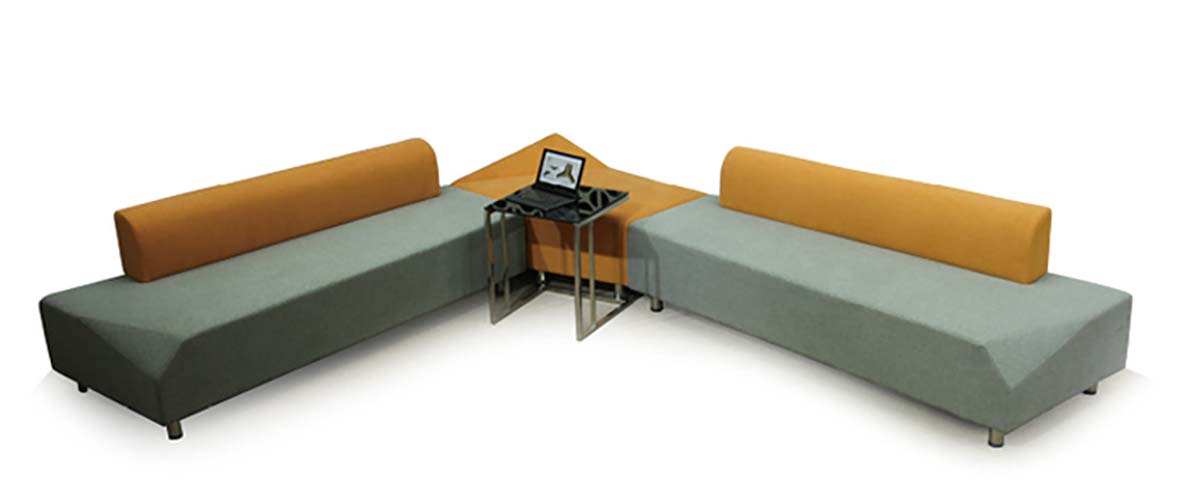

120-Degree 3-Piece Modular Corner Lounge Sofa Set with Side Table (model MLS-C120-GYOC-3P) is listed under Fabric Office Sofa, with overall dimensions of 3200 × 1800 × 750 mm and main material of Fabric. Load capacity: 160 kg. Certifications: Two-tone,grey/ochre,finish,armless,modular,design,low-profile,lounge,profile,metal,support,feet,matching,side,table. This page consolidates 6 groups of specifications and EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall set dimensions | 3200 x 1800 x 750 mm | |
|---|---|---|
| Seat height from floor | 460 mm | |
| Seat depth per linear module | 700 mm | |
| Seat width per linear armless module | 1000 mm | |
| Corner module footprint | 1000 x 1000 mm | |
| Backrest bolster height above seat | 290 mm | |
| Backrest bolster depth | 150 mm | |
| Support leg height | 100 mm | |
| Support leg diameter | 30 mm | |
| Matching side table dimensions | 550 x 550 x 460 mm | |
| Seat front bevel edge length | 120 mm | |
| Under-seat floor clearance | 70 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 152 kg | |
|---|---|---|
| Per-seat static load capacity | 160 kg | |
| Total set seating capacity | 5 people | |
| Seat cushion compression resilience | 60% | |
| Fabric Martindale abrasion resistance | 50000 cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm | |
| Recommended Procurement Warranty | Frame 10 years; filling 3 years; upholstery 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Commercial-grade grey woven polyester fabric | |
|---|---|---|
| Backrest upholstery | Commercial-grade ochre mustard woven polyester fabric | |
| Internal frame structure | 18mm plywood with engineered wood bracing | |
| Seat and back cushion fill | 40kg/m³ high-resilience polyurethane foam with 20mm polyester fiber wrap | |
| Support legs | 30mm diameter powder-coated tubular steel with non-slip plastic glides | |
| Included side table | Black patterned glass top with brushed stainless steel frame and legs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Module connection system | Under-seat steel latch connectors | |
|---|---|---|
| Seat edge design | Bevelled chiseled front profile | |
| Backrest design | Low cylindrical outer bolsters with angled corner back | |
| Floor protection | Non-marking plastic glides on all leg bases |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office lobby and reception areas | Provides casual multi-person seating for waiting visitors with integrated side table | |
|---|---|---|
| Co-working and breakout spaces | Supports informal meetings, laptop work and relaxed collaboration between teams |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Non-domestic seating strength, durability and stability for public waiting areas | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance for cigarette ignition source | |
| EN 1021-2:2014 | Upholstered furniture ignitability resistance for match flame ignition source |
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
