PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 900 × 850 mm
seat height from floor	470 mm
seat depth per module	700 mm
backrest height above seat	380 mm
single straight seat module size	800 x 800 x 850 mm
angled end segment length	800 mm
throw pillow dimensions	450 x 450 mm
corner module footprint	900 x 900 mm
seat cushion thickness	150 mm
backrest cushion thickness	120 mm
bottom base clearance from floor	5 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static load capacity	750 kg
net product weight	200 kg
foam density	45 kg/m³
foam rebound rate	60%
fabric abrasion resistance	50000 double rubs
seating fatigue cycle rating	100000 sit cycles
number of seated occupants	6
foam service life	5 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

internal frame	Solid pine + 15mm plywood skeleton
upholstery fabric	320g/m² woven commercial tech fabric
seat cushion fill	45kg/m³ high-resilience polyurethane foam
backrest fill	35kg/m³ medium-density polyurethane foam
modular connectors	Powder-coated steel interlocking brackets
base structure	Fabric-wrapped wooden base frame
throw pillow fill	100% polyester fiberfill
seam construction	Reinforced stitched seams with 30mm stitch pitch
upholstery underside	Non-woven fabric dust cover
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

modular reconfiguration	Interlocking steel connectors allow custom layout assembly
armless open design	No armrests between segments for flexible multi-directional seating
fixed non-reclining backrest	Integrated upright backrest with no tilt or recline mechanism
throw pillow support	Included matching fiberfill pillows for adjustable lumbar support
floor-placed stability	Low center of gravity with full base floor contact
upholstery spot cleaning	Stain-resistant fabric surface allows wipe-clean maintenance
custom length adjustment	Modules can be added or removed to match space requirements
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

office reception areas	Suitable for corporate lobby waiting spaces with modern open-plan design
business lounge zones	Ideal for informal meeting and breakout areas in commercial offices
public service halls	Appropriate for bank, hospital or government service waiting areas with high foot traffic
co-working common areas	Fits flexible shared workspaces for casual collaboration and rest
showroom display areas	Works as feature seating for product showrooms and experience centers
modern open-plan interiors	Matches minimalist and gradient color scheme interior design aesthetics

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13759:2006	Furniture - Seating - Test methods for the determination of strength and durability, applicable to performance verification
EN 1022:2005	Furniture - Seating - Determination of stability, applicable to floor-placed seating stability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame and structural safety
GB/T 1952.1-2012	Upholstered furniture sofas, applicable to softness, durability and structural performance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emissions

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural safety;
2. GB/T 1952.1-2012: Upholstered furniture sofas, applicable to softness, durability and structural performance;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emissions;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-SEC-1201-GRD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-SEC-1201-GRD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-SEC-1201-GRDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

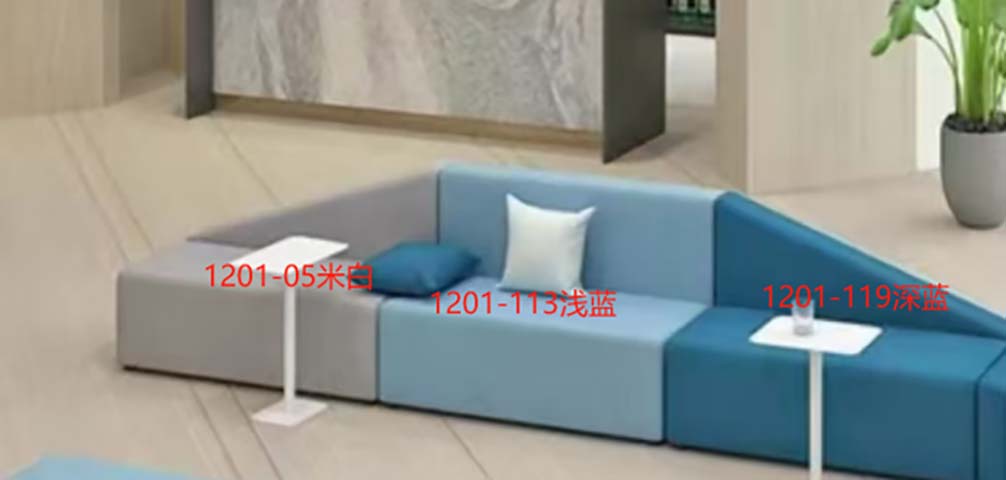

The Gradient Color Block Modular Armless Floor-Standing Sectional Lounge Sofa (model MOD-SEC-1201-GRD) is an unbranded public seating solution defined by its low-profile, legless floor-placed form and striking gradient color block upholstery. The overall unit measures 3600 x 900 x 850 mm, with a 470 mm seat height from the floor, 700 mm seat depth per module, and 380 mm backrest height above the seat; components include 800 x 800 x 850 mm straight seat modules, a 900 x 900 mm corner module, an 800 mm angled end segment, and matching 450 x 450 mm throw pillows, all arranged for open, unobstructed visual flow aligned with modern minimalist design aesthetics. Constructed for high-traffic public use, the sofa features an internal frame of solid pine and 15mm plywood, wrapped in a fabric-covered wooden base that sits fully flush with the floor for enhanced stability. Upholstery uses 320g/m² woven commercial tech fabric rated for 50000 double rubs of abrasion resistance, with reinforced stitched seams set to 30mm stitch pitch and a non-woven fabric dust cover on the underside. Seat cushions are filled with 45kg/m³ high-resilience polyurethane foam with a 60% rebound rate, paired with 35kg/m³ medium-density polyurethane foam backrests, 100% polyester fiberfill throw pillows, and powder-coated steel interlocking brackets to connect modules. The structure supports a total static load of 750 kg, and meets a 100000 sit cycle seating fatigue rating, with a total net weight of 200 kg. The sofa’s interlocking steel connectors enable full modular reconfiguration, with users able to add or remove modules to adjust total length and create custom layouts. The armless open design eliminates barriers between segments to support flexible multi-directional seating for up to 6 occupants, while the fixed upright non-reclining backrest maintains consistent structured support. Included matching throw pillows offer adjustable lumbar support, and the stain-resistant fabric surface supports simple spot cleaning for low-effort maintenance. The low, fully floor-contacting base delivers a low center of gravity for reliable stability during regular use. This sofa is suited for a range of public and commercial spaces, including corporate office reception lobbies, informal office breakout and business lounge zones, high-foot-traffic public service waiting areas in banks, hospitals and government facilities, co-working common areas for casual collaboration and rest, and product showroom display spaces seeking a signature seating piece aligned with gradient color scheme interiors. For procurement, note the product ships in 2 cartons per set, with a packaged gross weight of 110 kg per item and total packaging volume of 1.8 m³, requiring 40 minutes of assembly per set. Specify required module counts during ordering to match exact space dimensions, and account for the unit’s fixed low floor-placed profile when planning space layouts.

Gradient Color Block Modular Armless Floor-Standing Sectional Lounge Sofa Specifications
