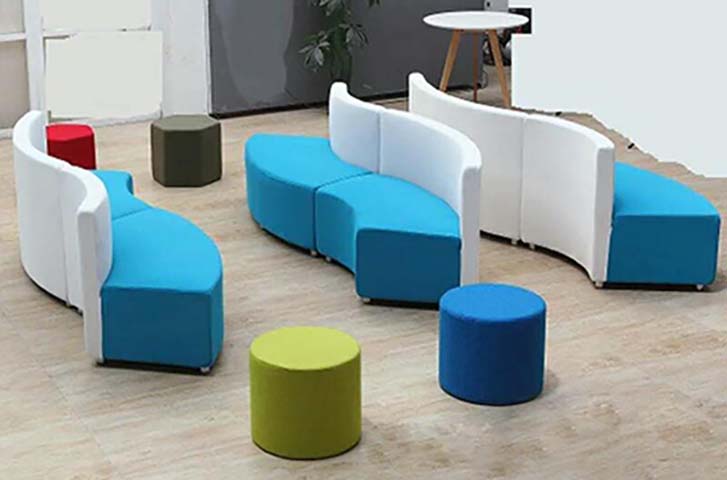

Product supplierModular Curved Office Lounge Seating Set with Ottomans, Woven polyester fabric, bright cyan blue color
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 3000 × 800 mm | |
|---|---|---|
| Overall assembled set footprint (5 curved seats + 4 ottomans) | 3600 x 3000 x 800 mm | |
| Single curved seat module dimensions | 800 x 750 x 800 mm | |
| Seat height from floor | 420 mm | |
| Backrest height above seat surface | 380 mm | |
| Seat cushion depth (usable) | 600 mm | |
| Round ottoman dimensions (blue/lime) | 450 mm diameter x 400 mm height | |
| Hexagonal ottoman dimensions (olive/red) | 400 x 400 x 400 mm | |
| Backrest panel thickness | 80 mm | |
| Seat base plinth height | 50 mm | |
| Overall assembled set footprint (7 curved seat modules + 4 ottomans, S-curve configuration) | 3600 x 3000 x 800 mm | |
| Single curved end seat module dimensions | 800 x 750 x 800 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set weight (all components) | 260 kg | |
|---|---|---|
| Per seat module static load capacity | 150 kg | |
| Fabric upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Total seated user capacity (main seats) | 5 | |
| Seat foam density | 35 kg/m³ | |
| Backrest foam density | 28 kg/m³ | |
| Warranty period (structural frame) | 5 years | |
| Caster rolling durability | 20000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat cushion upholstery | Woven polyester fabric, bright cyan blue color | |
|---|---|---|
| Backrest panel upholstery | Woven polyester fabric, matte white color | |
| Round ottoman upholstery | Woven polyester fabric, matching solid bright blue/lime green colors | |
| Hexagonal ottoman upholstery | Faux leather/vinyl, solid olive green/red colors | |
| Internal seat frame | 15mm thick plywood, reinforced corner blocking | |
| Seat cushion core | High-resilience polyurethane foam, 100mm thick | |
| Backrest core | Medium-density polyurethane foam, 60mm thick | |
| Floor contact points | 25mm diameter hard plastic glides, 1 per seat module corner | |
| Upholstery seam construction | Reinforced stitched seams, 8mm stitch pitch | |
| Floor contact points (seat modules) | 30mm diameter hard nylon casters, 1 per seat module corner, 360° swivel | |
| Floor contact points (ottomans) | 25mm diameter non-marking hard plastic glide pads, fitted to base perimeter | |
| Seat side panel core | 12mm thick particleboard, wrapped in 10mm foam layer under upholstery |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | Individual curved seat modules connect via hidden underside joining brackets to form S-curve, C-curve, or linear layouts | |
|---|---|---|
| Independent auxiliary seating | 4 standalone ottomans can be positioned freely around the seating set for extra guests, or used as footrests | |
| Mid-back ergonomic support | Curved backrest wraps around the seated user to provide lateral torso support for relaxed, long-duration waiting | |
| Freestanding floor installation | No wall fixing required; integrated glides protect hard flooring and allow minor repositioning without lifting | |
| Floor protection | Raised 50mm plinth base prevents fabric contact with wet floors and reduces scuffing during cleaning | |
| Color customization option | Upholstery available in multiple solid fabric and vinyl color options to match interior schemes | |
| Mobile seat repositioning | Each seat module is fitted with 4 swivel casters to allow individual unit repositioning without lifting, casters have no brake for easy layout adjustment | |
| Reconfigurable layout capacity | 7 seat modules can be arranged to form closed circular seating of 2200mm diameter, or linear straight seating of 5600mm total length | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping cartons | 9 cartons | |
|---|---|---|
| Per seat module carton dimensions | 820 x 770 x 420 mm | |
| Per ottoman carton dimensions | 470 x 470 x 420 mm | |
| Total shipment gross weight | 290 kg | |
| Total shipment CBM | 3.2 m³ | |
| On-site assembly time | 60 minutes | |
| 20ft GP container loading capacity | 18 sets | |
| Packaging protection | 5-layer corrugated carton, 20mm EPE foam edge wrap, plastic corner protectors | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception and waiting areas | S-curve layout creates welcoming informal seating for visitors, with ottomans to accommodate variable guest counts | |
|---|---|---|
| Co-working and open collaboration zones | Modular units can be rearranged to form small group discussion clusters for 9people | |
| Public library and educational institution lounges | Durable construction and approachable design support high daily traffic from students and visitors | |
| Healthcare clinic waiting rooms | Soft rounded edges and easy-to-reposition design creates accessible, low-hazard seating for patients | |
| Retail showroom and exhibition break areas | Bold color options and distinctive curved form create visual interest while providing functional rest seating for shoppers | |
| Lobby and breakout areas in creative offices | Soft, non-hierarchical curved layout encourages casual interaction and informal meetings between staff | |
| Event and exhibition temporary seating | Lightweight mobile modules can be quickly reconfigured for different event layouts, with flat-packed shipping for easy transport between venues | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Non-domestic seating strength, durability and stability requirements, recommended for commercial project acceptance | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability (cigarette ignition test), recommended for public area installation compliance | |
| EN 1021-2:2014 | Upholstered furniture flammability (match ignition test), recommended for high-traffic public lounge installation |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural stability and frame strength acceptance of this modular seating set | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for acceptance of internal plywood frame components | |
| GB/T 19833-2023 | Furniture seating test methods for strength, durability and stability, applicable for static load and fatigue testing | |
| GB 20286-2006 | Flame retardant performance requirements for public place furniture, applicable if installed in high-occupancy commercial spaces |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability and frame strength acceptance of this modular seating set; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for acceptance of internal plywood frame components; 3. GB/T 19833-2023: Furniture seating test methods for strength, durability and stability, applicable for static load and fatigue testing; 4. GB 20286-2006: Flame retardant performance requirements for public place furniture, applicable if installed in high-occupancy commercial spaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
