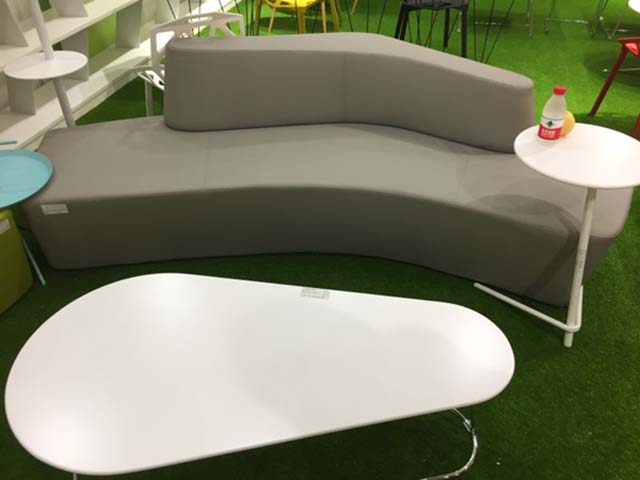

Product supplierLight Gray Curved Armless Modular Lounge Sofa, Light gray woven polyester contract fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 900 × 720 mm | |
|---|---|---|
| Seat height from floor | 420 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat | 300 mm | |
| Inner concave arc radius | 1200 mm | |
| Base plinth height | 100 mm | |
| Seat usable depth (front to back) | 600 mm | |
| Per-seat width (linear equivalent) | 800 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 75 kg | |
|---|---|---|
| Total static seat load capacity | 360 kg | |
| Seat foam density | 40 kg/m³ | |
| Fabric abrasion resistance (Martindale) | 50000 cycles | |
| Recommended maximum user count | 3 | |
| Net product weight | 75 kg | |
| Seat cushion polyurethane foam density | 40 kg/m³ | |
| Backrest polyurethane foam density | 30 kg/m³ | |
| Upholstery fabric Martindale abrasion resistance | 50000 cycles | |
| Recommended maximum seated occupant count | 3 |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Light gray woven polyester contract fabric | |
|---|---|---|
| Seat cushion core | High-resilience polyurethane foam | |
| Backrest cushion core | Medium-density polyurethane foam | |
| Internal structural frame | Kiln-dried hardwood + engineered wood composite | |
| Lower base plinth | Upholstered structural frame with integrated webbing support | |
| Internal support webbing | 80mm wide elastic webbing | |
| Seam construction | Hidden stitched seams with 8mm stitch pitch | |
| Identification label | Sewn fabric product label | |
| Outer upholstery fabric | Light gray matte woven polyester contract fabric, 360g/m² weight | |
| Seat support system | 80mm wide black elastic webbing, spaced 100mm apart across the seat frame, stapled to frame rails | |
| Upholstery seam construction | Hidden stitched seams with 8mm stitch pitch, bonded nylon thread | |
| Product identification label | Sewn woven fabric label with product code and care instructions |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Continuous curved armless bench seating | |
|---|---|---|
| Installation type | Fully assembled fixed floor placement | |
| Configuration capability | Modular compatible with matching curved segments | |
| Maintenance feature | Dry-cleanable removable upholstery panels (zippered) | |
| Stability feature | Low center of gravity solid plinth base | |
| Use flexibility | Supports both upright seating and relaxed reclined postures | |
| Seating ergonomics | Continuous concave curved armless bench seating with 3° backward seat tilt | |
| Installation requirement | Fully assembled fixed floor placement on level surfaces, no wall anchoring required | |
| Layout modularity | Connectable to matching curved segments via underside metal joining brackets | |
| Maintenance access | Zippered removable upholstery panels on seat and back, dry-clean compatible | |
| Posture support | Supports upright sitting, side perching and relaxed reclined postures | |
| Floor protection | Non-marking felt glides on plinth base reduce friction during repositioning |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 1 | |
|---|---|---|
| Shipping carton dimensions | 2480 x 980 x 800 mm | |
| Gross shipping weight | 85 kg | |
| Shipping volume per unit | 1.95 CBM | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading quantity | 14 units | |
| 40ft HQ container loading quantity | 34 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office open lounge areas | Suitable for employee breakout zones and informal meeting spaces, curved form encourages collaborative conversation | |
|---|---|---|
| Public reception and waiting areas | Ideal for corporate lobbies, healthcare waiting rooms, and educational institution common areas, 3-seat capacity accommodates visitor groups | |
| Co-working and flexible workspaces | Fits modular flexible seating layouts, can be combined with matching curved units to create custom circular or winding seating arrangements | |
| Exhibition and event spaces | Suitable for trade show booths, temporary event lounges and brand activation zones, neutral light gray finish coordinates with most event design palettes | |
| Outdoor covered patio spaces (indoor-grade only) | Usable in fully covered, weather-protected outdoor lounge areas, not rated for direct rain or prolonged sun exposure | |
| Office open breakout zones | Suitable for employee informal rest areas and ad-hoc collaborative discussion spaces; curved form encourages natural group interaction | |
| Corporate reception and waiting areas | Ideal for office lobbies, visitor waiting zones and facility common areas; 3-seat capacity accommodates small visitor groups | |
| Co-working flexible workspaces | Fits modular agile seating layouts; compatible with matching curved segments to create custom circular or winding seating arrangements |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1021-1:2014 | Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette, minimum fire safety requirement for public and commercial space upholstered seating | |
|---|---|---|
| EN 1021-2:2014 | Furniture - Assessment of the ignitability of upholstered furniture - Part 2: Ignition source match flame, recommended fire safety standard for high-traffic office and public lounge areas | |
| EN 16139:2013 | Furniture - Strength, durability and safety - Requirements for non-domestic seating, applicable performance standard for commercial lounge seating load and durability testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 20400-2006 | Leather and fur safety specifications, applicable if leather upholstery option is selected, requires formal test report for compliance verification | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal structural frame, requires verification of formaldehyde emission limits for wood-based components | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, mandatory requirement for indoor placement to control formaldehyde and VOC emissions | |
| GB/T 1952.1-2012 | Test methods for sofas, applicable for verifying static load, durability and stability performance for contract use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 20400-2006: Leather and fur safety specifications, applicable if leather upholstery option is selected, requires formal test report for compliance verification; 2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal structural frame, requires verification of formaldehyde emission limits for wood-based components; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, mandatory requirement for indoor placement to control formaldehyde and VOC emissions; 4. GB/T 1952.1-2012: Test methods for sofas, applicable for verifying static load, durability and stability performance for contract use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
