OFF-WAIT-L2-TB-001

Code：GDWGC7V1
Request supplier quotes

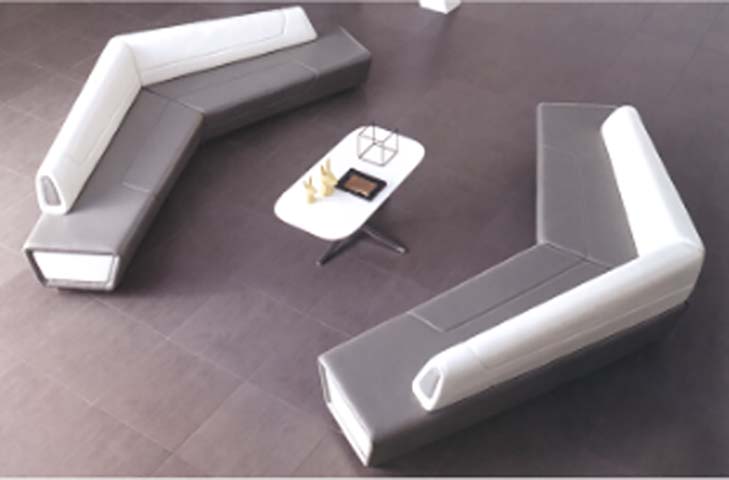

Modern L-shaped 2-piece modular public waiting bench with central side table Key Specifications 2026-08-06 11:05

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFF-WAIT-L2-TB-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall set footprint4200 x 3000 x 750 mm
Single L-shaped bench footprint2400 x 1800 x 750 mm
Seat height from floor450 mm
Seat depth550 mm
Backrest height above seat300 mm
Armrest/side panel height750 mm
Central side table footprint1200 x 600 x 450 mm
Table base leg span700 mm
Clearance between bench end and adjacent unit1800 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total seating capacity per L-bench unit4 persons
Total set seating capacity8 persons
Static load capacity per seat position150 kg
Single L-bench unit net weight85 kg
Seam stitch pitch30 mm
Upholstery abrasion resistance (Martindale)50000 cycles
Suggested commercial warranty3 years
Seat width per occupant position600 mm
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seating surface upholsteryDark grey matte faux leather (PU)
Backrest top/armrest/side outer shellGlossy white hard moulded composite (fiberglass-reinforced FRP or ABS)
Lower bench base panelMatte dark grey hard moulded composite matching outer shell finish
Seat cushion core40 mm thick high-density polyurethane foam, density 45 kg/m³
Backrest cushion core30 mm thick medium-density polyurethane foam, density 35 kg/m³
Internal bench support frame1.5 mm thick powder-coated square steel tube frame
Bench bottom foot glidesNon-marking nylon adjustable glides
Central side table topGlossy white solid surface or painted MDF panel, 25 mm thick
Side table support baseMatte black powder-coated 3-prong steel leg base, 2 mm thick steel
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seating configurationFixed L-shaped 4-seat per unit layout, two mirrored units arranged to form a semi-enclosed waiting zone
Upholstery cleaning suitabilitySmooth non-porous faux leather surface suitable for daily wipe-down with standard commercial disinfectants
Floor levelingAdjustable nylon foot glides compensate for ±10 mm uneven hard floor surfaces
Table functionCentral shared side table provides flat surface for placement of reading materials, decor, drinks or personal items at accessible height from all adjacent seat positions
Installation typeFreestanding non-fixed installation, no permanent floor anchoring required for standard use
Edge safety designAll outer frame and table edges are fully rounded with 30 mm radius to eliminate sharp impact points
Color configurationFixed two-tone white and dark grey finish, no optional fabric or shell color variants listed without supplier confirmation
Modular connectivityBench units are standalone and can be arranged in multiple layout combinations, no built-in connecting hardware required for adjacent placement
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Total number of shipping packages per full set6 packages
L-bench component carton dimensions1900 x 700 x 500 mm per carton
Table component carton dimensions1300 x 700 x 150 mm for table top, 800 x 800 x 200 mm for table base
Total gross weight per full set220 kg
Total shipping volume (CBM) per full set1.8 CBM
On-site assembly time per full set60 minutes
40ft HQ container loading quantity (full sets)38 sets
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate office reception areasSuitable for modern open-plan office lobbies and visitor waiting zones, semi-enclosed layout provides personal space for waiting guests while maintaining open sightlines for reception staff
Public institution service waiting areasSuitable for bank, hospital outpatient, government service hall and airport lounge waiting zones, durable easy-clean upholstery and robust construction withstand high daily foot traffic
Co-working and flexible office spacesSuitable for co-working lounge zones and breakout areas, freestanding design allows flexible reconfiguration to suit different event or seating layout needs
Premium showroom and exhibition waiting zonesSuitable for auto showroom, property sales center and trade show VIP waiting areas, sleek two-tone modern aesthetic supports high-end brand presentation
Education institution lounge areasSuitable for university student centers, library reading lounge zones and staff common rooms, appropriate seat height and supportive construction accommodate extended seated waiting time
Small reception breakout configurationCan be specified as single L-bench plus table for smaller 4-person waiting nooks, scaled to fit compact reception areas without sacrificing circulation space
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 Furniture - Strength, durability and safety - Non-domestic seatingApplicable acceptance reference for non-domestic public seating load capacity, durability and safety performance
EN 15372:2016 Furniture - Strength, durability and safety - Requirements for non-domestic tablesApplicable acceptance reference for central side table structural strength, stability and surface durability
EN 13722:2004 Furniture - Assessment of the surface resistance to cold liquidsApplicable acceptance reference for upholstery and table top stain resistance to common spills and cleaning agents
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for furniture: Wooden furnitureApplicable acceptance reference for table top panel structural integrity, surface finish durability and dimensional tolerance requirements
GB/T 27717-2011 Public seating furniture for waiting areasApplicable acceptance reference for seating static load, stability, durability and safety requirements for public waiting use
GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furnitureApplicable acceptance reference for formaldehyde and heavy metal emission limits for all composite panel components
GB/T 19943-2005 Furniture - Test for the stability of seatingApplicable acceptance reference for bench anti-tip stability testing under uneven load conditions
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for furniture: Wooden furniture: Applicable acceptance reference for table top panel structural integrity, surface finish durability and dimensional tolerance requirements;
2. GB/T 27717-2011 Public seating furniture for waiting areas: Applicable acceptance reference for seating static load, stability, durability and safety requirements for public waiting use;
3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable acceptance reference for formaldehyde and heavy metal emission limits for all composite panel components;
4. GB/T 19943-2005 Furniture - Test for the stability of seating: Applicable acceptance reference for bench anti-tip stability testing under uneven load conditions;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFF-WAIT-L2-TB-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFF-WAIT-L2-TB-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFF-WAIT-L2-TB-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This modern L-shaped 2-piece modular public waiting bench set, model OFF-WAIT-L2-TB-001, is offered as an unbranded commercial public reception seating solution. It features two mirrored L-shaped bench units positioned around a central shared side table to form a semi-enclosed waiting zone, with an open circulation pathway between units to support easy guest movement. The design uses a fixed two-tone finish: dark grey matte faux leather upholstery covers seating surfaces, paired with glossy white hard moulded composite outer frames for backrests and armrests, and matching matte dark grey composite lower base panels. The central table features a glossy white solid surface top supported by a matte black powder-coated 3-prong steel base. Internal construction relies on a powder-coated square steel tube support frame, high-density polyurethane foam for seat cushions, medium-density foam for low-profile backrests, and non-marking nylon adjustable foot glides for stable placement. Each L-shaped bench seats 4 people, for a total set capacity of 8, with per-seat dimensions aligned to standard ergonomic public seating guidelines. The smooth non-porous faux leather upholstery supports daily wipe-down cleaning with standard commercial disinfectants, and all bench and table edges carry a full rounded profile to eliminate sharp impact points. The freestanding units require no permanent floor anchoring, so layouts can be adjusted without specialized modification, and the adjustable glides compensate for minor unevenness in hard flooring surfaces. The central table sits at accessible height from all adjacent seats, providing a flat surface for reading materials, personal items, drinks, or decorative accents. This set is suited for a wide range of spaces, including corporate office reception lobbies, bank and government service waiting halls, hospital outpatient zones, airport lounges, co-working breakout areas, premium auto and property showrooms, and university student or library lounge spaces. Single bench and table configurations are also appropriate for compact 4-person reception nooks in smaller facilities. Procurement teams should note the set ships in 6 flat-packed packages, with on-site assembly requiring two technicians. The product carries a suggested 3-year commercial warranty reference, with upholstery rated to support high-traffic use. Material composition and dimensional values are aligned to standard commercial public seating specifications, with final details subject to supplier bill of materials confirmation prior to bulk order placement.
