PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2620 × 1300 × 750 mm
Overall footprint	2620 x 1300 x 750 mm
Seat height from floor	420 mm
Primary long section seat depth	670 mm
Side nook seat width	800 mm
Integrated backrest height above seat	330 mm
Integrated armrest width	180 mm
Throw pillow dimensions	450 x 300 mm
Plinth base height	120 mm
Armrest height above seat	220 mm
Seat cushion thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	300 kg
Seat core foam density	40 kg/m³
Fabric abrasion resistance	50000 Martindale cycles
Foam rebound rate	60%
Product net weight	95 kg
Structural frame warranty	10 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat
Upholstery Seam Pitch	4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Light grey textured boucle short-pile fabric
Internal load frame	Kiln-dried engineered hardwood composite
Seat support core	High-density polyurethane foam wrapped in dacron, pocket spring base
Backrest filling	35kg/m³ soft polyurethane foam with fiber wrap
Plinth base structure	Fully upholstered wood frame with black non-slip bottom trim
Throw pillows	Matching light grey boucle covers, polyfiber filling
Seam construction	8 stitches per inch concealed tailored seams
Frame moisture content	12%
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Two connected wraparound seating zones, organic serpentine layout
Modular connection	All-metal interlocking brackets join sectional segments for stable alignment
Backrest support	Continuous integrated wraparound back and arm enclosures for both seating positions
Floor contact	Full-width low plinth base distributes weight evenly, no exposed hard legs
Surface maintenance	Short-pile boucle fabric allows regular vacuuming and spot cleaning for light stains
Weight distribution	Plinth base eliminates floor indentation risk on soft flooring types
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping volume	1.51 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room lounge	Provides sculptural statement seating for contemporary open-plan living spaces
Boutique hotel reception lounge	Suits light commercial use in upscale lobby and break-out zones
Open-plan loft apartment placement	Low-profile plinth base fits spaces with minimal leg profile preferences
Two-person casual seating arrangement	Accommodates relaxed lounging and conversation across connected seating zones
Minimalist curated interior schemes	Soft rounded edges complement neutral, soft-contemporary interior palettes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating strength	EN 12520:2015
Upholstered furniture flammability	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture structural safety	GB/T 3324
Fabric safety for residential use	GB 18401Category B

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture structural safety: GB/T 3324;
2. Fabric safety for residential use: GB 18401Category B;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CURV-BOU-LGR-2SECT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CURV-BOU-LGR-2SECT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CURV-BOU-LGR-2SECTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

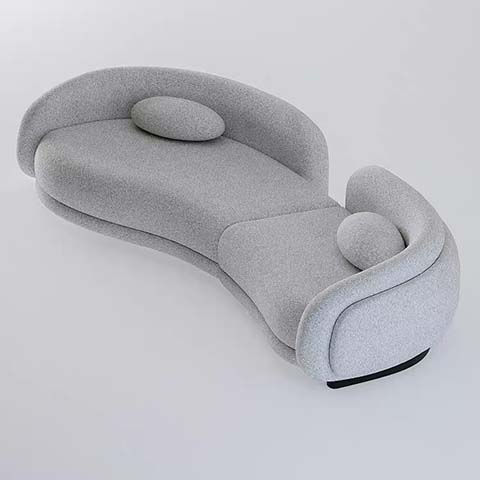

The Light Grey Boucle Asymmetric Curved Modular Sectional Sofa, model CURV-BOU-LGR-2SECT from an unbranded line, is a sculptural public and residential seating solution defined by its organic curvilinear, low-profile form. Its asymmetric serpentine layout creates two connected wraparound seating zones framed by continuous integrated back and arm enclosures, finished with a fully upholstered low plinth base that sits flush to the floor with no exposed hard legs, complemented by two matching light grey boucle throw pillows. The piece carries an overall footprint of 2620 x 1300 x 750 mm, with a 420 mm seat height, 120 mm plinth base, 670 mm deep primary long section seat, 800 mm wide side nook, 330 mm tall integrated backrest above the seat, and 180 mm wide integrated armrests, paired with 450 x 300 mm throw pillows for cohesive visual balance. Constructed for long-term use, the sofa features a kiln-dried engineered hardwood composite internal frame with 12% moisture content and primary sections measuring a minimum of 30 × 50 mm, built with 8 stitches per inch concealed tailored seams. The plinth base uses a fully upholstered wood frame with black non-slip bottom trim, while seating relies on a core of 40 kg/m³ high-density polyurethane foam wrapped in dacron over a pocket spring base, delivering 60% foam rebound, with backrests filled with 35kg/m³ soft polyurethane foam wrapped in fiber. The light grey textured short-pile boucle upholstery offers 50000 Martindale cycles of abrasion resistance, and the entire unit supports 300 kg of total static load at 95 kg net weight, backed by a 10-year structural frame warranty. Functionally, all-metal interlocking brackets join modular segments for stable alignment, the full-width plinth distributes weight evenly to eliminate floor indentation risk on soft flooring, and the short-pile boucle supports regular vacuuming and spot cleaning for light stains, with removable, replaceable cushion configurations for simplified upkeep. The sofa fits residential open-plan living rooms, boutique hotel reception lobbies and break-out zones, open-plan loft apartments, and minimalist curated interiors, supporting two-person relaxed lounging and conversation with soft rounded edges that complement neutral soft-contemporary palettes. For procurement, note the unit ships in 2 cartons per set with 1.8 m³ packaged volume and 110 kg packaged gross weight, requiring 40 minutes of assembly per set, and is suited for both residential and light commercial upscale environments aligned with low-profile, organic form preferences.

Light Grey Boucle Asymmetric Curved Modular Sectional Sofa Specifications
