PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4040 × 1400 × 790 mm
Seat height	420 mm
Seat depth	560 mm
Seat width per armless module	940 mm
Integrated connecting table dimensions	600 x 600 x 420 mm
Backrest height from seat surface	370 mm
Matching round coffee table dimensions	1200 mm diameter x 380 mm height
Plinth base height	50 mm
Throw pillow dimensions	450 x 450 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	150 kg
Foam density (seat cushions)	45 kg/m³
Foam rebound rate	60%
Total product net weight	180 kg
Fabric Martindale abrasion resistance	30000 cycles
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat
Upholstery Seam Pitch	4 mm
Recommended Procurement Warranty	Frame 10 years; filling 3 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal frame	Solid kiln-dried hardwood, 30mm thick frame members
Seat support system	3.6mm diameter sinuous steel springs, spaced 80mm apart
Seat cushion filling	45kg/m³ high-density polyurethane foam, 20mm top layer of down blend
Backrest filling	30kg/m³ high-resilience sponge with loose fiber wrap
Upholstery fabric	380g/m² cream matte woven polyester fabric, plain soft finish
Integrated table top	20mm thick dark walnut veneer MDF core, matte sealed finish
Plinth base	Upholstered engineered wood base with non-slip black felt bottom glides
Sewing construction	8 stitches per inch seam pitch, hidden zipper access for cushion covers
Throw pillow filling	Down and polyester fiber blend, removable velvet covers in warm brown
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Four armless curved seating units plus one central connecting table, reconfigurable via under-seat metal connectors
Seating capacity	4 people, conversation-oriented curved layout for face-to-face interaction
Cushion design	Fixed seat cushions with removable backrest and throw pillow covers for cleaning
Integrated surface function	Raised dark wood connecting table between seat modules for placing drinks, books or decor
Base design	Low-profile upholstered plinth base with no exposed legs, floor-level stability for large arc layout
Edge design	Fully rounded soft edges on all modules and table bases, no sharp corners for safe residential use
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Luxury residential living room	Suitable for open-plan large living spaces as a focal conversation seating group
High-end lobby lounge	Appropriate for luxury villa or upscale residential clubhouse reception areas
Open concept lounge space	Paired with matching round coffee table for complete casual lounge arrangement
Show home / model suite	Ideal for property show home staging to convey modern luxury design

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable to strength, durability and safety requirements for domestic seating furniture
EN 1021-1:2014	Applicable to upholstered furniture flammability test for smoldering cigarette sources

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable to general technical requirements for wooden furniture used in sofa frames
GB 20400-2006	Applicable to limit of harmful substances in leather/fabric upholstery materials
GB/T 1952.1-2012	Applicable to strength and durability test standards for upholstered sofas

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable to general technical requirements for wooden furniture used in sofa frames;
2. GB 20400-2006: Applicable to limit of harmful substances in leather/fabric upholstery materials;
3. GB/T 1952.1-2012: Applicable to strength and durability test standards for upholstered sofas;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CRV-MOD-CRM-4040

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CRV-MOD-CRM-4040

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CRV-MOD-CRM-4040Open Export Tool

Quick Actions

Post an RFQ

Product Description

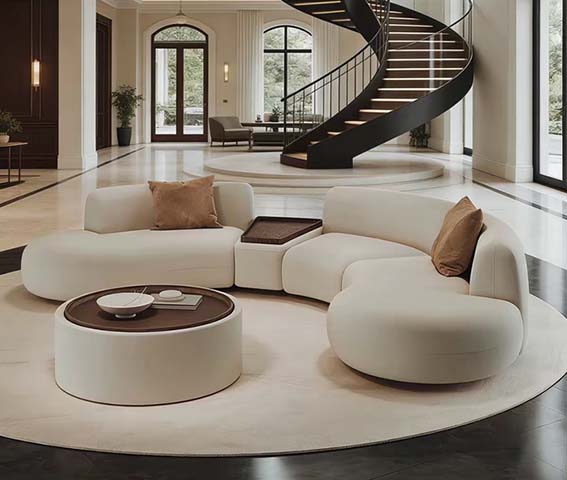

The Cream Upholstered Curved Modular Sectional Sofa with Integrated Side Table and Matching Coffee Table (model CRV-MOD-CRM-4040, unbranded) is a modern, minimalist modular seating solution designed for soft, welcoming spatial arrangements. Its four armless curved seating units form a gentle, conversation-oriented arc that encourages face-to-face interaction, anchored by a low-profile upholstered plinth base with no exposed legs for seamless, floor-level stability across its sweeping layout. All modules and table bases feature fully rounded soft edges with no sharp corners, paired with plush cream fabric upholstery and contrasting dark wood table surfaces for a warm, contemporary visual balance. The set includes a central integrated connecting table and matching round coffee table to complete a cohesive, polished seating group. Constructed for long-term residential and light commercial use, the sofa features an internal frame of kiln-dried solid hardwood with 30mm thick members, supported by 3.6mm diameter sinuous steel springs spaced 80mm apart for consistent, even weight distribution across every seat. Fixed seat cushions hold a core of 45kg/m³ high-density polyurethane foam topped with a 20mm down blend layer, delivering plush support with a 60% rebound rate, while backrests use 30kg/m³ high-resilience sponge wrapped in loose fiber for soft, yielding comfort. The 380g/m² cream matte woven polyester upholstery has a plain soft finish, with 8 stitches per inch seam construction and hidden zippers for easy removal of backrest and throw pillow covers for cleaning. The 20mm thick dark walnut veneer connecting table and matching coffee table tops carry a matte sealed finish, and the plinth base is fitted with non-slip black felt glides to protect flooring. Each seat supports a 150kg static load, and the cream upholstery delivers 30,000 Martindale abrasion cycles for durable daily use. Functionally, the modular design allows reconfiguration via under-seat metal connectors, supporting flexible layout adjustments to suit different spatial needs, while the raised central connecting table provides a convenient surface for drinks, reading materials, or decorative objects. The set seats four people, with a seat height of 420mm, seat depth of 560mm, and 940mm seat width per module for comfortable individual space. The 370mm backrest height offers gentle upper body support, while the included matching round coffee table measures 1200mm in diameter and 380mm in height to align with the sofa’s low-slung profile. Included throw pillows feature a down and polyester fiber fill with removable warm brown velvet covers to complement the cream upholstery. This seating set is well suited for luxury open-plan residential living rooms as a focal conversation group, high-end villa or upscale residential clubhouse lobbies, open-concept casual lounge spaces, and property show home staging to convey modern luxury design language. For procurement, note that each set ships in two cartons, with a reference assembly time of 40 minutes per set and total net weight of 180kg. The cream fabric upholstery requires regular gentle maintenance to preserve its soft finish, and reconfiguration is limited to compatible armless curved modules from the same product line to maintain structural stability and visual alignment.

Cream Upholstered Curved Modular Sectional Sofa with Integrated Side Table and Matching Coffee Table Specifications
