PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 750 × 1100 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity per seat position	150 kg
Total set weight	180 kg
Seat foam density	40 kg/m³
Fabric abrasion resistance	50000 Martindale cycles
Individual square seat module weight	28 kg
Divider panel weight	34 kg
Supported user count per 600mm seat module	1 person
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery fabric	Woven polyester commercial fabric in olive green and mustard yellow
Divider panel core	18mm thick MDF substrate with matte painted finish
Seat internal frame	Solid pine wood framing with plywood bracing
Seat padding	High-density polyurethane foam wrapped with 20mm soft polyester batting
Divider panel upholstery	Matching woven polyester fabric on panel faces
Panel cutout trim	PVC edge banding around rectangular divider window opening
Base bottom layer	Non-slip black felt floor protection pads
Module connection hardware	Heavy-duty metal connecting brackets hidden between adjacent units
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Individual seat and divider units connect via hidden brackets to form custom linear or angled seating layouts
Semi-private space division	Raised divider panels create visual separation between adjacent seating zones without fully blocking sightlines
Floor protection	Felt base pads prevent scuffing and scratching of hard floor surfaces during repositioning
Low-maintenance surface	Stain-repellent treated woven fabric allows spot cleaning of spills without disassembly
Freestanding installation	No wall anchoring required for stable placement on level hard floors
Flexible color grouping	Interchangeable green and yellow seat units allow custom color arrangement for brand coordination
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	6
Total shipping volume	2.1 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office open plan lounge areas	Provides informal collaborative seating with partial visual separation for team breakout spaces
Corporate reception waiting zones	Creates flexible multi-seat waiting areas with approachable modern styling for visitor use
Educational facility common areas	Durable modular configuration suitable for high-traffic student lounge and break spaces
Co-working space informal meeting zones	Reconfigurable layout supports small group discussions and ad-hoc work sessions
Public building lobby waiting areas	Sturdy construction and easy-clean fabric suit high-foot-traffic public circulation spaces
Exhibition and event temporary seating	Lightweight individual modules allow quick layout changes for short-term event use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applies to strength, durability and safety requirements for non-domestic seating
EN 1021-1:2014	Applies to upholstered furniture ignitability resistance to smouldering cigarette sources

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Applies to safety and performance requirements for lounge and public area seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applies to general technical requirements for wooden furniture used in commercial seating products
GB 18584-2001	Applies to limit of formaldehyde emission from wood-based panel components in indoor furniture
GB/T 19817-2005	Applies to safety and performance requirements for upholstered furniture for public use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applies to general technical requirements for wooden furniture used in commercial seating products;
2. GB 18584-2001: Applies to limit of formaldehyde emission from wood-based panel components in indoor furniture;
3. GB/T 19817-2005: Applies to safety and performance requirements for upholstered furniture for public use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-BANQ-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-BANQ-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-BANQ-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

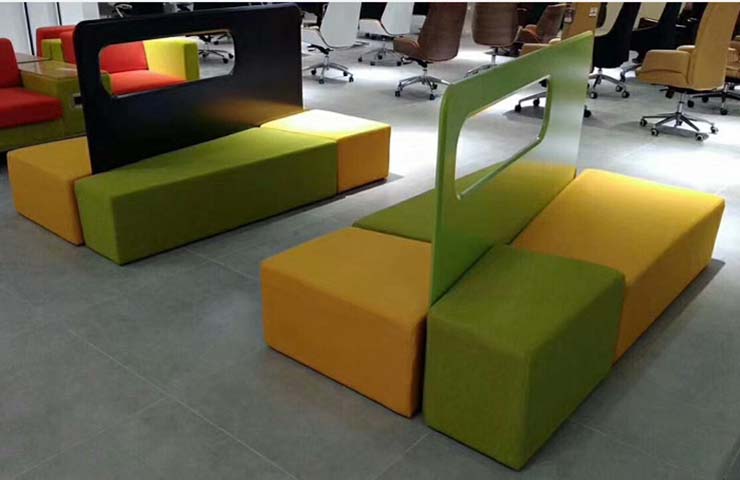

The Modular Upholstered Banquette Seating with Decorative Divider Panels, model MOD-BANQ-001, is an unbranded freestanding banquette seating solution defined by its clean, contemporary two-tone visual design in olive green and mustard yellow. Individual square seat modules and upright divider panels connect via hidden heavy-duty metal brackets to support fully custom linear or angled layouts, with raised divider panels featuring rectangular window openings trimmed with PVC edge banding to create soft visual separation between adjacent seating zones without fully blocking cross-space sightlines. The design blends soft upholstered surfaces with structured matte-finished divider forms to deliver approachable, modern visual appeal suitable for high-visibility public settings. Built for consistent heavy-use performance, the seating features a rigid internal frame constructed from solid pine wood with plywood bracing, supported by a 14 mm bent plywood internal seat support board. Seating surfaces are padded with 40 kg/m³ high-density polyurethane foam wrapped in 20mm soft polyester batting, delivering a 90 mm thick finished seat cushion, 70 mm thick backrest padding, and a 240 mm tall dedicated lumbar support zone, with a 125° recline angle across three suggested lock positions and 540 mm of clear width between armrests per position. Upholstery uses commercial-grade woven polyester fabric treated for stain repellence, rated for 50000 Martindale abrasion cycles, with matching fabric applied to divider panel faces built around an 18mm thick MDF core. Non-slip black felt pads line the base of every unit to protect hard floor surfaces, and each seat position supports a 150 kg static weight capacity, with individual seat modules weighing 28 kg and divider panels weighing 34 kg for manageable repositioning. Practical functionality is built for flexible public use: modules can be rearranged to create custom layouts, interchangeable green and yellow seat units support tailored color arrangements to align with brand palettes, the stain-repellent fabric allows simple spot cleaning of spills without disassembly, and no wall anchoring is required for stable placement on level hard floors. Each 600mm seat module accommodates one user, making the system suitable for open plan office lounge and breakout zones, corporate reception waiting areas, educational facility common spaces, co-working informal meeting zones, public building lobbies, and temporary exhibition or event seating. Procurement teams should note that each set ships across 6 cartons, with a reference assembly time of 40 minutes per set, total set weight of 180 kg, and total shipping volume of 2.1 CBM, with no permanent installation hardware required for deployment.

Modular Upholstered Banquette Seating with Decorative Divider Panels Specifications
