Name: Curved Modular Sectional Sofa with Right Side End Table
Brand: JUESHANGDA
SKU: JHDHYW

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

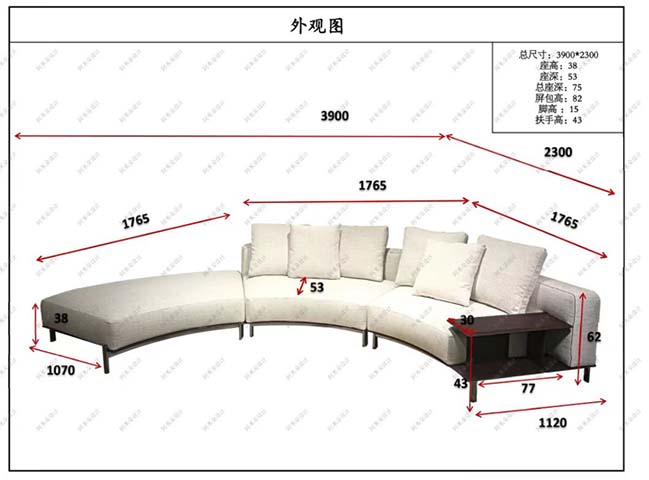

Overall dimensions (W × D × H)	3900 × 2300 × 820 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	5 people
Total product net weight	185 kg
Per-seat static load capacity	150 kg
Under-sofa floor clearance	150 mm
Cushion foam density	40 kg/m³
Cushion foam rebound rate	55%
Standard seating capacity	5 people
Per-seat dynamic impact durability	10000 cycles
Upholstery seam tensile strength	120 N
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Light beige woven linen-blend fabric, 350g/sqm, 20000 cycle Martindale abrasion resistance
Seat cushion core	40mm thick high-resilience polyurethane foam wrapped with 10mm soft down blend layer
Back cushion fill	Loose polyester fiber and down blend filling, removable via zipper closure
Internal support frame	Kiln-dried solid hardwood and 12mm thick plywood frame, screwed and doweled joints
Sofa support legs	1.5mm thick matte dark grey powder-coated carbon steel cylindrical legs
Integrated right side shelf	25mm thick dark walnut-look melamine faced engineered wood, with lower open storage shelf
Seat suspension system	8cm wide sinuous spring suspension with cross-support ties, no sag design
Seam stitching	Matching light color polyester thread, 8 stitches per 30mm seam pitch for durable seams
Floor protection glides	Injection-molded non-slip polyethylene glides fitted to each leg base
Module connecting hardware	2mm thick zinc-plated steel bracket connectors under each module joint
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular assembly	Three equal curved segments connected via heavy-duty metal connecting brackets under the frame
Cushion reversibility	Seat and back cushions are fully removable and reversible for extended wear life
Integrated side storage	Right side shelf provides a flat surface for placing table lamps, drinks or books, plus lower open storage
Under-sofa access	150mm floor clearance allows standard robot vacuums to pass under the entire sofa base
Cushion maintenance	All upholstery covers feature hidden zippers for removal and dry cleaning access
Floor protection	Each metal leg is fitted with a non-slip plastic floor glide to prevent hard floor scratching
Under-sofa clearance access	150mm floor clearance allows standard robot vacuums to pass under the entire sofa base
Cushion maintenance access	All upholstery covers feature hidden zippers for removal and professional dry cleaning
Floor surface protection	Each metal leg is fitted with a non-slip plastic glide to prevent hard floor scratching
Chaise extended lounging	Left curved chaise segment supports full leg extension for relaxed reclined seating
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520	2015 Furniture - Strength, durability and safety - Requirements for domestic seating, applies to residential sofa structural performance
EN 1021-1	2019 Furniture - Assessment of the ignitability of upholstered furniture - Ignition source smouldering cigarette, applies to fabric fire safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CURV-MOD-SEC-3900

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CURV-MOD-SEC-3900

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CURV-MOD-SEC-3900Open Export Tool

Quick Actions

Post an RFQ

Product Description

The JUESHANGDA CURV-MOD-SEC-3900 Curved Modular Sectional Sofa with Right Side End Table offers a streamlined, contemporary seating solution defined by its soft arcing silhouette. Designed as three equal curved modular segments, the piece forms a gentle, welcoming continuous curve that anchors open living areas without the sharp lines of traditional sectional designs. An integrated end table is built seamlessly into the right end of the frame, creating a cohesive visual flow rather than requiring separate accent furniture, while matte dark grey cylindrical metal legs lend a light, elevated aesthetic that keeps the profile from feeling bulky. The sofa is upholstered in light beige woven linen-blend fabric, accented with matching light-toned polyester stitching for a polished, understated finish, and comes with coordinated throw pillows to complete its relaxed, refined look. Construction prioritizes long-term durability and comfort. The internal frame uses kiln-dried solid hardwood and 12mm thick plywood, joined with screws and dowels for structural stability, supported by an 8cm wide sinuous spring suspension system with cross-support ties to maintain consistent seat shape over time. Seat cushions feature a high-resilience polyurethane foam core wrapped in a soft down blend layer, measuring 180mm thick, while 160mm thick back cushions hold a loose polyester fiber and down blend fill. The 1.5mm thick powder-coated carbon steel legs lift the sofa 150mm above the floor, with non-slip polyethylene glides at each base to prevent hard floor scratching. The integrated right side shelf is crafted from 25mm thick dark walnut-look melamine faced engineered wood, with a lower open storage compartment for easy access to everyday items. Functionally, the sofa seats five people, supporting a per-seat static load of 150kg. Its modular segments connect via heavy-duty under-frame metal brackets for secure assembly, which takes 40 minutes for a full set delivered in two cartons. All seat and back cushions are removable and reversible to extend wear life, with hidden zippers on upholstery covers to allow removal for dry cleaning. The flat top surface of the integrated shelf holds table lamps, drinks, or reading materials, while the lower open shelf stores frequently used items within arm’s reach. The 150mm under-sofa clearance allows standard robot vacuums to pass fully beneath the base for simplified floor maintenance. This sectional is well suited for open-concept living rooms, residential lounge areas, boutique hotel guest suites, and collaborative breakout spaces in casual office settings. It pairs well with neutral and warm-toned interior palettes, offering a softer alternative to angular modular seating arrangements. When procuring the unit, teams should account for the 1.8 cubic meter total packaging volume and packaged gross weight per shipping carton to plan appropriate delivery and handling logistics, and confirm access pathways can accommodate the individual module carton dimensions to avoid installation barriers. The light fabric upholstery should be placed in spaces where regular dry cleaning maintenance is feasible to preserve its appearance over extended use.
