MOD-PUZZLE-6PC-MULTI

Code:JQJ0B2V1
Request supplier quotes

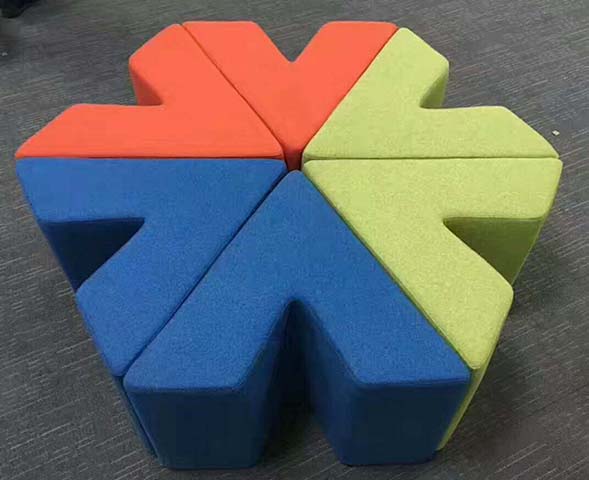

Modular Puzzle-Shaped Upholstered Ottoman Set (6-Piece, Flower Configuration) Key Specifications 2026-08-02 17:45

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-PUZZLE-6PC-MULTI

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall assembled size (flower form)1200 x 1200 x 450 mm
Single module maximum length700 mm
Single module maximum width300 mm
Seat height450 mm
Single module base width (narrow end)180 mm
Foam cushion thickness100 mm
Internal frame height350 mm
Top surface area per module0.16 m²
Assembled footprint area1.1 m²
Single module base width (narrow inner end)180 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Per-module weight reference4 kg
Total set weight reference24 kg
Per-module static load capacity120 kg
Foam density reference30 kg/m³ | Standard medium-density polyurethane foam used in contract lounge ottomans; procurement reference value, not supplier-measured
Fabric abrasion resistance reference50000 rubs | Typical contract-level woven fabric durability for commercial public seating; procurement reference, not certified for this product
Number of modules per set6 pieces
Module interchangeabilityFull interchange
Foam density30 kg/m³
Fabric abrasion resistance50000 rubs
Per-module weight4 kg
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Top seating surfaceWoven polyester/linen-blend upholstery fabric
Side vertical surfaceSame woven upholstery fabric, fully wrapped
Cushioning fillPolyurethane foam core
Internal support framePlywood or particleboard inner frame
Base bottomNon-slip fabric or felt underside with glide pads
Module edgesFoam-edged with fabric sewn corners
Sewn seamsPolyester thread stitched seams at module joints
Color set3-color palette: orange, lime green, royal blue
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfiguration6 identical puzzle-shaped modules that assemble into a closed flower/hexagonal cluster or split into individual stools
Independent seating functionEach module works as a standalone low stool for one user
Soft-impact protectionFully upholstered foam construction suitable for play areas and open public spaces
Floor placementStationary floor-mounted ottoman set with no casters
Expandable configurationAdditional identical sets can be combined to create larger modular seating layouts
Maintenance featureFabric surface supports spot cleaning for commercial and educational environments
Load distributionFlat top surface distributes seated weight across full module footprint
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging unit count (one full set)6 cartons
Single module carton dimensions720 x 320 x 470 mm
Single module gross weight5 kg
Total set gross weight30 kg
Total set CBM0.65 m³
20GP container loading quantity320 sets
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Children's play and learning areasSuitable for preschools, daycares and activity centers where soft, rearrangeable low seating supports group play and flexible seating layouts
Open-plan office breakout zonesSuitable for informal collaboration, short waiting areas and touchdown seating in creative office environments
Libraries and reading cornersSuitable for casual reading nooks and flexible study spaces where users can arrange seats individually or in clusters
Retail and public waiting areasSuitable for store lounges, mall waiting zones and museum family areas where colorful modular seating adds visual interest while providing flexible capacity
Event and exhibition spacesSuitable for pop-up lounges, brand activations and temporary event setups due to lightweight, transportable and reconfigurable design
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Upholstered furniture - Domestic and contract useEN 12520
Flammability of upholstered seatingRecommended references: EN 1021 EN 1021
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Upholstered seating - Lounge seating unitsRecommended references: ANSI/BIFMA X2022
Environmental standard for furnitureRecommended references: ANSI/BIFMA e3
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Flammability of upholstered furnitureRecommended references: GB 20286
Formaldehyde emission for wood-based panelsRecommended references: GB 18580
Upholstered furniture physical and mechanical propertiesRecommended reference: GB/T 16799
Standard Tender Description
This product must meet the following technical requirements:
1. Flammability of upholstered furniture: Recommended references: GB 20286;
2. Formaldehyde emission for wood-based panels: Recommended references: GB 18580;
3. Upholstered furniture physical and mechanical properties: Recommended reference: GB/T 16799;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-PUZZLE-6PC-MULTI

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-PUZZLE-6PC-MULTI

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-PUZZLE-6PC-MULTIOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The KERTE MOD-PUZZLE-6PC-MULTI is a 6-piece modular puzzle-shaped upholstered ottoman set designed for flexible soft seating arrangements. When fully assembled in its signature flower configuration, the set forms a cohesive radial layout with all six identical modules joined at their narrow inner ends, creating a visually playful and functional seating cluster. The set features a 3-color palette of orange, lime green, and royal blue, with two modules in each hue, delivering a vibrant, dynamic aesthetic that suits lively public and private spaces. Constructed with woven polyester/linen-blend upholstery fabric covering all top and vertical surfaces, each module has a polyurethane foam core for cushioned support, with a medium foam density suited for contract lounge applications. An internal rigid frame mntns structural shape, while foam-edged, fabric-sewn corners create soft, rounded edges across every unit. The base of each module includes a non-slip underside with glide pads to protect flooring during repositioning. All modules share identical geometry, enabling full interchangeability within the set or across additional matching sets. In practice, the set offers multiple functional benefits. It can be arranged as a unified flower-shaped cluster for group seating, split into six individual low stools for separate use, or expanded by combining extra sets to form larger custom layouts. Each module supports static load capacity for adult or child seating, with a flat top surface that distributes weight evenly across the unit’s footprint. The fully upholstered foam construction provides soft-impact protection, making the seating appropriate for high-activity areas. The woven fabric surface supports spot cleaning, simplifying upkeep for high-traffic environments. This ottoman set fits a wide range of commercial and residential spaces. It works well in children’s play and learning areas such as preschools, daycares, and activity centers, where its low seat height, padded edges, and playful shape align with child-oriented design needs. In open-plan office breakout zones, it supports informal collaboration, short wting periods, and touchdown seating, with modular geometry that adapts to different group sizes. It also suits libraries and reading corners for casual study nooks, retl and public wting areas including store lounges and mall wting zones, and event or exhibition spaces for pop-up lounges and brand activations, thanks to its lightweight, transportable design. For procurement planning, each set consists of six individually packaged modules for knockdown distribution, with each unit light enough for easy manual repositioning. Buyers should note that exact fiber composition, foam density specifications, and fabric cleaning codes require confirmation from the supplier, as do final carton dimensions and loading quantities for large-scale orders. The set’s contract-grade fabric durability supports long-term use in commercial settings, while its modular design reduces replacement costs, as individual modules can be replaced separately if damaged.
