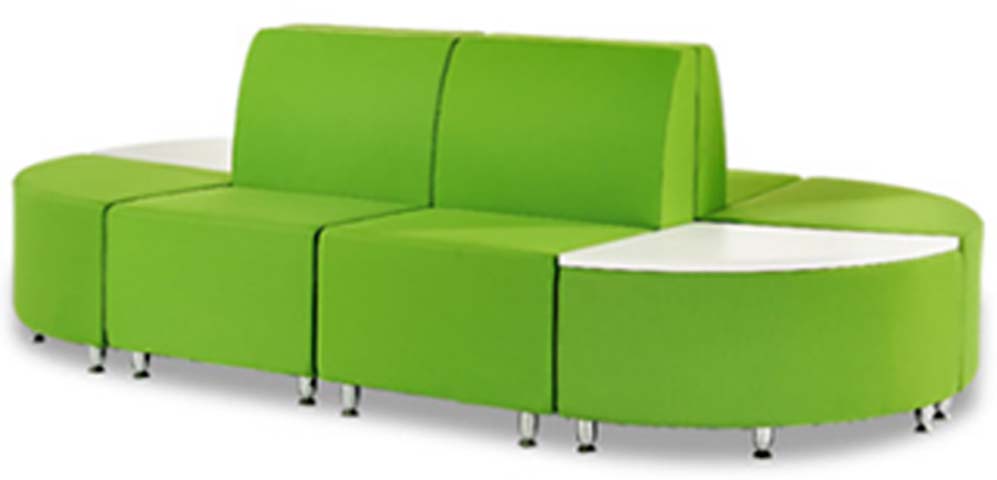

Product supplierCurved Modular Lounge Seating with Integrated Side Tables, Woven polyester fabric in bright green finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 1400 × 900 mm | |
|---|---|---|
| Seat height (floor to top of cushion) | 450 mm | |
| Backrest height (seat to top of back) | 450 mm | |
| Seat depth (front edge to backrest) | 600 mm | |
| Individual armless seat unit width | 700 mm | |
| Curved end ottoman unit width | 650 mm | |
| Integrated side table top dimensions | 700 x 450 mm | |
| Table top height above floor | 600 mm | |
| Metal leg height (base to seat frame) | 100 mm | |
| Upholstered base height (floor to seat top) | 450 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total seating capacity | 4 users | |
|---|---|---|
| Seat static load rating | 150 kg per seat | |
| Table top static load rating | 50 kg | |
| Net weight (full assembled set) | 95 kg | |
| Upholstery abrasion resistance (double rubs) | 50000 cycles | |
| Foam compression set resistance | 10% max loss after 50000 cycles | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Module interlock pull-out resistance | 800 N | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and backrest upholstery | Woven polyester fabric in bright green finish | |
|---|---|---|
| Seat and backrest core padding | High-density polyurethane foam, 100 mm thick seat / 80 mm thick back | |
| Internal structural frame | Engineered wood composite (particleboard or plywood) frame, 18 mm panel thickness | |
| Support legs | Chrome-plated steel cylindrical legs, 50 mm diameter, with black plastic glide feet | |
| Integrated side table tops | White high-pressure laminate (HPL) surface on wood composite substrate, 25 mm thick | |
| Unit connectors | Hidden plastic or metal interlocking brackets between modular units | |
| Base upholstery enclosure | Same green woven fabric wrapping seat base sides | |
| Seat core padding | High-density polyurethane foam, 100mm thick, with 35kg/m³ density grade | |
| Backrest core padding | High-density polyurethane foam, 80mm thick, with 30kg/m³ density grade | |
| Table base enclosure | Bright green woven polyester fabric wrapping over wood composite base frame, matching seat upholstery | |
| Module interconnection hardware | Hidden zinc-plated steel interlocking brackets with plastic insertion guides, mounted on internal frame sides | |
| Seat base dust cover | Black non-woven polypropylene fabric stapled to frame underside |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | 5 individual units (2 backrest seats, 2 end ottomans, 1 table unit) can be rearranged or extended with matching modules | |
|---|---|---|
| Integrated side table surfaces | 2 fan-shaped table units provide horizontal work/display surface at 600 mm height, matching the curved lounge layout | |
| Floor protection glides | Each leg is fitted with a non-marking black plastic glide to prevent floor scratching and allow gentle positioning | |
| Back support for center seats | 2 central units include upright padded backrests for full upper-body support during extended sitting | |
| Curved perimeter layout | Semicircular footprint supports face-to-face group interaction and collaborative discussion | |
| Curved perimeter conversation layout | Semicircular footprint supports face-to-face group interaction for 4 users, with enclosed seating arrangement suitable for collaborative discussion | |
| Stable multi-point support | Each modular unit is supported by 4 chrome-plated steel legs distributed at corners, providing uniform load distribution and anti-tilt stability | |
| Easy tool-free assembly | Modules connect via hidden interlocking brackets that snap into place without tools, and legs are pre-installed before shipping | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging units per full set | 5 cartons | |
|---|---|---|
| Reference carton size (per seat unit) | 800 x 700 x 550 mm | |
| Reference carton size (per table unit) | 800 x 600 x 450 mm | |
| Reference gross weight per seat unit | 20 kg | |
| Reference gross weight per table unit | 15 kg | |
| Total shipment volume (5 units) | 1.8 CBM | |
| Assembly time per set | 45 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office breakout and lounge areas | Ideal for corporate office relaxation zones, supporting informal meetings, individual rest, and casual team collaboration | |
|---|---|---|
| Reception and waiting areas | Suitable for lobby and visitor waiting spaces, providing 4-person seating with integrated surfaces for drinks or personal items | |
| School and library collaborative zones | Appropriate for educational facility common areas where students work in small groups or read independently | |
| Co-working space common areas | Fits open-plan co-working environments where flexible, multi-user seating is required between dedicated workstations | |
| Corporate office breakout and lounge areas | Ideal for corporate office relaxation zones, supporting informal meetings, individual rest and casual team collaboration for 4people | |
| Building lobby and reception waiting areas | Suitable for lobby and visitor waiting spaces, providing 4-person seating with integrated surfaces for drinks or personal items | |
| Hospital and healthcare waiting rooms | Suitable for outpatient waiting areas with moderate traffic, offering comfortable seating with nearby surfaces for personal belongings | |
| Exhibition and event venue temporary lounges | Applicable for trade shows, corporate events and pop-up spaces where quick assembly and reconfigurable seating is required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Furniture - Seating - Determination of stability; applicable to all seating units | |
|---|---|---|
| EN 1335-2:2019 | Office furniture - Office work chair - Part 2: Safety requirements; partially applicable to seat structural strength | |
| EN 13722:2019 | Furniture - Upholstered furniture - Assessment of the resistance of fabrics and leather to abrasion; applies to upholstery fabric | |
| EN 14534:2005 | Furniture - Seating - Test methods for the determination of strength and durability of upholstered seats and backs; applicable to seating modules |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Office Lounge Seating - Tests; applicable to the full modular seating set | |
|---|---|---|
| ANSI/BIFMA X6.1-2017 | Educational Seating Standard - Tests; applicable if deployed in school or training lounge areas |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standards and test results require confirmation | |
|---|---|---|
| GB/T 28478-2012 | Upholstered furniture - Soft filler materials - Test methods; applies to polyurethane foam padding | |
| GB 18401-2010 | National general safety technical code for textile products; applies to upholstery fabric | |
| GB/T 16799-2008 | Furniture - Upholstered furniture - General technical requirements; applicable to the full seating set |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standards and test results require confirmation; 2. GB/T 28478-2012: Upholstered furniture - Soft filler materials - Test methods; applies to polyurethane foam padding; 3. GB 18401-2010: National general safety technical code for textile products; applies to upholstery fabric; 4. GB/T 16799-2008: Furniture - Upholstered furniture - General technical requirements; applicable to the full seating set; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
