MOD-CURV-8SEC-LOUNGE

Code:KHL790V1
Request supplier quotes

Modular Curved Multicolor Upholstered Lounge Bench Key Specifications 2026-08-06 11:02

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-CURV-8SEC-LOUNGE

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall assembled dimensions3200 x 1200 x 420 mm
Single standard seat module dimensions600 x 600 x 420 mm
Raised backrest end module dimensions600 x 300 x 200 mm
Seat surface height from floor420 mm
Single module seat foam padding thickness100 mm
Inner curve concave clearance radius600 mm
Upholstery seam gap between adjacent modules2 mm
Bottom non-slip pad thickness5 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total product net weight160 kg
Static load capacity per single seat module150 kg
Maximum recommended simultaneous users8
Seat foam density40 kg/m³
Fabric abrasion resistance (Martindale)50000 cycles
Module connection static shear strength80 kg
Product service life under daily commercial use8 years
Total seating capacity width along outer arc2800 mm
Seat foam compression set rate10%
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Inner structural frameKiln-dried solid pine wood frame, 30mm thick, reinforced at module joints
Seat core paddingHigh-density polyurethane foam, 100mm thick, layered with 20mm soft foam top layer for comfort
Upholstery fabricWoven polyester commercial contract fabric, matte finish, multi-color blocked design
Module connection hardwarePowder-coated steel connecting brackets with recessed mounting points between adjacent segments
Bottom base layer12mm thick plywood base panel supporting the foam and frame, enclosed in matching upholstery
Floor contact pads5mm thick non-slip rubber pads fixed to module base corners
Upholstery stitchingHigh-tenacity polyester thread, 8mm seam pitch along all fabric edges
Color scheme componentsColor-blocked segments in terracotta, light grey, off-white, dark grey, chartreuse yellow, and dark burgundy
End segment back paddingHigh-density polyurethane foam, 80mm thick, contoured to match curved module shape
Module base dust coverNon-woven polypropylene fabric cover stapled to the bottom of each module to enclose internal frame components
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfiguration capabilityAll 8 individual curved segments use standard hidden connectors to allow rearrangement into S-shape, full circle, serpentine or straight linear layouts
Freestanding installationModules require no permanent floor fixing, assembled on flat level indoor floors via friction and inter-module connectors
Partial back support functionTwo elevated end segments provide 200mm high side/back support for end-positioned users, while all other segments are backless for flexible seating direction
Omnidirectional seating accessBackless module design allows users to sit facing inward, outward, or along the curve without fixed orientation
Tool-free assemblyModules connect via pre-installed hook and bracket fasteners that engage without tools for fast on-site setup
Stain-resistant fabric surfaceUpholstery fabric supports spot cleaning with mild upholstery cleaner for daily maintenance in high-traffic areas
Sound absorption functionUpholstered soft surface provides secondary ambient sound absorption to reduce echo in open plan spaces
Individual module mobilityEach seat module weighs 20kg, allowing a single adult to reposition individual segments without assistance during layout changes
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages8
Single carton outer dimensions650 x 650 x 470 mm
Total shipping gross weight192 kg
Total shipment volume (CBM)1.58 CBM
On-site assembly time40 minutes
20ft GP container maximum loading quantity18 sets
40ft HQ container maximum loading quantity46 sets
Standard export packaging material5-layer corrugated carton, 25mm thick EPE foam edge protection, plastic film wrap for moisture resistance
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office open plan collaboration zonesSuitable for informal team meetings, breakout discussions, and casual work breaks, with flexible curved layout to encourage group interaction
Public waiting and reception areasIdeal for corporate lobbies, healthcare waiting rooms, educational institution common areas, and public library lounges, with durable commercial upholstery to withstand high daily foot traffic
Retail and hospitality spacesSuitable for shopping mall rest zones, cafe lounge areas, exhibition hall visitor seating, and hotel lobby seating areas, with multi-color design to match vibrant interior design schemes
Early education and childcare spacesLow 420mm seat height and soft rounded edges are suitable for children's activity areas, with reconfigurable shape to adapt to different group activity layouts
Event and temporary function spacesTool-free reconfiguration allows quick layout changes for pop-up events, conferences, and temporary exhibition seating, with light enough individual modules to be moved by one person
Co-working space common areasFits co-working lounge zones to provide flexible casual seating for members working away from desks, taking short breaks, or holding impromptu meetings
Mixed-use residential amenity spacesSuitable for apartment building common rooms, rooftop lounge areas, and student residence common spaces, with stain-resistant fabric supporting easy maintenance for shared residential use
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 (Furniture - Strength, durability and safety - Non-domestic seating)Applicable European standard for load testing, stability, and durability of contract-grade lounge seating for public and office spaces, recommended for export projects
EN 1021-1:2014 (Upholstered furniture - Ignitability - Smouldering cigarette)Applicable fire safety standard for upholstery material resistance to smouldering ignition, required for public space installations in EU markets
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020 (Lounge and Public Seating)Applicable North American standard for static load, impact, stability, and durability testing of commercial lounge seating, recommended for US market projects
ANSI/BIFMA e3-2019 (Furniture Sustainability Standard)Applicable sustainability standard for material content, emissions, and end-of-life management for commercial furniture projects with LEED requirements
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB 18401-2010 (National general safety technical code for textile products)Applicable safety standard for upholstery fabric formaldehyde content, pH value, and colorfastness for indoor upholstered furniture, required for indoor use
GB/T 3324-2017 (General technical requirements for wooden furniture)Applicable standard for inner wood frame structural strength, moisture content, and finishing safety requirements
GB 20286-2006 (Fire safety requirements for upholstered furniture in public places)Applicable standards and test results require confirmation
Standard Tender Description
This product must meet the following technical requirements:
1. GB 18401-2010 (National general safety technical code for textile products): Applicable safety standard for upholstery fabric formaldehyde content, pH value, and colorfastness for indoor upholstered furniture, required for indoor use;
2. GB/T 3324-2017 (General technical requirements for wooden furniture): Applicable standard for inner wood frame structural strength, moisture content, and finishing safety requirements;
3. GB 20286-2006 (Fire safety requirements for upholstered furniture in public places): Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-CURV-8SEC-LOUNGE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-CURV-8SEC-LOUNGE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-CURV-8SEC-LOUNGEOpen Export Tool

Quick Actions

Post Inquiry

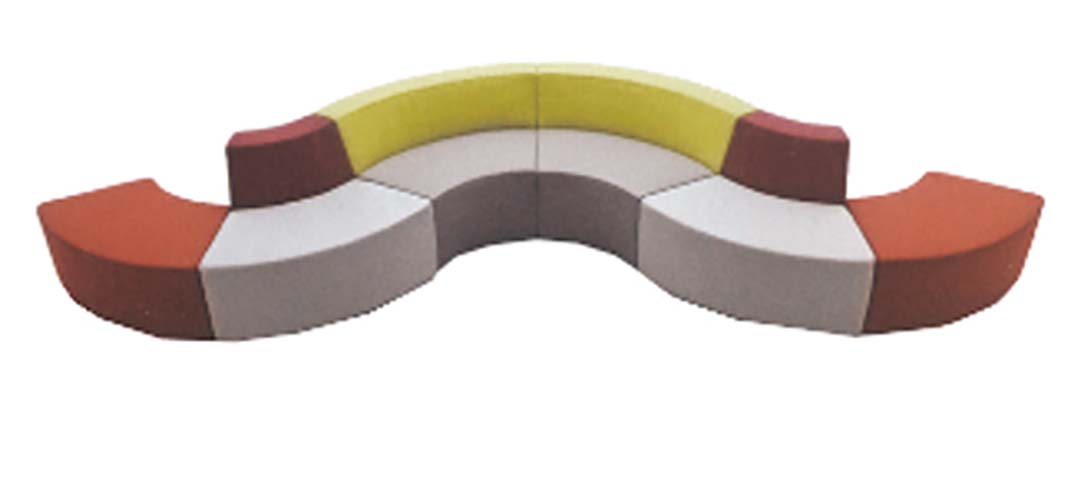

Product Overview & Construction Details

The Modular Curved Multicolor Upholstered Lounge Bench is a flexible contract-grade seating solution designed to balance visual appeal, durability, and adaptive function across shared spaces. Its signature form features 8 connected curved wedge segments anchored by two raised end modules that provide partial back and side support, with minimal, nearly seamless gaps between segments to create a smooth, continuous seating surface. The multi-color blocked upholstery combines terracotta, light grey, off-white, dark grey, chartreuse yellow, and dark burgundy tones for a contemporary, lively aesthetic that complements modern interior palettes, while its arcing layout creates an open central clearance zone suitable for adjacent table placement or pedestrian circulation. Constructed for high-traffic use, the bench is built around a kiln-dried solid pine inner frame with bent plywood support layers, topped with high-density polyurethane foam padding layered with a softer top layer for balanced comfort and long-term shape retention. The entire assembly is wrapped in matte, woven polyester commercial-grade fabric, stitched with high-tenacity thread to resist fraying, and finished with non-slip rubber base pads that prevent sliding and protect floor surfaces. Hidden powder-coated steel brackets connect individual modules, allowing tool-free assembly and reconfiguration: segments can be rearranged into S-shapes, full circles, serpentine runs, or straight linear layouts without permanent floor fixation. The backless core modules support omnidirectional seating, letting users face inward, outward, or along the curve as needed, while the soft upholstered surface offers secondary ambient sound absorption to reduce echo in open interiors. The fabric supports spot cleaning for easy daily maintenance, and each individual module is light enough for a single adult to reposition during layout adjustments. This bench is well suited for a wide range of commercial and shared residential spaces, including office open plan collaboration zones, corporate lobbies, healthcare waiting rooms, educational common areas, public library lounges, shopping mall rest zones, cafe seating areas, exhibition halls, hotel lobbies, early childhood activity spaces, pop-up event venues, co-working common areas, apartment building amenity rooms, and student residence lounges. Its seat height aligns with standard commercial lounge dimensions for extended casual comfort, with a maximum recommended capacity of 8 simultaneous adult users. For procurement planning, note that each module ships in a separate protective carton, with two workers able to complete full assembly in a short on-site window. Buyers should confirm specific material grades, fabric composition, hardware specifications, and color lot consistency via supplier samples prior to final order placement, as some construction details are based on standard category configurations rather than final supplier-measured data. For bulk orders, container loading quantities align with standard export packaging for upholstered furniture, supporting efficient large-scale project fulfillment.
