PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2740 × 2150 × 850 mm
Overall assembled dimensions	2740 x 2150 x 850 mm
Seat height	430 mm
Seat depth	520 mm
Backrest height	420 mm
Single armless seating module width	950 mm
Ottoman module dimensions	950 x 950 x 430 mm
Left boucle chaise module dimensions	950 x 930 x 850 mm
Armrest height	600 mm
Throw pillow size	450 x 450 mm
Leg clearance under sofa base	20 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall static weight capacity	600 kg
Per-seat static load capacity	150 kg
Seat foam density	45 kg/m³
Seat foam thickness	400 mm
Back foam density	30 kg/m³
Fabric abrasion resistance	30000 Martindale cycles
Cushion rebound rate	60%
Net product weight	110 kg
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Inner structural frame	Kiln-dried solid hardwood frame
Red seating surface upholstery	Matte velvet polyester fabric
Left chaise upholstery	White boucle textured woven fabric
Arm/outer back upholstery	Multi-tone woven plaid textile
Central ottoman upholstery	Multicolor abstract patterned woven fabric
Seat support system	Sinuous steel springs with pocket coil core
Cushion fill	High-density polyurethane foam with dacron wrapping
Base feet	Non-slip plastic glide pads
Seam construction	Reinforced stitched seams with 8 mm stitch pitch
Modular connectors	Hidden zinc alloy buckle clips
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Tool-free rearrangement of seating and ottoman units
Tufted cushion support	Button tufting secures fill to prevent shifting
Non-slip base protection	Floor glides prevent movement and protect hard flooring
Seating capacity	Accommodates 4 adults comfortably across modular units
Cushion recovery	Foam cores return to original shape after regular use
Included accessories	5 coordinating decorative throw pillows
Modular joining	Aligned connectors eliminate gaps between connected units
Low-profile lounge positioning	Deep seats support relaxed reclined sitting posture
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Primary lounge seating for open-plan living spaces, configured around a coffee table
Apartment lounge	Compact reconfigurable layout suitable for medium-sized urban apartments
Modern creative space	Eclectic mixed-fabric design fits eclectic, contemporary, or mid-century inspired interiors
Open concept loft	Low-profile silhouette does not block sight lines across large open spaces
Hospitality lounge	Durable construction suitable for boutique hotel or co-working break areas
Casual family space	Deep plush seats support relaxed gathering for family and guests

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture safety standard	EN 12520:2015 Furniture – Strength, durability and safety for domestic seating
Upholstered furniture flammability standard	EN 1021:2014 Upholstered furniture – Ignitability by smouldering cigarette
Furniture surface emission standard	EN 16516:2017 Construction products – Assessment of release of dangerous substances

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Residential sofa safety standard	GB/T 3324General technical requirements for wooden furniture
Upholstered furniture durability standard	GB/T 2012Upholstered furniture: Sofas
Textile fabric safety standard	GB 18401National general safety technical code for textile products

Standardized tender description text

This product must meet the following technical requirements:
1. Residential sofa safety standard: GB/T 3324General technical requirements for wooden furniture;
2. Upholstered furniture durability standard: GB/T 2012Upholstered furniture: Sofas;
3. Textile fabric safety standard: GB 18401National general safety technical code for textile products;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MSEC-4PC-MIX01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MSEC-4PC-MIX01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MSEC-4PC-MIX01Open Export Tool

Quick Actions

Post an RFQ

Product Description

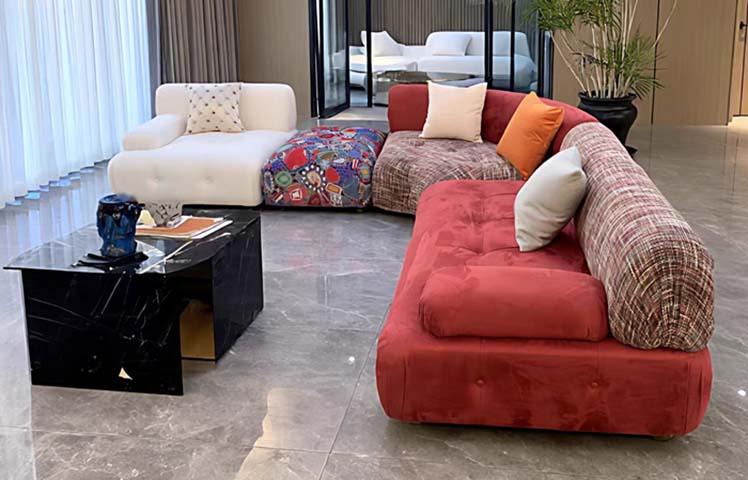

The 4-Piece Mixed Upholstery Modular Sectional Sofa with Ottoman offers a dynamic, curated visual presence through its intentionally mixed fabric palette, combining matte velvet seating surfaces, textured white boucle on the left chaise, multi-tone woven plaid across armrests and outer backs, and a multicolor abstract patterned textile on the central ottoman. Its low-profile silhouette features tufted seat cushions that lend a tailored, lounge-ready aesthetic, with aligned modular connectors that create a seamless, gap-free layout across units once arranged. Built for long-term regular use, the sofa is constructed around a kiln-dried solid hardwood inner frame, with a seat support system of sinuous steel springs paired with pocket coil cores. Seat cushions use high-density polyurethane foam wrapped in dacron, with distinct density ratings for seat and back cushions, held in place by button tufting that prevents fill shifting over time. Reinforced stitched seams join upholstery panels, and non-slip plastic glide pads fitted to the base prevent unwanted movement while protecting hard flooring surfaces. The upholstery delivers robust abrasion resistance, and foam cores are engineered to return to their original shape after regular use. The set includes five coordinating decorative throw pillows as included accessories, and all modules support tool-free reconfiguration to suit changing layout needs, with enough seating space to comfortably accommodate four adults across units. This sectional is well suited to a wide range of residential and light commercial spaces: it serves as primary lounge seating for open-plan residential living rooms arranged around a coffee table, fits medium-sized urban apartment lounges thanks to its adaptable layout, complements eclectic, contemporary or mid-century inspired modern creative spaces, preserves unobstructed sight lines in open concept lofts, holds up to regular use in boutique hotel or co-working hospitality lounges, and supports relaxed, casual gathering for families and invited guests. Procurement teams and residential buyers should note the set ships in two cartons, with a reference assembly time of 40 minutes per set. Planners should account for the full assembled footprint when mapping space layouts, and note the maximum static weight capacity for both overall use and per-seat loads to align with expected usage patterns. The mixed-fabric finish requires coordination with existing interior textile palettes to achieve a cohesive design result.

4-Piece Mixed Upholstery Modular Sectional Sofa with Ottoman Specifications
