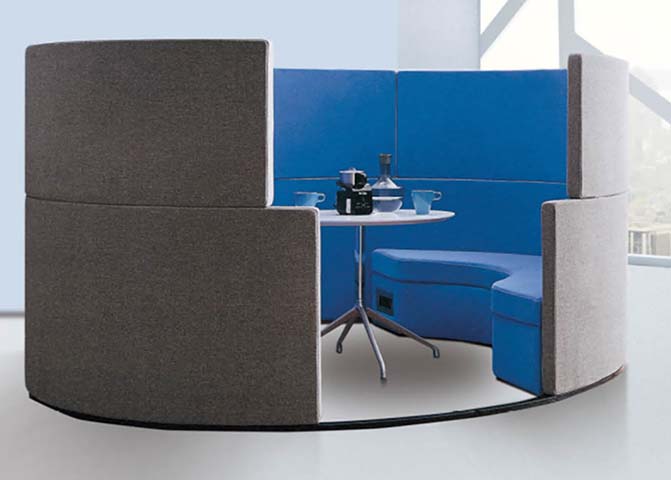

Product supplierSemicircular Semi-Enclosed Acoustic Office Privacy Meeting Booth, Polyester fiber (PET) acoustic felt
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 2700 × 2350 mm | |
|---|---|---|
| Overall footprint dimensions | 3000 x 2700 x 2350 mm | |
| Entry opening width | 900 mm | |
| Banquette seat height | 450 mm | |
| Banquette seat depth | 880 mm | |
| Internal table height | 750 mm | |
| Central round table diameter | 1060 mm | |
| Acoustic panel thickness | 75 mm | |
| Seat cushion thickness | 120 mm | |
| Table base spread diameter | 1000 mm | |
| Internal seat clear height under panels | 2070 mm | |
| Backrest panel height above seat | 1100 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 people | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Speech noise reduction rating | 32 dB | |
| Net weight (complete unit) | 750 kg | |
| Seating upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat foam density | 45 kg/m³ | |
| Internal reverberation time (RT60) | 0.35 s | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer privacy panel core | Polyester fiber (PET) acoustic felt | |
|---|---|---|
| Panel upholstery | Commercial-grade woven polyester fabric | |
| Banquette internal frame | 18mm thick plywood structural frame | |
| Seat cushion filling | High-resilience polyurethane foam | |
| Table top | High-pressure laminate (HPL) surface with PVC edge banding | |
| Table base | Polished chrome-plated steel 4-prong star base | |
| Floor trim | Black PVC edge seal along booth base perimeter | |
| Integrated power housing | Recessed ABS plastic panel mounted in banquette base | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Speech privacy screening | Full-height wraparound panels block seated line of sight and reduce speech transmission | |
|---|---|---|
| Integrated power access | Recessed AC power outlets installed in banquette base for device charging | |
| Fixed integrated seating | Curved built-in banquette follows booth interior radius for permanent group seating | |
| Stable freestanding installation | Floor-placed unit with non-slip base trim, no permanent wall fixing required | |
| Modular panel assembly | Sectional curved panel segments connect via cam-lock fasteners for on-site assembly | |
| Natural passive ventilation | Semi-open entry opening provides continuous air exchange without mechanical fans | |
| Central table positioning | Fixed-height round table centered inside enclosure to face all seating positions | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office collaboration zones | Provides semi-private small meeting space without full room construction | |
|---|---|---|
| Corporate reception waiting areas | Offers enclosed casual seating for guest meetings adjacent to entry points | |
| Co-working space breakout areas | Supports 4-person team huddles or client check-ins in shared work environments | |
| Office pantry adjacent social zones | Creates casual meeting space for informal team discussions over refreshments | |
| Startup agile workspaces | Modular freestanding design allows repositioning as team space needs change |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
