D-702-6

Code：MHHQS4V1
Request supplier quotes

Modular Curved Fabric Ottoman Set with Integrated Side Table Key Specifications 2026-08-02 20:06

Popularity: 2
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

D-702-6

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Single ottoman overall dimensions500 x 500 x 420 mm
Seat cushion thickness100 mm
Integrated side table top diameter380 mm
Table top height from floor500 mm
Single ottoman base footprint width (curved edge)480 mm
Ottoman seat surface curved side arc length720 mm
Split ottoman (table unit) single half width240 mm
Modular combined circular configuration outer diameter1800 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Single ottoman static load capacity120 kg
Single ottoman unit weight7 kg
Set total weight (4 ottomans + 1 table unit)32 kg
Foam density (seat cushion)30 kg/m³
Upholstery abrasion resistance (Martindale)25000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability ReferenceAcceptance target 30000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Ottoman outer upholsteryWoven polyester fabric, solid color finish
Seat and body paddingPolyurethane foam, medium firmness
Internal support framePlywood and solid wood composite frame
Ottoman bottom baseNon-woven fabric dust cover with plastic glides
Side table topWhite high-gloss plastic or MDF with melamine finish
Table support structureMetal or hard plastic bracket mounted to split ottoman frame
Ottoman side fastener/zipper pullMetal zipper pull with plastic tab
Ottoman cover closureMetal zipper with plastic pull tab, full-length side seam installation
Split ottoman gap linerStretch polyester fabric lining, 1mm thickness, bonded to both half-unit edges
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfigurationUnits can be arranged in circular, serpentine or clustered layouts to adapt to different lounge or waiting spaces
Removable upholstery coverSide zipper allows cover removal for cleaning or replacement
Integrated side tableSplit ottoman unit incorporates a fixed round table top for drinks, magazines or small personal items
Space-saving nestingCurved profile allows units to nest together for compact storage when not in use
Floor protectionBase equipped with plastic glides to prevent floor scratching and allow easy repositioning
Multi-unit seating capacity4-unit configuration seats 4 adults when arranged in circular or linear layout
Multi-unit seating support4-unit circular configuration accommodates 4 adults with 500mm seat width per person, suitable for casual short-duration seating
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging unit count (full set)5 cartons
Single ottoman carton dimensions520 x 520 x 440 mm
Single ottoman carton gross weight8 kg
Total set CBM0.6 m³
Assembly time per unit5 minutes
20ft container loading quantity200 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office lobby and waiting areasProvides flexible casual seating for visitors, with integrated table for convenience
Co-working and breakout spacesSupports impromptu group discussions and informal collaboration
Libraries and reading loungesOffers comfortable individual seating that can be clustered for small group reading sessions
Exhibition and event venuesServes as temporary seating that can be quickly rearranged for different event formats
Educational common areasAccommodates student study groups, casual meetings and relaxation
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

BS EN 125202015+A1:2017: Furniture - Seating - Test methods for the determination of stability, strength and durability
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture
GB/T 28202-2011Classification and code of furniture industry products
GB/T 39932-2021Test method for mechanical properties of upholstered furniture seating
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 28202-2011: Classification and code of furniture industry products;
3. GB/T 39932-2021: Test method for mechanical properties of upholstered furniture seating;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · D-702-6

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · D-702-6

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · D-702-6Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

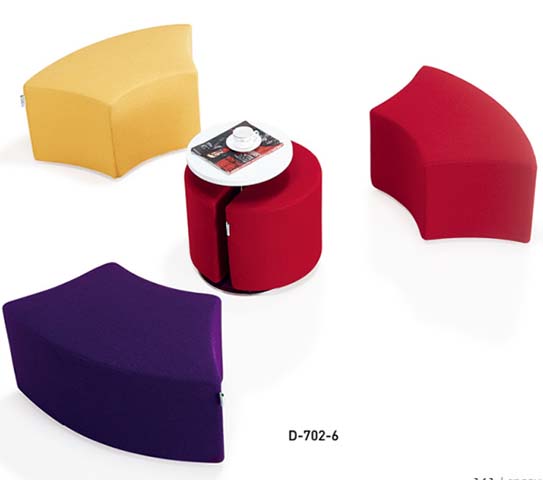

The Modular Curved Fabric Ottoman Set with Integrated Side Table, model D-702, is an unbranded modular ottoman stool set built for flexible seating and functional convenience across shared spaces. Its defining visual form centers on sector-shaped individual ottomans with soft curved profiles, finished in solid-color woven polyester upholstery for a clean, approachable look. Units can be arranged into a full circular layout, or configured into serpentine or clustered formations, with a split ottoman unit housing an integrated round side table that sits at the center of group setups to create a cohesive, organized seating cluster. Construction relies on a wood composite internal frame for structural support, pred with medium-firm polyurethane foam padding and woven polyester upholstery. The integrated side table features a smooth white high-gloss table top, mounted to the split ottoman frame via a support bracket. Each ottoman base includes plastic glides, and full-length side zippers with metal pulls and plastic tabs enable removable upholstery covers, with a stretch polyester fabric lining along the split ottoman gap to protect internal structural components. Practically, the set delivers modular reconfiguration to match changing space needs, with nesting capability for compact storage when units are not in use. The integrated side table provides a stable surface for drinks, magazines, or small personal items, while removable covers simplify cleaning and upholstery replacement. The four-unit configuration seats four adults, with each ottoman supporting a static load of 120 kg. Plastic glides protect flooring and allow smooth repositioning of individual units, while the lightweight build of each piece makes layout adjustments strghtforward. This ottoman set is suited for a wide range of commercial and public spaces. It works well in office lobbies and wting areas, where its flexible layout accommodates irregular floor plans and visitor traffic fluctuations. In co-working and breakout spaces, it supports impromptu collaboration and casual group discussions. It also fits libraries and reading lounges, exhibition and event venues, and educational common areas, where its durable contract-grade fabric holds up to high-traffic use and its adaptable form supports everything from individual relaxation to small group activities. Procurement teams should note that units arrive fully upholstered, with minimal setup required for placement. The full set includes four standard ottomans and one table-integrated ottoman unit. The removable cover design supports long-term mntenance by allowing individual cover replacement instead of full unit refurbishment. For high-volume orders, the modular nesting design helps optimize storage and transportation efficiency, while the commercial-grade fabric and foam specifications align with standard public seating durability requirements.
