Automatic mm / inch conversion · Core engineering specifications

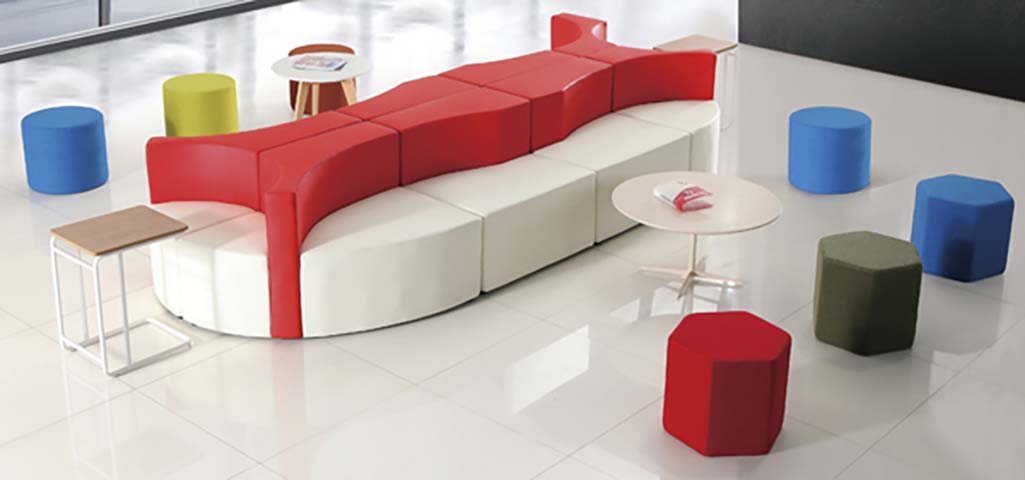

| overall sofa set footprint | 4200 x 1200 x 850 mm | |
|---|---|---|
| single modular seat unit width | 700 mm | |
| seat height from floor | 450 mm | |
| seat depth per unit | 650 mm | |
| backrest height above seat | 400 mm | |
| cylindrical ottoman diameter | 450 mm | |
| cylindrical ottoman height | 450 mm | |
| hexagonal ottoman width (flat to flat) | 420 mm | |
| round side table diameter | 700 mm | |
| rectangular side table top size | 500 x 350 mm | |
| rectangular side table height | 650 mm | |
| round coffee table diameter | 700 mm | |
| round coffee table height | 450 mm | |
| seat cushion thickness | 120 mm | |
| backrest cushion thickness | 100 mm | |
| Finished Seat Cushion Thickness | 90 mm |
Net weight / load capacity / users / durability
| sofa seat static load per unit | 120 kg | |
|---|---|---|
| ottoman static load per unit | 110 kg | |
| total seating capacity (sofa only) | 6 persons | |
| additional seating capacity (ottomans) | 6 persons | |
| sofa net weight range upper limit | 180 kg | |
| ottoman unit weight upper limit | 6 kg | |
| side table static load capacity | 30 kg | |
| ottoman unit weight | 6 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| seat and backrest upholstery | Woven fabric face with soft-touch finish | |
|---|---|---|
| seat and back padding | Polyurethane foam core with layered density | |
| internal seat frame | Engineered wood panel frame with rigid corner blocks | |
| sofa base structure | Plywood bottom panel with plastic glides | |
| cylindrical & hexagonal ottomans | Foam-filled fully upholstered body with fabric cover | |
| round side table base | Polished aluminium four-star pedestal base | |
| rectangular side table frame | White powder-coated steel cantilever frame | |
| table tops | Wood-based composite panel with wood-veneer or laminate finish | |
| modular connectors | Hidden interlocking hardware between seat units | |
| round coffee table base | Polished aluminium four-star pedestal base with flat floor plate | |
| sofa backrest structural shell | Curved engineered wood panel padded with foam under fabric | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| modular reconfiguration | Units can be rearranged into straight, curved or S-shaped layouts using hidden interlocks | |
|---|---|---|
| lounge seating function | Provides semi-enclosed curved seating for informal meetings and waiting areas | |
| ottoman multi-use function | Each stool serves as extra seating, footrest or small side support surface | |
| side table placement options | Narrow cantilever table slides partially under the seat edge for close laptop or drink access | |
| backrest support function | Curved backrest provides lateral and upper-back support along the full seating run | |
| floor protection function | Sofa bases and ottomans use bottom glides to prevent floor scratching during repositioning | |
| table top load surface | Smooth hard table tops support magazines, beverages and portable devices within rated load limits | |
| cantilever side table placement | Narrow U-base side table slides 200 mm partially under the seat edge for close laptop or drink access | |
| backrest lateral support function | 400 mm high curved backrest provides lateral and upper-back support along the full seating run | |
| coffee table load surface | 700 mm diameter smooth hard table top supports magazines, beverages and portable devices within 30 kg load limits | |
| modular connection stability | Hidden interlocking hardware maintains 1 mm maximum gap between adjacent seat units when fully engaged | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions |
Verified carton / gross weight / assembly / loading data
| sofa unit packaging count | 6 cartons | |
|---|---|---|
| ottoman packaging count | 6 cartons | |
| table packaging count | 3 cartons | |
| single sofa unit carton size | 750 x 700 x 500 mm | |
| single sofa unit gross weight | 35 kg | |
| sofa set total volume | 1.6 cbm | |
| full set assembly time | 120 minutes | |
| 20ft container loading quantity | 12 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| office reception and waiting areas | Suitable for corporate lobbies and visitor waiting zones where flexible, visually open seating is required | |
|---|---|---|
| open-plan office collaboration zones | Works as informal breakout seating for team huddles and impromptu discussions in open work environments | |
| educational and campus common areas | Appropriate for student lounges, library reading zones and faculty rest areas with high flexible-use demand | |
| exhibition and event public spaces | Can be deployed in trade show lounges, event VIP areas and gallery rest zones needing temporary but durable seating | |
| co-working and shared workspaces | Supports hybrid work patterns with both individual relaxation and group meeting capability on the same furniture set | |
| hotel lobby and public areas | Suitable for boutique hotel lobbies and resort public lounges requiring modern aesthetic and flexible seating arrangements | |
| healthcare facility waiting zones | Appropriate for hospital outpatient waiting areas and clinic rest zones with moderate traffic demand | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| BS EN 1022 | 2018 Furniture Seating Determination of stability | |
|---|---|---|
| BS EN 1728 | 2014 Furniture Seating Test methods for the determination of strength and durability |
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
