PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 1500 × 740 mm
Overall footprint	3000 x 1500 x 740 mm
Seat height	440 mm
Central backrest divider height	300 mm
Single seat segment width	600 mm
Per-side seat depth	700 mm
Central divider width	100 mm
Support leg height	150 mm
Support leg diameter	12 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seating capacity	10 persons
Per-seat static load capacity	150 kg
Total product weight	180 kg
Fabric Martindale abrasion resistance	50000 cycles
Seat foam density	45 kg/m³
Backrest foam density	30 kg/m³
Foam rebound rate	45 %
Standard warranty period	5 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery fabric	420g/m² woven polyester fabric, light grey
Central divider upholstery fabric	420g/m² woven polyester fabric, olive green
Seat cushion core	45kg/m³ high-resilience polyurethane foam, 80mm thick
Backrest cushion core	30kg/m³ polyurethane foam, 60mm thick
Internal support frame	15mm thick multi-layer plywood, kiln-dried solid wood bracing
Support legs	12mm diameter solid steel, black powder-coated hairpin style
Stitching details	High-strength polyester thread, 8mm seam pitch
Undercarriage bracing	1.2mm thick square steel tube connecting legs
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Inward-facing face-to-face dual-row layout around central divider
Modular assembly	Pre-joined upholstered segments connected with steel bracket fasteners
Leg attachment	Threaded bolt-in leg connection to undercarriage
Surface access	Open perimeter access to all seating positions
Cleaning access	Smooth removable-fabric compatible upholstery surface
Load distribution	16 evenly spaced steel legs along seat perimeter
Static design	Non-reclining, fixed-angle backrest and seat
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office lobby reception areas	Provides high-capacity waiting seating for visitors and guests
Corporate collaboration zones	Supports informal team discussions and impromptu meetings
Public building waiting spaces	Serves hospitals, government halls and transport hubs
University common areas	Offers casual group seating for student gathering and rest
Exhibition and event spaces	Creates dedicated rest and conversation zones in large venues
Co-working space lounge areas	Provides flexible shared seating for members and visitors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Strength, durability and safety for non-domestic seating, Level 2 for high traffic use
EN 1021-1:2014	Upholstered furniture ignition resistance for smouldering cigarette source

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Lounge seating safety and performance standard for public and office spaces

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal plywood frame
GB 20286-2006	Fire retardant performance requirements for public place furniture upholstery
GB/T 1952.1-2012	Test methods for sofas, applicable to strength and durability validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal plywood frame;
2. GB 20286-2006: Fire retardant performance requirements for public place furniture upholstery;
3. GB/T 1952.1-2012: Test methods for sofas, applicable to strength and durability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RCT-LO-3000-OV-GYGN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RCT-LO-3000-OV-GYGN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RCT-LO-3000-OV-GYGNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

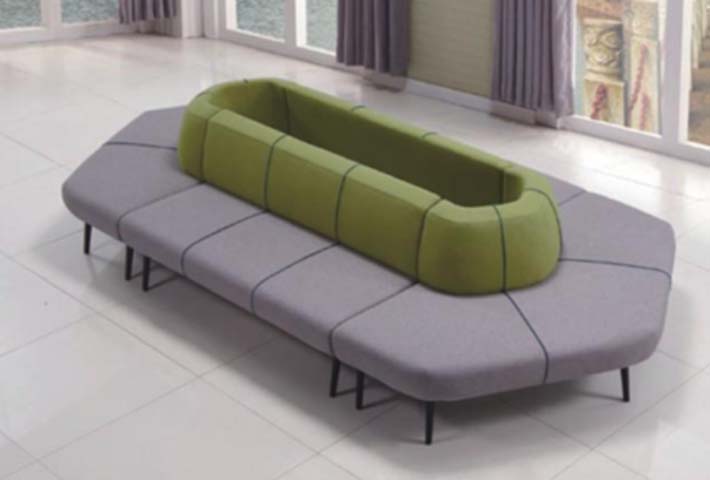

The Modular Face-to-Face Reception Lounge Sofa is a purpose-built public seating solution designed to balance structured visual appeal, durable construction, and high-capacity functionality for high-traffic shared spaces. Its defining visual form features an oblong, dual-row inward-facing layout arranged around a central backrest divider, creating a symmetrical face-to-face seating arrangement with open perimeter access to all positions. The two-tone upholstery pairs light grey woven fabric on seat surfaces with olive green fabric on the central divider, paired with slim black powder-coated hairpin-style steel legs that lend a streamlined, modern aesthetic suited to contemporary public interiors. Each seating segment is sized for individual comfort, with a central divider that offers subtle separation between opposite rows without blocking open sightlines for conversation. Built for heavy commercial use, the sofa’s internal structure relies on a kiln-dried multi-layer plywood frame reinforced with solid wood bracing, connected to an undercarriage of square steel tube bracing that supports 16 evenly spaced steel legs for balanced load distribution. Upholstery uses 420g/m² commercial woven polyester fabric stitched with high-strength polyester thread at a consistent 8mm seam pitch, with a Martindale abrasion rating suited to frequent daily use. Seat cushions are formed from 80mm thick high-resilience polyurethane foam, paired with 60mm thick fixed-angle backrest cushions that provide consistent support without reclining functionality. The sofa accommodates 10 people across its segmented layout, with a smooth upholstery surface compatible with removable-fabric cleaning protocols to simplify maintenance in busy spaces. Assembly uses steel bracket fasteners to join pre-upholstered segments, with bolt-in leg connections that cut on-site setup time to 40 minutes per set, shipped across two cartons for streamlined delivery. This seating solution is ideal for office lobby reception areas supporting visitor waiting, corporate collaboration zones for impromptu team discussions, public building waiting spaces including hospitals, government halls and transport hubs, university common areas for student gatherings, exhibition event rest zones, and co-working space lounge areas. Procurement teams should account for the fixed dual-row footprint when planning space layouts, confirm loading access to accommodate delivered carton dimensions, and note the total installed product weight when coordinating on-site placement and floor loading requirements, as the unit is designed for static, long-term installation rather than frequent reconfiguration.
