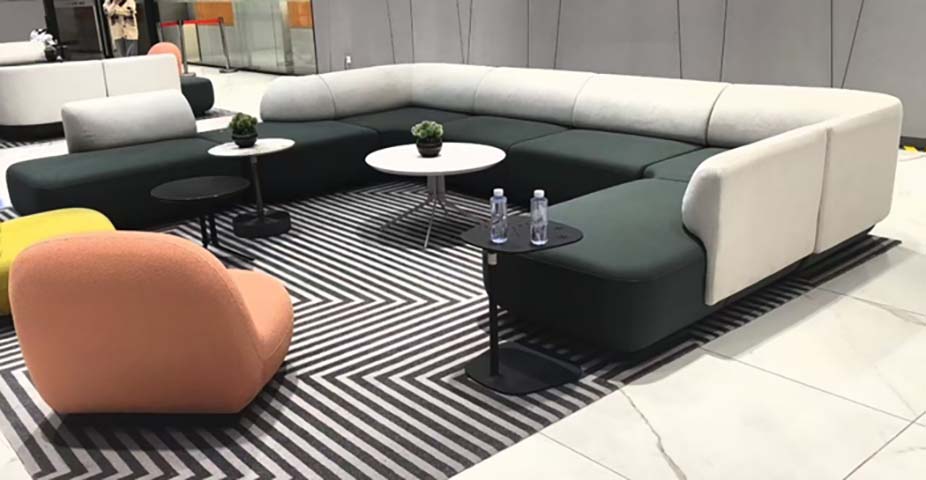

Product supplierL-Shaped Modular Office Lounge Sofa, Dark green woven commercial fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 2800 × 780 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single seat static load capacity | 150 kg | |
|---|---|---|
| Total sofa net weight | 240 kg | |
| Seating capacity | 8 persons | |
| Foam density (seat) | 45 kg/m³ | |
| Foam density (backrest) | 30 kg/m³ | |
| Seam stitch pitch | 8 stitches per inch | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Dark green woven commercial fabric | |
|---|---|---|
| Backrest/arm upholstery | Off-white woven commercial fabric | |
| Seat cushion core | High-resilience polyurethane foam | |
| Backrest cushion core | Soft polyurethane foam wrap | |
| Inner frame | Kiln-dried solid wood + plywood structure | |
| Bottom support base | Powder-coated black metal trim | |
| Module connection hardware | Zinc-plated steel interlocking brackets | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular assembly | Interlocking bracket connection between individual units | |
|---|---|---|
| Low-back lounge support | Curved rounded backrest provides upper back support for relaxed semi-reclined posture | |
| Curved end armrests | Integrated padded armrests at open ends form soft enclosed seating boundaries | |
| Fixed non-reclining seats | All seat and back units are fixed in position with no tilt or recline mechanism | |
| Floor contact design | Low-profile base sits flush to floor with no visible legs | |
| Two-tone color blocking | Contrasting light back and dark seat upholstery creates distinct visual separation | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office lobby waiting areas | Provides multi-seat casual waiting space for visitors and employees | |
|---|---|---|
| Corporate breakout zones | Supports informal collaboration and short rest breaks away from workstations | |
| Co-working common areas | Accommodates flexible group seating for co-working members and guests | |
| Exhibition and event lounges | Durable upholstery withstands high visitor traffic during exhibitions | |
| Healthcare facility waiting spaces | Low easy-clean base and soft edges suit public healthcare waiting areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
