Product supplierCream Upholstered Asymmetrical Curved Sectional Sofa with Black Contrast Piping, 380gsm cream polyester chenille woven fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

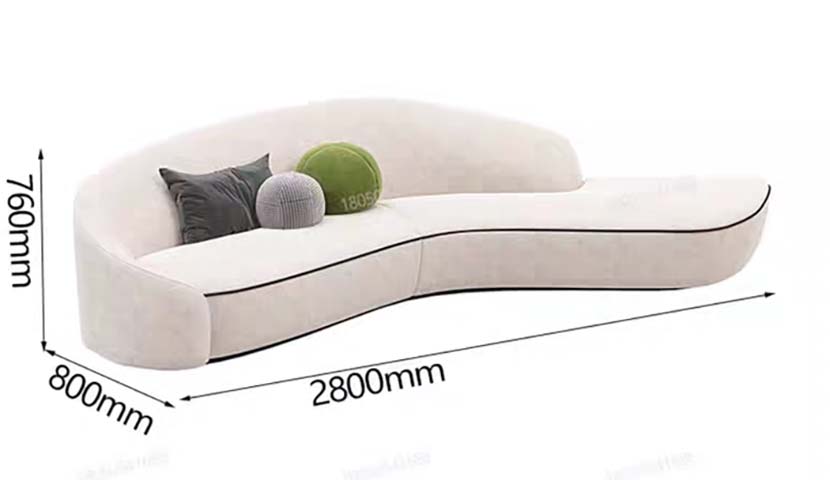

| Overall dimensions (W × D × H) | 2800 × 800 × 760 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Seat depth (usable seating) | 680 mm | |
| Backrest height above seat | 310 mm | |
| Curved backrest section length | 1700 mm | |
| Armless chaise extension length | 1100 mm | |
| Seat cushion thickness | 220 mm | |
| Black piping trim width | 8 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 340 kg | |
|---|---|---|
| Per-seat static weight capacity | 113 kg | |
| Seating capacity | 4 adults | |
| Foam density (seat core) | 38 kg/m³ | |
| Foam rebound rate | 60% | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Product net weight | 85 kg | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 380gsm cream polyester chenille woven fabric | |
|---|---|---|
| Contrast trim | 8mm black PU welt piping | |
| Seat cushion fill | 38kg/m³ high-resilience polyurethane foam | |
| Backrest fill | 30kg/m³ soft polyurethane foam with polyester fiber wrap | |
| Internal frame | 30mm thick kiln-dried solid pine wood frame | |
| Seat support layer | 80mm wide elastic webbing spaced 100mm apart | |
| Base structure | Fully upholstered flush floor base with non-slip fabric bottom | |
| Included throw pillows | 3 decorative pillows with fiber fill, mixed knit and woven covers | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Asymmetrical fixed curved layout with left low backrest and right armless chaise | |
|---|---|---|
| Assembly requirement | No assembly required, ready for use after unpacking | |
| Foam recovery time | 72 hours | |
| Surface maintenance | Spot clean with mild upholstery detergent, removable cushion covers for dry cleaning | |
| Floor protection | Non-slip fabric base prevents scratching hard flooring and sliding during use | |
| Stability design | Low center of gravity, evenly distributed frame supports prevent tipping | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Modern living room | Statement seating for open-concept residential living spaces | |
|---|---|---|
| Office reception area | Guest lounge seating for corporate lobbies and waiting zones | |
| Hotel lobby lounge | Curved feature seating for boutique hotel public areas | |
| High-end retail waiting area | Comfortable seating for premium showroom or boutique customer waiting | |
| Open-plan lounge space | Casual multi-person seating for co-working or breakout zones |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture stability | EN 12520:2015 | |
|---|---|---|
| Upholstery flammability | EN 1021:2014 | |
| Formaldehyde emission | EN 13986:2004 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Lounge seating durability | ANSI/BIFMA X2020 | |
|---|---|---|
| Static load testing | ANSI/BIFMA X5.4 Clause 5 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety | GB/T 3324 | |
|---|---|---|
| Fabric safety | GB 18401Class B | |
| Flammability | GB 20286 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB/T 3324; 2. Fabric safety: GB 18401Class B; 3. Flammability: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
