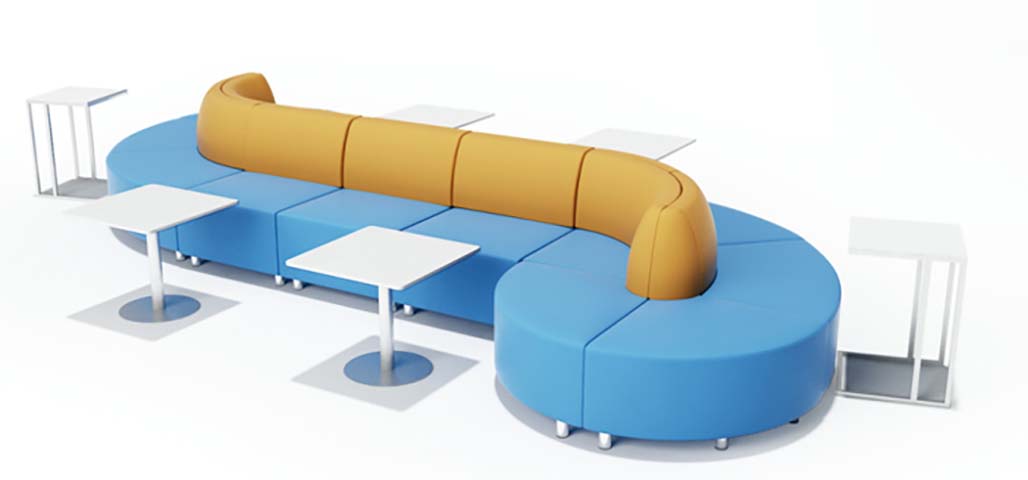

Two-Tone S-Curved Modular Commercial Lounge Sofa with Matching Side Tables (model CURV-SMOD-LOUNGE-08) is listed under Fabric Office Sofa, with overall dimensions of 3600 × 1800 × 740 mm and main material of Fabric. Load capacity: 160 kg. Certifications: modern,design,modular,construction,two-tone,upholstery,commercial,public,seating. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall footprint | 3600 x 1800 x 740 mm | |
|---|---|---|
| seat height | 460 mm | |
| seat depth | 860 mm | |
| backrest height | 320 mm | |
| straight seat module width | 620 mm | |
| end curved seat module diameter | 900 mm | |
| side table top size | 600 x 600 mm | |
| side table height | 460 mm | |
| leveling foot diameter | 30 mm | |
| upholstery foam thickness (seat) | 120 mm | |
| upholstery foam thickness (backrest) | 80 mm | |
| backrest segment width | 620 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| per-seat static load capacity | 160 kg | |
|---|---|---|
| upholstery fabric abrasion resistance | 50000 Martindale cycles | |
| seat foam density | 60 kg/m³ | |
| seat foam rebound rate | 45% | |
| seam stitch pitch | 8 stitches per 30mm | |
| product warranty | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| seat upholstery | Stain-resistant two-way stretch polyester fabric, blue finish, tight upholstered over foam | |
|---|---|---|
| backrest upholstery | Stain-resistant two-way stretch polyester fabric, mustard yellow finish, segmented padded construction | |
| internal frame | 18mm thick multi-layer plywood frame, glued and screwed for structural rigidity | |
| fill material | High resilience polyurethane foam with 20mm top layer of soft dacron wrap for comfort | |
| base supports | Chrome-plated steel cylindrical leveling glides, adjustable height for uneven floors | |
| side table construction | 18mm white matte laminate top, 50mm diameter silver powder-coated steel column, round weighted steel base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular reconfiguration | Individual seat and backrest sections connect via hidden stainless steel base clips to form custom curved layouts | |
|---|---|---|
| seating orientation | Backrest runs only along the inner concave curve, with backless bench seating along the outer convex edge for flexible seating positions | |
| leveling adjustment | Individual foot glides adjust up to 10mm to compensate for uneven floor surfaces for stable placement | |
| adjacent table integration | Free-standing matching side tables position alongside seating modules to provide surface access for every seat zone |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| office breakout zones | Provides semi-enclosed casual seating for informal employee collaboration and break use | |
|---|---|---|
| reception and lobby areas | Creates welcoming sculptural seating for hotel and corporate lobby waiting spaces |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
