Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2100 x 850 x 800 mm | |
|---|---|---|
| Single module width | 700 mm | |
| Seat height | 450 mm | |
| Seat depth | 550 mm | |
| Backrest height | 380 mm | |
| Armrest height | 620 mm | |
| Armrest width | 120 mm | |
| Leg height | 120 mm | |
| Seat cushion thickness | 100 mm | |
| Backrest cushion thickness | 120 mm | |
| Armrest width (front to back) | 120 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Seat static load capacity | 120 kg per seat | |
|---|---|---|
| Net weight range | 90 kg | |
| Suitable seating capacity | 3 adults | |
| Foam density reference | 30 kg/m³ | |
| Fabric abrasion resistance reference | 20000 cycles | |
| Net product weight | 90 kg | |
| Seat foam density | 30 kg/m³ | |
| Backrest foam density | 25 kg/m³ | |
| Fabric Martindale abrasion resistance | 20000 cycles | |
| Seat cushion compression set | 10% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Internal frame | Plywood and solid wood composite frame | |
|---|---|---|
| Seat filling | High-density polyurethane foam with layered structure | |
| Upholstery fabric | Polyester velvet-like woven fabric | |
| Backrest filling | Polyurethane foam with fiber batting top layer | |
| Support legs | Chrome-plated cylindrical steel legs | |
| Base platform | Plywood base with elastic webbing support | |
| Sewing thread | High-strength polyester sewing thread | |
| Module connectors | Plastic or metal interlocking connectors between modules | |
| Seat cushion filling | High-density polyurethane foam with layered soft-hard structure | |
| Backrest cushion filling | Medium-density polyurethane foam with polyester fiber batting top layer | |
| Seat base support | Plywood base platform with elastic webbing grid support | |
| Armrest structure | Plywood inner panel wrapped with foam and upholstery fabric |
Adjustment / rotation / tilt / mobility / storage features
| Modular reconfiguration | 3 independent seat-back modules that can be rearranged or extended with additional matching modules | |
|---|---|---|
| Fixed armrests | Integrated upholstered armrests on left and right end modules with fixed position and height | |

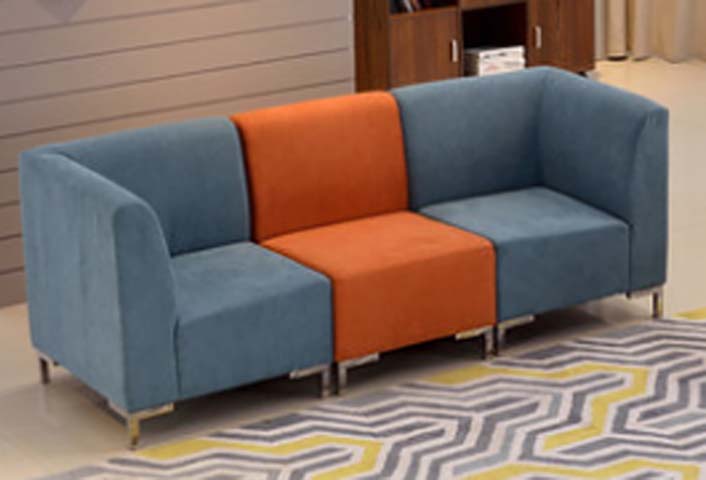

| Color-block visual design | Middle module in orange upholstery, two end modules in blue upholstery for contrasting visual effect | |
| Elevated base for cleaning | 120mm ground clearance under sofa base for robot vacuum access and easy under-sofa cleaning | |
| Removable cushion covers | Zippered upholstery covers on seat and back cushions for removal and cleaning | |
| Non-swivel fixed seat structure | Fixed seat orientation with no rotation, tilt or recline mechanism | |
| Fixed upholstered armrests | Integrated foam-padded armrests on left and right end modules with fixed 620mm height and 120mm width | |
| Under-sofa cleaning access | 120mm ground clearance under entire sofa base to accommodate standard robot vacuum passage and manual cleaning | |
| Cushion cover removal | Zippered upholstery covers on seat and back cushions enabling removal for spot cleaning or replacement | |
| Fixed seat structure | Rigid seat and backrest assembly with no rotation, tilt, recline or folding mechanism | |
| Weight distribution support | Elastic webbing grid base evenly distributes seated load across seat cushion to reduce localized foam compression | |
| Scratch-resistant leg feet | Plastic rubber pads installed at bottom of each steel leg to prevent floor scratching and reduce sliding |
Verified carton / gross weight / assembly / loading data
| Packaging configuration | 3 separate cartons, 1 per module | |
|---|---|---|
| Carton dimensions per module | 750 x 650 x 900 mm | |
| Total gross weight | 105 kg | |
| Total CBM | 1.32 m³ | |
| Assembly time | 30 minutes | |
| 20ft container loading quantity | 24 units | |
| Single carton dimensions | 750 x 650 x 900 mm | |
| Total shipping volume | 1.32 m³ | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Residential living room | Suitable for 20sqm living rooms as primary seating unit, matching contemporary or Nordic interior styles | |
|---|---|---|
| Open-plan lounge areas | Appropriate for apartment open-plan dining-living spaces as a space divider between functional zones | |
| Small office reception | Suitable for 6-person reception areas in creative studios, co-working spaces or small offices | |
| Modular seating system expansion | Can be combined with additional matching modules, ottomans or corner units to create L-shaped or U-shaped seating configurations | |
| Youth apartment and rental housing | Ideal for young residents and rental properties due to modular portability and damage-resistant fabric upholstery | |
| Open-plan lounge zones | Appropriate for open-plan dining-living spaces in 80sqm apartments as a soft space divider between functional zones | |
| Small creative office reception | Suitable for 6-person waiting areas in design studios, co-working spaces or small tech offices | |
| Youth rental housing | Ideal for young professionals and rental properties due to lightweight individual modules and replaceable fabric covers |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
