Automatic mm / inch conversion · Core engineering specifications
| Overall sofa dimensions | 3200 x 900 x 850 mm | |
|---|---|---|
| Seat height | 450 mm | |
| Seat depth | 600 mm | |
| Backrest height | 400 mm | |
| Large side table dimensions | 700 x 550 x 550 mm | |
| Small side table dimensions | 600 x 480 x 520 mm | |
| Ottoman dimensions | 450 x 450 x 400 mm | |
| Throw pillow size | 450 x 450 mm | |
| Sofa armrest height | 600 mm | |
| Table leg diameter | 50 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Sofa maximum static load | 350 kg | |
|---|---|---|
| Ottoman maximum static load | 120 kg | |
| Side table maximum static load | 50 kg | |
| Sofa net weight range upper limit | 85 kg | |
| Ottoman unit weight upper limit | 8 kg | |
| Side table unit weight upper limit | 12 kg | |
| Sofa seating capacity | 4 persons | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Core acceptance fields · Panels / hardware / frame / upholstery
| Sofa outer upholstery | Woven polyester fabric in warm orange finish | |
|---|---|---|
| Sofa seat and back filling | High-resilience polyurethane foam padding | |
| Sofa internal frame | Solid wood and plywood composite frame | |
| Sofa base support | Hidden plastic or wood floor glides | |
| Side table top | White MDF or particle board with melamine finish | |
| Side table legs | Light-colored solid wood with natural finish | |
| Ottoman upholstery | Matching woven polyester fabric in warm orange | |
| Ottoman internal structure | Wooden frame with foam padding | |
| Throw pillow filling | Polyester fiber fill | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features

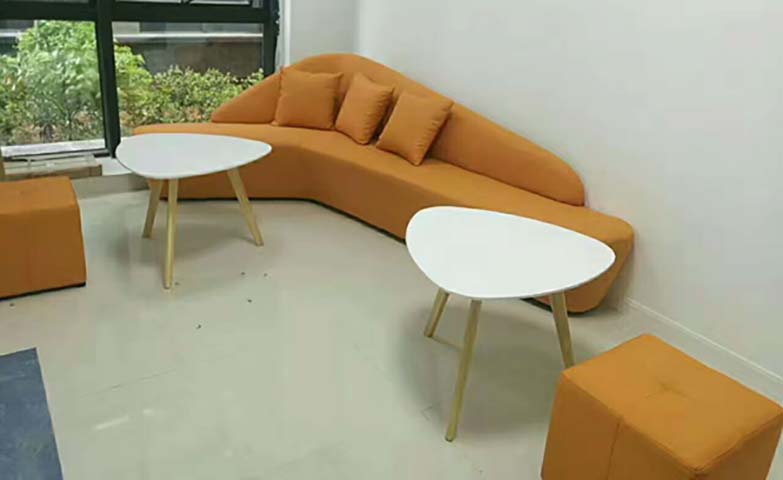

| Curved seating layout | Continuous arc-shaped seating forming a semi-enclosed conversation zone | |
|---|---|---|
| Modular ottoman use | Cube ottomans serve as extra seating, footrests or side table surfaces | |
| Multi-height table configuration | Two different sized tri-oval side tables placed at different positions near the sofa | |
| Decorative pillow support | 3 matching square throw pillows included with the sofa | |
| Low-profile lounge design | Seat height of 450mm with soft upholstered surface | |
| Floor-friendly base | Sofa base with integrated glides | |
| Table leg stability | Three angled tapered wood legs per table form a stable tripod structure | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Sofa packaging configuration | 1 carton, 3300 x 1000 x 700 mm | |
|---|---|---|
| Sofa gross weight upper limit | 95 kg | |
| Sofa volume upper limit | 2.31 CBM | |
| Side table packaging configuration | 2 cartons total, 750 x 600 x 150 mm each | |
| Ottoman packaging configuration | 2 cartons total, 470 x 470 x 420 mm each | |
| Assembly time upper limit | 40 minutes | |
| 20ft container loading quantity upper limit | 12 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
Recommended spaces / users / usage modes
| Office reception and waiting areas | Suitable for corporate lobbies and visitor waiting zones to provide comfortable casual seating for guests | |
|---|---|---|
| Open-plan office relaxation zones | Ideal for staff breakout areas and informal collaboration spaces in modern offices | |
| Lobby and public waiting spaces | Appropriate for hotel lobbies, co-working spaces and public building waiting areas | |
| Modern studio and creative spaces | Fits design studios, media offices and creative workplaces with contemporary interior style | |
| Corner space utilization | Perfect for installation in room corners where linear sofas would leave unused gaps |
EU Market Access Requirements* EN Standards
| Upholstered furniture safety | EN 12520 applicable for strength, durability and safety of seating furniture for domestic use | |
|---|---|---|
| Flammability of upholstery | EN 1021/2 applicable for cigarette and match flame resistance of fabric upholstery |
US and Canada office-furniture standards
| Seating durability | ANSI/BIFMA X2020 applicable for lounge seating performance and durability testing |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety | GB 28007 applicable for formaldehyde emission and flammability requirements of fabric upholstered sofas | |
|---|---|---|
| Wood-based panel formaldehyde | GB/T 39600 applicable for E1 grade formaldehyde emission limit of internal wood panels | |
| Furniture mechanical stability | GB/T 10357.1 applicable for sofa stability, strength and durability testing |
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 28007 applicable for formaldehyde emission and flammability requirements of fabric upholstered sofas; 2. Wood-based panel formaldehyde: GB/T 39600 applicable for E1 grade formaldehyde emission limit of internal wood panels; 3. Furniture mechanical stability: GB/T 10357.1 applicable for sofa stability, strength and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
