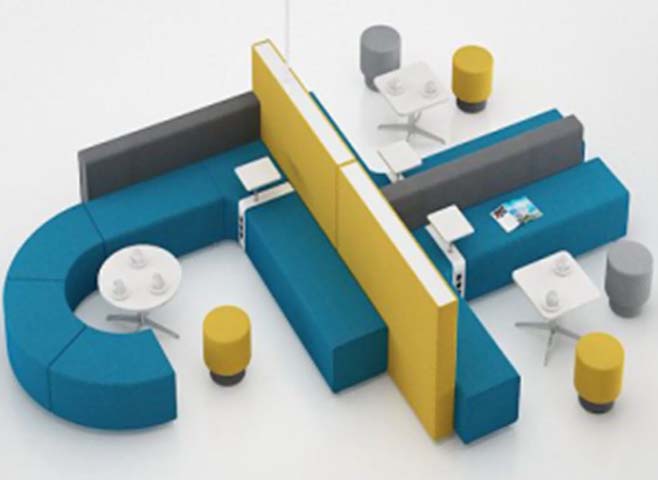

Product supplierModular Collaborative Office Lounge Seating System with Central Privacy Divider, 45 kg/m³ high-resilience cold polyurethane foam
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 3000 × 1400 mm | |
|---|---|---|
| Overall system footprint | 4200 x 3000 x 1400 mm | |
| Seat height | 450 mm | |
| Seat depth per module | 700 mm | |
| Straight bench module width | 1880 mm | |
| Curved C-nook outer radius | 1200 mm | |
| Central privacy divider height | 1400 mm | |
| Integrated side tablet size | 350 x 300 mm | |
| Small round freestanding table diameter | 700 mm | |
| Cylindrical ottoman diameter | 400 mm | |
| Cylindrical ottoman height | 450 mm | |
| Fixed backrest height above seat | 430 mm | |
| Table tabletop height above floor | 550 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended per-seat static load | 160 kg | |
|---|---|---|
| Total seating capacity | 10 people | |
| Tablet work surface static load | 15 kg | |
| Round side table static load | 50 kg | |
| Ottoman static load | 160 kg | |
| Net weight for full configured system | 380 kg | |
| Seating foam density | 45 kg/m³ | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat cushion construction | 45 kg/m³ high-resilience cold polyurethane foam | |
|---|---|---|
| Backrest construction | 35 kg/m³ high-resilience polyurethane foam | |
| Seat/back upholstery | Woven commercial polyester fabric, teal and grey colorway | |
| Central divider construction | Upholstered composite panel over wood frame, yellow fabric finish | |
| Inner bench frame | Solid beech wood joinery with reinforced corner blocks | |
| Integrated tablet work surfaces | White matte high-pressure laminate top with powder-coated steel support | |
| Freestanding table bases | 4-star powder-coated die-cast aluminum base | |
| Ottoman construction | Upholstered high-resilience foam with weighted non-slip polymer base | |
| Seam stitching | Reinforced polyester thread with 8 stitches per inch | |
| Floor protection | Non-marking polymer glides on all bench and table bases | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration support | Interlocking straight and curved bench modules for custom layouts | |
|---|---|---|
| Dual-zone layout | Semi-enclosed C-shaped nook and open linear seating separated by divider | |
| Central privacy divider function | Full-height upholstered panel blocks cross-zone line of sight | |
| Integrated side tablet function | Fixed-position hard surface mounted to bench edge for individual work | |
| Freestanding table placement | Lightweight 4-star tables positioned within seating zones for shared use | |
| Pull-up ottoman use | Cylindrical padded stools moved freely around tables or seating | |
| Under-seat clearance | 10 mm low-profile base clearance for routine floor cleaning | |
| Upholstery maintenance | Stain-repellent fabric finish for spot cleaning in high-traffic offices | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office collaboration zones | Semi-enclosed and open seating for informal team meetings and brainstorming | |
|---|---|---|
| Startup workplace breakout areas | Flexible seating supports casual work, breaks and small group discussions | |
| Corporate campus amenity spaces | Durable commercial-grade upholstery withstands high daily foot traffic | |
| Co-working common areas | Modular layout adapts to changing small group and individual work needs | |
| Education campus informal learning spaces | Mixed seating and tables support project work and peer collaboration | |
| Reception waiting lounge extensions | Comfortable upholstered seating provides relaxed guest waiting space | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13759:2012 | Domestic and contract seating strength and durability test methods | |
|---|---|---|
| EN 1022:2018 | Domestic and contract seating stability test requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Performance standard for lounge seating for commercial office applications | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Performance standard for occasional tables used in office environments | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to inner frame durability | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture | |
| GB/T 19889.3-2005 | Acoustic measurement for airborne sound insulation of interior partitions |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner frame durability; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture; 3. GB/T 19889.3-2005: Acoustic measurement for airborne sound insulation of interior partitions; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
