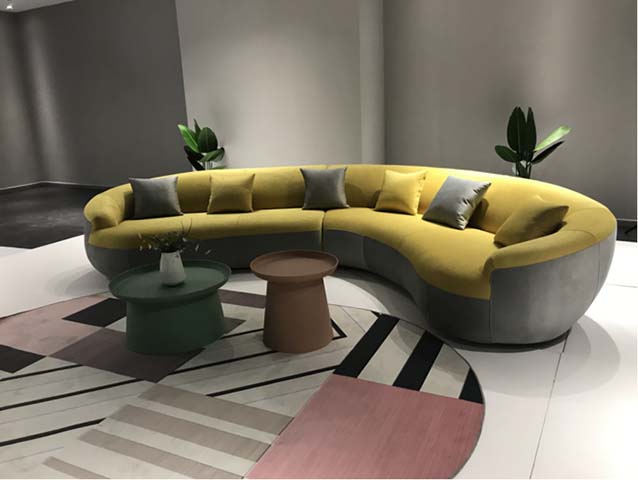

Product supplierTwo-Tone Curved Modular Sectional Sofa, Soft matte chenille fabric in warm yellow
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3380 × 1630 × 760 mm | |
|---|---|---|
| Seat height | 430 mm | |
| Seat depth | 760 mm | |
| Backrest height | 330 mm | |
| Integrated end armrest width | 200 mm | |
| Included throw pillow dimensions | 450 x 450 mm | |
| Base skirt height | 200 mm | |
| Per-seat width | 730 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 295 kg | |
|---|---|---|
| Product net weight | 125 kg | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Upholstery abrasion resistance | 15000 double rubs | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Inner seating/back upholstery | Soft matte chenille fabric in warm yellow | |
|---|---|---|
| Outer base upholstery | Stain-resistant performance fabric in cool grey | |
| Internal support frame | 12mm thick kiln-dried solid hardwood | |
| Seat support system | 80mm wide elastic webbing + sinuous spring base | |
| Seat core padding | 200mm thick high-resilience polyurethane foam | |
| Backrest padding | 120mm thick down-blend soft foam | |
| Throw pillow fill | Blown polyester fiber fill | |
| Base internal structure | Reinforced plywood box frame | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection | Metal bracket locking between curved segments | |
|---|---|---|
| Post-unpacking foam recovery | 72 hours | |
| Seating orientation | Inward-facing curved layout designed for circular conversation spaces | |
| Surface maintenance | Wipe-clean upholstery suitable for regular dusting and spot cleaning | |
| Floating placement | Floor-sitting enclosed base requires no wall mounting | |
| Pillow adjustability | 6 removable throw pillows for custom back support | |
| Weight distribution | Even floor contact across full curved base eliminates leg pressure points | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan residential living rooms | Floating central placement for circular conversation and lounge seating | |
|---|---|---|
| Modern hotel lobby lounge areas | Low-profile organic silhouette for contemporary hospitality waiting spaces | |
| Creative office breakout zones | Comfortable deep seating for informal team collaboration and breaks | |
| Upscale residential club common areas | Multi-seat curved layout supports casual group social gatherings | |
| Circular or rounded room layouts | Organic arc shape fits non-rectangular floor plans without sharp corners | |
| High-end showroom display settings | Two-tone finish serves as a statement seating piece for design exhibitions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Strength, durability and safety requirements for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance (cigarette test) for indoor use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge seating durability and safety standard for public/commercial spaces | |
|---|---|---|
| ANSI/BIFMA M7.1-2019 | Standard test method for VOC emissions from office/lounge furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for indoor air safety | |
| GB/T 19001-2016 | Quality management system guidance for furniture production consistency |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for indoor air safety; 3. GB/T 19001-2016: Quality management system guidance for furniture production consistency; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
