PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3810 × 2490 × 890 mm
Overall set footprint (L-configuration)	3810 x 2490 x 890 mm
Individual armless seat module	660 x 840 x 700 mm
Seat height above floor	457 mm
Seat depth (usable surface)	533 mm
Backrest height above seat	305 mm
Square end ottoman module	864 x 864 x 457 mm
Round orange accent pouf	660 mm diameter x 432 mm height
Included round coffee table	711 mm diameter x 521 mm height
Floor clearance under sofa modules	25 mm
Accent throw pillow size	457 x 457 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight	181 kg
Per-seat static load capacity	159 kg
Seat cushion foam density	45 kg/m³
Seat cushion foam rebound rate	37%
Fabric upholstery weight	285 GSM
Seat spring wire diameter	3.8 mm
Product warranty period	3 years
Available upholstery color options	10
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Sofa upholstery fabric	Woven polyester-linen blend fabric
Seat cushion core	High-resilience polyurethane foam
Back cushion core	Dacron-wrapped polyurethane foam
Accent pillows	Polyester fiber fill with orange woven fabric cover
Internal seating frame	Kiln-dried solid pine wood frame
Seat support system	3.8 mm sinuous steel springs with webbing layer
Module support feet	Matte black hard plastic glide feet
Coffee table tabletop	Matte white engineered stone/laminate panel
Coffee table legs	Polished chrome-plated steel rod legs
Seam construction	Reinforced stitched seams with 30 mm stitch pitch
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Clip-on inter-module connectors for tool-free layout reconfiguration
Cushion design	Removable seat and back cushions with zippered covers
Floor protection	Non-marking plastic glide feet to prevent scratching hard floor surfaces
Layout flexibility	Freely configurable modules to form L-shape, straight line, or separate seating clusters
Multi-purpose use	Ottoman modules function as extra seating, footrests, or temporary side surfaces
Assembly requirement	Knock-down assembly with tool-free module connection, no permanent wall fixing required
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception and lobby areas	Provides configurable guest seating for high-traffic corporate entry spaces
Hospital and healthcare waiting rooms	Durable, easy-to-clean upholstery suitable for constant public use
Hotel lobby and lounge zones	Contemporary low-profile design coordinates with modern hospitality interiors
Co-working space breakout areas	Reconfigurable modules adapt to casual meeting or relaxation space layouts
Public institutional waiting areas	High load capacity and durable construction support frequent daily use
Residential open-plan living rooms	Flexible layout works for casual family seating and small gatherings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1022:2018	Applicable standard for seating stability verification for domestic and contract use
EN 12520:2015	Applicable strength, durability, and safety requirements for contract seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Applicable performance standard for lounge and public area seating durability and safety
ANSI/BIFMA E3-2019	Applicable furniture sustainability standard for material emissions and material efficiency

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements for wooden furniture used in frame construction
GB 18584-2001	Applicable for limit of harmful substances in wooden furniture with interior materials
GB/T 19001-2016	Applicable quality management system guidance for furniture manufacturing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements for wooden furniture used in frame construction;
2. GB 18584-2001: Applicable for limit of harmful substances in wooden furniture with interior materials;
3. GB/T 19001-2016: Applicable quality management system guidance for furniture manufacturing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-LOU-L5-GRY-ORG-TBL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-LOU-L5-GRY-ORG-TBL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-LOU-L5-GRY-ORG-TBLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

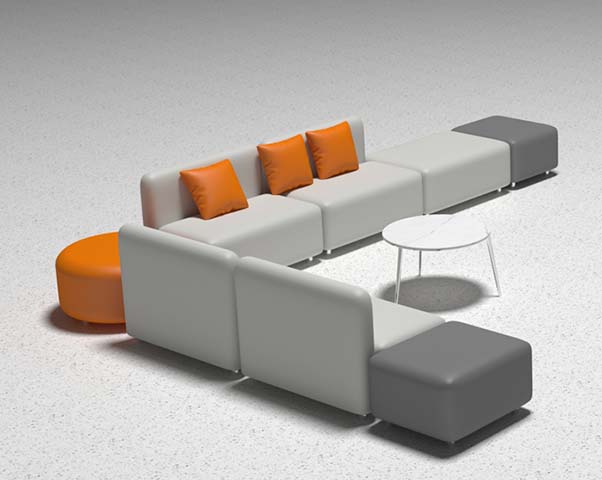

This L-Shaped Modular Sectional Lounge Set with Ottomans and Round Coffee Table delivers a contemporary, blocky low-profile form defined by soft rounded edges and contrasting fabric upholstery, designed to balance approachable comfort with refined public-space appeal. Configured in its standard L-shape, the set occupies a footprint of 3810 x 2490 x 890 mm, combining uniform armless seat modules, square end ottomans, a round orange accent pouf, and a coordinating round coffee table to create a cohesive, inviting seating group. The seating pieces are built on kiln-dried solid pine internal frames, with a support system of 3.8 mm sinuous steel springs layered with webbing, topped with high-resilience 45 kg/m³ polyurethane foam seat cushions offering 37% rebound rate, and Dacron-wrapped polyurethane foam back cushions. All seating is upholstered in 285 GSM woven polyester-linen blend fabric, with removable zippered cushion covers for easy upkeep, and rests on matte black hard plastic non-marking glide feet that protect hard floor surfaces. The included round coffee table features a matte white engineered stone laminate tabletop supported by polished chrome-plated steel rod legs. The set uses clip-on inter-module connectors that enable tool-free layout reconfiguration, allowing users to arrange modules into a straight line, L-shape, or separate seating clusters without permanent wall fixing. Square ottoman modules serve triple duty as extra seating, footrests, or temporary side surfaces, while the matching round orange pouf adds a vivid accent to the neutral grey base upholstery. Each seat supports a static load of 159 kg, and the entire set carries a 3-year product warranty. This lounge set is suited for a wide range of public and semi-public spaces, including high-traffic office reception lobbies, healthcare waiting rooms, hotel lounge zones, co-working space breakout areas, institutional waiting areas, and open-plan residential living rooms, as its durable construction and easy-to-clean fabric hold up to constant daily use, and its understated modern design coordinates with a range of interior styles. For procurement, note that the set ships in 2 cartons, with a total packaged gross weight of 220 kg and a packaging volume of 1.8 cubic meters per item. Knock-down assembly takes 40 minutes per set, with no specialized tools required for module connection. When planning installation, account for layout flexibility to adapt seating to evolving space needs, and leverage the removable cushion design to simplify long-term maintenance in high-use settings.

L-Shaped Modular Sectional Lounge Set with Ottomans and Round Coffee Table Specifications
