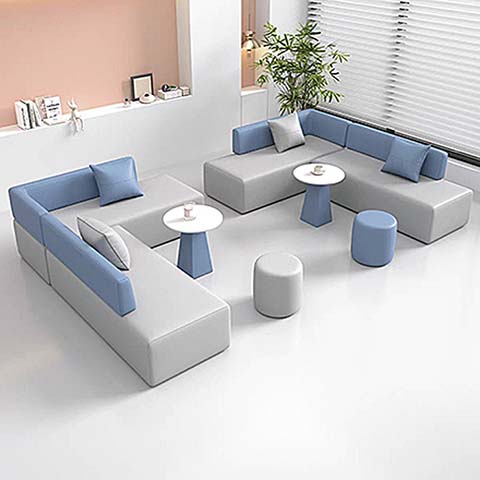

Product supplierModular L-Shaped Lounge Reception Set with Side Tables and Ottomans, 18mm thick engineered plywood frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 2800 × 720 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total seating capacity | 10 persons | |
|---|---|---|
| Single seat static load capacity | 150 kg | |
| Total set net weight | 240 kg | |
| Upholstery abrasion resistance | 30000 double rubs | |
| Recommended warranty period | 3 years | |
| Total standard seating capacity | 10 persons | |
| Cushion compression set resistance | 90% rebound after 25000 compression cycles | |
| Floor glide scratch resistance rating | Zero visible scuff on polished tile after 1000 slide cycles | |
| Recommended commercial warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat frame construction | 18mm thick engineered plywood frame | |
|---|---|---|
| Seat core padding | 40kg/m³ high-resilience polyurethane foam, 80mm thickness | |
| Backrest padding | 30kg/m³ polyurethane foam, 100mm thickness | |
| Seat and back upholstery | Woven polyester fabric, light gray base with dusty blue back cushions | |
| Decorative throw pillows | 200gsm woven polyester cover with 25kg/m³ foam fill | |
| Side table tops | 12mm thick solid composite stone surface, matte white finish | |
| Side table bases | 2mm thick powder-coated steel, tapered column design, dusty blue finish | |
| Ottoman construction | Plywood inner frame, 35kg/m³ foam padding, woven polyester upholstery | |
| Seat base trim | Black PVC edge binding along all module base perimeters | |
| Seat internal frame | 18 mm thick birch engineered plywood, glued and stapled joinery | |
| Side table support bases | 2 mm thick cold-rolled steel, powder-coated dusty blue matte finish, tapered column design | |
| Seat base edge trim | 1 mm thick black PVC edge binding, secured with industrial adhesive |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration flexibility | All seating units connect via hidden under-seat fasteners, support custom layout rearrangement | |
|---|---|---|
| Supplementary seating function | Two cylindrical ottomans provide extra guest seating or footrest support for primary seats | |
| Integrated surface placement | Two round side tables fit in open gaps between L-shaped seating banks for shared drink and item access | |
| Backrest support design | Fixed low backrests align with outer edges of L-shaped layouts, leaving inner corner seating open for flexible use | |
| Non-slip base function | All seating units, tables, and ottomans include non-marking rubber floor glides to prevent sliding and floor damage | |
| Upholstery maintenance feature | Stain-repellent fabric treatment allows spot cleaning with mild detergent without discoloration | |
| Modular layout reconfiguration | All units connect via hidden under-seat steel clips, support 90-degree corner, straight or U-shaped layout rearrangement with no tools | |
| Auxiliary multi-use seating | Two cylindrical ottomans function as either footrests for adjacent seats or temporary guest seating for overflow visitors | |
| Fixed perimeter back support | Low backrests are fixed along outer edges of L-shaped clusters, leaving inner corner seats open to accommodate flexible group conversation orientations | |
| Floor protection stability | All seating, table and ottoman units are fitted with recessed TPR rubber glides to prevent lateral sliding and eliminate scuff damage to hard tile, wood or vinyl flooring | |
| Stain-resistant upholstery maintenance | Polyester fabric is treated with a fluoropolymer stain repellent, allowing spot cleaning of common beverage or food stains with pH-neutral detergent without discoloration | |
| Modular connection stability | Under-seat locking clips prevent accidental separation of joined seating units during normal use, while allowing intentional disconnection for layout changes in under 10 minutes per reconfiguration |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate office reception lobbies | arranged in paired L-clusters to accommodate 10waiting visitors with convenient table access for drinks and materials | |
|---|---|---|
| Co-working space open lounge zones | reconfigured into straight or U-shaped layouts to support casual meetings, solo work breaks or small group discussions | |
| Hotel waiting and lounge areas | placed near check-in zones or elevator lobbies to provide comfortable guest seating with color-matched modern aesthetic | |
| Medical clinic waiting areas | stain-resistant fabric and modular design support easy cleaning and flexible layout adjustment for variable patient volumes | |
| Education institution common areas | installed in student lounges or administrative waiting zones to provide durable, reconfigurable seating for daily high-traffic use | |
| Retail customer rest zones | positioned near store entrances or fitting room areas to provide comfortable seating for waiting shoppers with durable, easy-to-clean surfaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
