| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Full set overall dimensions (2 chairs + center table) | 2400 x 750 x 760 mm | |
|---|---|---|
| Single armchair overall dimensions | 800 x 750 x 760 mm | |
| Center side table overall dimensions | 800 x 600 x 550 mm | |
| Armchair seat height (floor to seat top) | 420 mm | |
| Armchair seat dimensions | 600 x 580 mm | |
| Armchair backrest height (seat top to back top) | 340 mm | |
| Armrest height (floor to arm top) | 600 mm | |
| Table top thickness | 25 mm | |
| Chair leg cross-section dimension | 30 x 30 mm | |
| Table frame leg cross-section dimension | 50 x 50 mm | |
| Minimum knee clearance under table | 480 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Individual armchair net weight | 35 kg | |
|---|---|---|
| Armchair static seat load capacity | 200 kg | |
| Seating capacity of full set | 2 adults | |
| Fabric abrasion resistance (Martindale) | 50000 cycles | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Seam stitching pitch | 8 mm | |
| Product warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Armchair upholstery | Olive green woven polyester fabric | |
|---|---|---|
| Armchair seat padding | High-density polyurethane foam, 100 mm thick | |
| Armchair back padding | Medium-density polyurethane foam, 80 mm thick | |
| Armchair inner frame | Solid kiln-dried hardwood + 15 mm thick plywood structure | |
| Armchair support legs | Brushed chrome-plated square steel tube, 1.2 mm wall thickness | |
| Side table tabletop | 25 mm thick MDF core with walnut wood grain high-pressure laminate finish, PVC edge banding | |
| Side table support frame | Brushed chrome-plated square steel tube, 1.5 mm wall thickness, welded corner joints | |
| Armchair underside dust cover | Black non-woven polypropylene fabric | |
| Table foot glides | Adjustable nylon floor glides | |
| Upholstery stitching | High-tenacity polyester thread, double-stitched on arm edges | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features

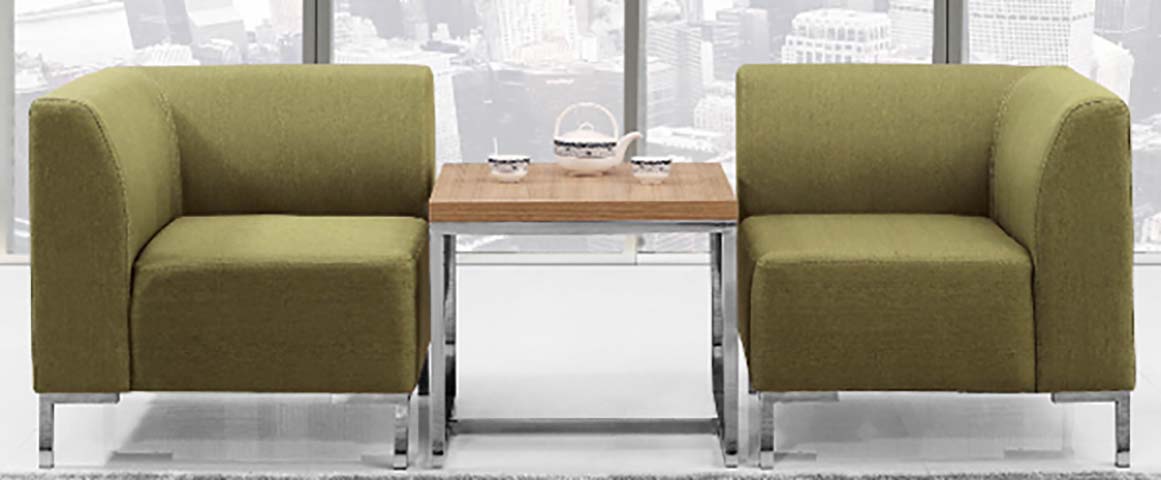

| Chair configuration layout | Two mirrored single-arm chairs with left and right arms respectively, positioned adjacent to a central side table to form a compact two-seat reception nook | |
|---|---|---|
| Floor protection design | Nylon glides at base of all chair and table legs prevent scratching of hard tile, wood or polished stone flooring, allow minor height adjustment for uneven floors | |
| Seating support design | Fixed tight-upholstered seat and back with no recline or adjustment function, provides upright supportive seating for short to medium duration visitor waits | |
| Assembly requirement | Knock-down construction requiring attachment of legs to chair frames and table frame to table top for final assembly | |
| Layout flexibility | Modular individual components can be reconfigured as separate single armchairs, or paired with other matching seating units to form larger reception seating arrangements | |
| Table frame stability | Lower horizontal cross-brace connecting table legs at base increases structural rigidity and prevents racking under load | |
| Upholstery maintenance | Tight woven fabric surface allows dry cleaning and spot cleaning for routine stain removal in high-traffic public areas | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Total number of shipping cartons | 3 | |
|---|---|---|
| Individual chair carton dimensions | 820 x 770 x 450 mm | |
| Table carton dimensions | 820 x 620 x 120 mm | |
| Total shipping gross weight | 115 kg | |
| Total shipping volume (CBM) | 0.63 | |
| Assembly time per full set | 40 minutes | |
| 20ft GP container loading quantity | 62 sets | |
| 40ft HQ container loading quantity | 150 sets | |
| Packaging protection | 5-layer corrugated carton with 20 mm thick EPS foam corner protection, plastic bag wrapping for fabric components to prevent moisture damage | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception areas | Suitable for lobby and visitor waiting spaces, provides compact two-seat seating with central table for guest comfort during short waits | |
|---|---|---|
| Executive office meeting nooks | Suitable for placement near office windows or in corner areas for casual one-on-one meetings between staff and visitors, paired with tabletop for document and beverage placement | |
| Hotel and bank public waiting zones | Suitable for low-to-medium traffic public service areas, durable commercial construction holds up to regular daily guest use, muted olive fabric finish hides minor wear and staining | |
| Co-working space lounge areas | Suitable for small breakout seating areas for informal discussions or individual short-term work sessions, modular design allows rearrangement to match changing space layouts | |
| Healthcare clinic waiting areas | Suitable for general clinic patient waiting areas, easy to clean fabric surfaces and stable fixed seating meets public space safety requirements | |
| Color availability | Available in 4 standard fabric colors: olive green, dark gray, charcoal black, light beige | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 13761:2002 | Furniture - Visitor chairs, applicable to structural safety, stability and durability requirements for non-domestic reception seating | |
|---|---|---|
| EN 15372:2008 | Furniture - Durability requirements for non-domestic tables, applicable to side table load capacity and fatigue performance for public space use | |
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable to chair stability testing to prevent tipping during normal use |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to table top wood composite components for structural safety, dimensional tolerance and finish durability acceptance | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable to fabric and foam material formaldehyde and harmful volatile limits for indoor public space furniture | |
| GB/T 3326-2016 | Test methods for furniture: tables, applicable to side table strength, stability and load test procedures for acceptance | |
| GB/T 3327-2016 | Test methods for furniture: seating furniture, applicable to chair static load, fatigue and stability test procedures for acceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to table top wood composite components for structural safety, dimensional tolerance and finish durability acceptance; 2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable to fabric and foam material formaldehyde and harmful volatile limits for indoor public space furniture; 3. GB/T 3326-2016: Test methods for furniture: tables, applicable to side table strength, stability and load test procedures for acceptance; 4. GB/T 3327-2016: Test methods for furniture: seating furniture, applicable to chair static load, fatigue and stability test procedures for acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
