PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1100 × 1030 × 1300 mm
Seat height from floor	450 mm
Seat cushion width	680 mm
Seat cushion depth	580 mm
Backrest privacy panel height	1150 mm
Integrated side table top dimensions	600 x 300 mm
Side table work surface height	660 mm
Open storage cubby dimensions	300 x 280 x 350 mm
Floor clearance under seat	150 mm
Leg tube size	30 x 30 mm
Privacy panel thickness	80 mm
Seat cushion thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static user load	150 kg
Side table static load capacity	15 kg
Net weight per unit	52 kg
Fabric abrasion resistance (Martindale)	50000 cycles
Seat foam density	45 kg/m³
Back foam density	35 kg/m³
Foam rebound rate	45%
Seam stitch pitch	3 stitches per cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back padding	High-resilience polyurethane foam
Upholstery fabric	Woven polyester contract-grade textile
Internal frame	18 mm thick plywood with steel reinforcement brackets
Leg construction	30x30 mm square steel tube with matte black powder coat
Privacy panel core	High-density acoustic felt core wrapped in foam and fabric
Side table top	18 mm thick black matte laminate on particleboard core
Storage cubby interior	Black melamine-finished particleboard panels
Seat base support	Sinuous steel spring suspension under seat cushion
Back cushion insert	Detachable high-resilience foam cushion with fabric wrap
Foot glides	Non-marking plastic floor glides on each leg
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy surround	Three-sided tall upholstered panels block peripheral visual distraction for focused seating
Integrated work surface	Fixed right-side side table supports laptop placement, drinks and note-taking during use
Open storage	Undertable cubby provides accessible storage for books, notepads and personal items
Fixed base design	Four rigid steel legs provide stable non-swivel, non-reclining fixed seating
Seating orientation	Single-asymmetrical layout places table to the right of seated users for right-hand access
Acoustic performance	Upholstered panels reduce ambient speech distraction in open-plan spaces
Modular arrangement	Units may be placed back-to-back, side-by-side or as standalone seats for zone planning
Assembly requirement	Legs attach to pre-built upholstered body with included hardware for on-site installation
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office focus zones	Provides semi-private seating for individual work, calls, or short breaks away from desks
Library quiet reading areas	Offers enclosed, low-distraction seating for extended reading or study
Lounge and reception waiting areas	Creates comfortable, private waiting seats with space for personal items
Co-working space breakout zones	Supports impromptu individual work or short quiet conversations
Airport and transit lounge zones	Provides personal space and work surface for waiting passengers
Educational institution study lounges	Creates individual quiet study nooks in open campus common areas
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13759:2009	Applicable to strength, durability and safety requirements for contract seating
EN 1022:2018	Applicable to stability testing for domestic and contract seating
EN 13501-1:2018	Applicable to fire reaction classification for upholstered furniture materials

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2022	Applicable to performance and safety requirements for lounge and public area seating
ANSI/BIFMA X7.1-2019	Applicable to formaldehyde emission limits for composite wood furniture components
ANSI/BIFMA e3-2021	Applicable to sustainability evaluation for commercial furniture products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable to general technical requirements for wooden furniture frames and panels
GB 18584-2001	Applicable to limit of formaldehyde emission for indoor wooden furniture components
GB/T 19889.3-2005	Applicable to acoustic insulation performance testing for indoor partitions
GB 20286-2006	Applicable to fire-retardant requirements for upholstered furniture in public spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable to general technical requirements for wooden furniture frames and panels;
2. GB 18584-2001: Applicable to limit of formaldehyde emission for indoor wooden furniture components;
3. GB/T 19889.3-2005: Applicable to acoustic insulation performance testing for indoor partitions;
4. GB 20286-2006: Applicable to fire-retardant requirements for upholstered furniture in public spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · APL-ST1100

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · APL-ST1100

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · APL-ST1100Open Export Tool

Quick Actions

Post an RFQ

Product Description

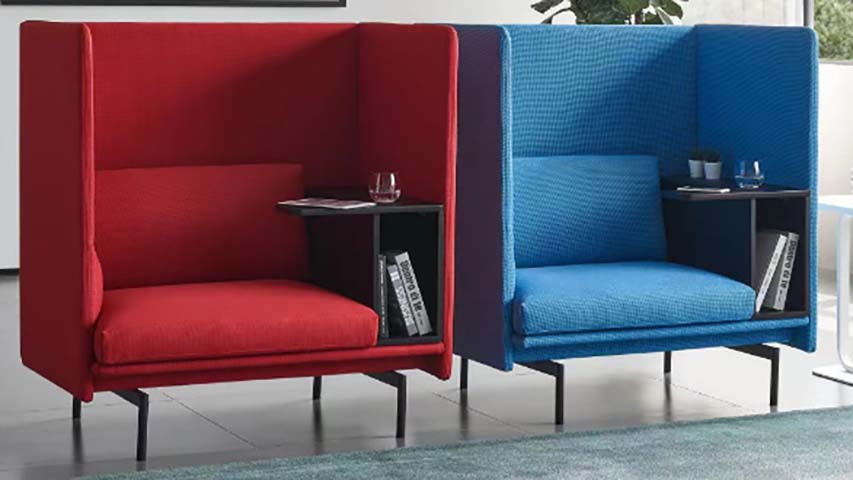

The APL-ST1100 single-seat acoustic privacy lounge chair is an unbranded contract-grade seating solution designed for semi-private individual use in shared public and commercial spaces, balancing functional support with intentional privacy features. Visually, it features a modern, streamlined form defined by three-sided tall upholstered privacy surround panels that create an enclosed seating nook, paired with an asymmetrical layout that positions a fixed integrated side table to the right of the seated user for right-hand access. Elevated on 30x30 mm square matte black powder-coated steel legs, the chair’s clean, cohesive upholstered finish blends seamlessly into contemporary public interiors without visual clutter. Constructed for durable high-traffic use, the chair’s inner frame uses 18 mm thick plywood reinforced with steel brackets, supported by sinuous steel spring suspension under the seat. Seat padding consists of 45 kg/m³ high-resilience polyurethane foam paired with a detachable 35 kg/m³ foam back cushion wrapped in matching fabric, upholstered in contract-grade woven polyester fabric rated for 50000 Martindale abrasion cycles. The privacy panels feature a high-density acoustic felt core wrapped in foam and matching upholstery, while the integrated side table uses an 18 mm thick black matte laminate top over a particleboard core, with an open under-table storage cubby lined with black melamine-finished particleboard panels. Functionally, the three-sided surround blocks peripheral visual distractions, while the upholstered panels reduce ambient speech disruption to support focused activity. The fixed 660 mm high side table supports laptop use, beverages, and note-taking, while the open cubby offers accessible storage for books, notepads, and personal items. The fixed, non-swivel, non-reclining base provides stable seating with a 150 kg recommended static user load, and the side table supports up to 15 kg of static weight. Units can be arranged standalone, back-to-back, or side-by-side for flexible space zoning. This chair is suited for open-plan office focus zones, library quiet reading areas, reception waiting spaces, co-working breakout zones, airport transit lounges, and educational institution study lounges. For procurement, note each unit ships in two cartons, requires 40 minutes of assembly per set, and has a net weight of 52 kg per unit. Fixed right-side table orientation should be confirmed to align with space layout needs, and modular placement plans can leverage available configuration flexibility for custom zone design.

Single-Seat Acoustic Privacy Lounge Chair with Integrated Side Table and Open Storage Cubby Specifications
