PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

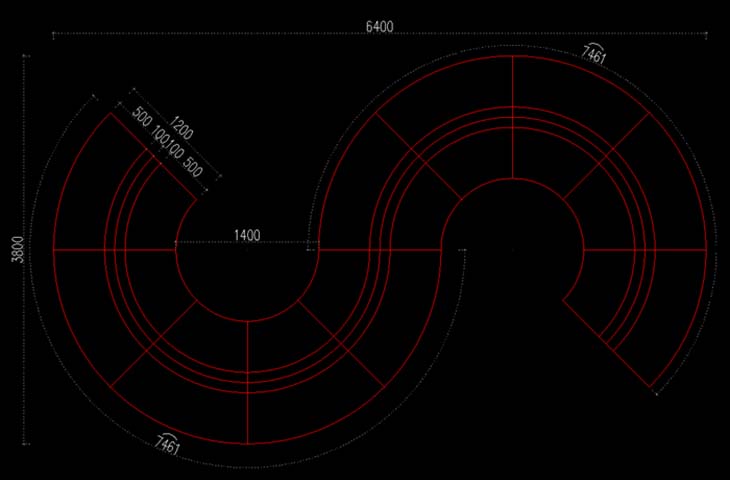

Overall dimensions (W × D × H)	6400 × 3800 × 1150 mm
Overall footprint	6400 x 3800 x 1150 mm
Staff work surface height	750 mm
Visitor counter top height	1150 mm
Staff work surface depth	500 mm
Visitor overhang counter depth	500 mm
Modesty panel thickness	100 mm
Service gap width between panels	100 mm
Central entry indent width	1400 mm
Outer end segment arc length	7461 mm
Short straight work segment length	1200 mm
Worktop thickness	40 mm
Steel support spacing	1200 mm
Kick plate height	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	250 kg
Drawer slide load rating	45 kg
Drawer slide cycle rating	50000 cycles
Recommended seated staff capacity	6 people
Total assembled product weight	1500 kg
Steel frame salt spray resistance	72 hours
Formaldehyde emission level	0.05 mg/m³
Surface scratch resistance	3H
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal support frame	30x30x3 mm galvanized square steel tube
Structural substrate	18 mm fire-treated E0 grade plywood
Staff work surface finish	40 mm wear-resistant high-pressure laminate
Visitor counter top	18 mm acrylic solid surface
Modesty panel core	18 mm MDF with matte paint finish
Base kick plate	1.5 mm brushed stainless steel
Adjustable foot pads	12 mm diameter nylon with steel threaded stem
Drawer hardware	Cold-rolled steel ball-bearing slides
Cable grommets	80 mm diameter ABS plastic with brush seal
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular segmented assembly	Curved and straight sections connect with steel corner brackets
Dual-height counter design	750mm seated staff surface + 1150mm standing visitor surface
Integrated cable management	Internal trunking with 80mm grommets every 1200mm
Adjustable floor leveling	15mm vertical adjustment range on foot pads
Optional integrated storage	Lockable drawer pedestals fit under staff work surface
Custom logo embedding	Recessed logo mountable on visitor counter face
Optional LED accent lighting	Strip lighting mountable under visitor counter overhang
Modular expandability	Sections connect to extend counter length for larger spaces
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	12 packages
Largest single carton dimensions	2000 x 700 x 200 mm
Total shipping gross weight	1650 kg
Total shipping volume	3.36 CBM
On-site assembly time	16 hours
20ft container loading capacity	1 set
Recommended packaging protection	Wooden crating for solid surface segments
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large corporate office lobbies	Serves as branded central reception point for multi-story commercial headquarters
Hotel and resort entry areas	Provides multi-station check-in and guest transaction space for high foot traffic
Large medical and clinic facilities	Accommodates multiple check-in staff while separating public and work zones
Government service centers	Supports multiple public service windows with secure staff work areas
Premium retail and showroom entrances	Delivers high-impact brand presence with customer transaction counter space
Convention and event centers	Provides modular, scalable registration counter for large event attendee check-in

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2016	Office work tables safety and strength requirements, applicable to staff work surface
EN 13722:2004	Furniture strength and durability for reception counters, applicable to structural testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance
ANSI/BIFMA e3-2019	Furniture sustainability standard for material emissions and environmental impact

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to substrate materials
GB 20286-2006	Fire performance requirements for public place furniture, applicable to high-traffic lobbies

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to substrate materials;
3. GB 20286-2006: Fire performance requirements for public place furniture, applicable to high-traffic lobbies;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RCV-S6400-3800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RCV-S6400-3800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RCV-S6400-3800Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Modular Double-S Curve Serpentine Commercial Reception Desk (model RCV-S6400unbranded) is a purpose-built front counter designed to serve as a polished, high-capacity focal point for high-traffic commercial entry spaces. Its distinctive flowing double-S serpentine layout creates an organic, welcoming silhouette that softens large lobby volumes, with a 1400mm wide central entry indent for clear staff access between public visitor zones and internal work areas, paired with a 100mm wide service gap between panels to support smooth transaction flow. The unit has an overall footprint of 6400 x 3800 x 1150 mm, with a dual-height design pairing a 750mm tall seated staff work surface and 1150mm tall standing visitor counter, each with 500mm depth, and 100mm thick modesty panels to obscure work areas from public view. Constructed for long-term commercial use, the desk is built on an internal frame of 30x30x3mm galvanized square steel tube, with a base made of powder-coated metal and 1.5mm brushed stainless steel kick plates. The structural core uses 18mm fire-treated E0 grade plywood, with a formaldehyde emission level of 0.05 mg/m³. The staff work surface features a 40mm wear-resistant high-pressure laminate finish, the visitor counter uses 18mm acrylic solid surface, and modesty panels have an 18mm MDF core with matte paint finish. Adjustable 12mm diameter nylon foot pads with steel threaded stems offer 15mm of vertical adjustment to level the unit on uneven floors. The worktop supports a 250kg static load, with cold-rolled steel ball-bearing drawer slides rated for 45kg load capacity and 50000 open-close cycles; the steel frame delivers 72 hours of salt spray resistance for durability in variable conditions. Functional design elements support daily front-of-house operations: modular curved and straight sections connect via steel corner brackets for simplified installation. Integrated internal cable trunking includes 80mm ABS brush-seal grommets positioned every 1200mm to keep work surfaces free of cord clutter. Optional add-ons include lockable under-desk drawer pedestals for secure storage, recessed custom logo mounting on the visitor counter face, and LED accent strip lighting fitted under the counter overhang to boost ambient visual appeal. The desk supports 6 seated staff, creating clear separation between public and work zones. This reception desk is ideal for large corporate office lobbies as a branded central welcome point for multi-story headquarters, high-foot-traffic hotel and resort entry areas for multi-station check-in, large medical and clinic facilities for patient check-in, government service centers for public service windows, premium retail and showroom entrances for high-impact brand presence, and convention centers for scalable event registration. For procurement planning, note the unit is delivered in 12 shipping packages, with a total shipping gross weight of 1650 kg and total shipping volume of 3.36 CBM; the largest single carton measures 2000 x 700 x 200 mm, one unit fits in a 20ft container, on-site assembly takes 16 hours, and the total assembled product weight is 1500 kg.

Modular Double-S Curve Serpentine Commercial Reception Desk Specifications
